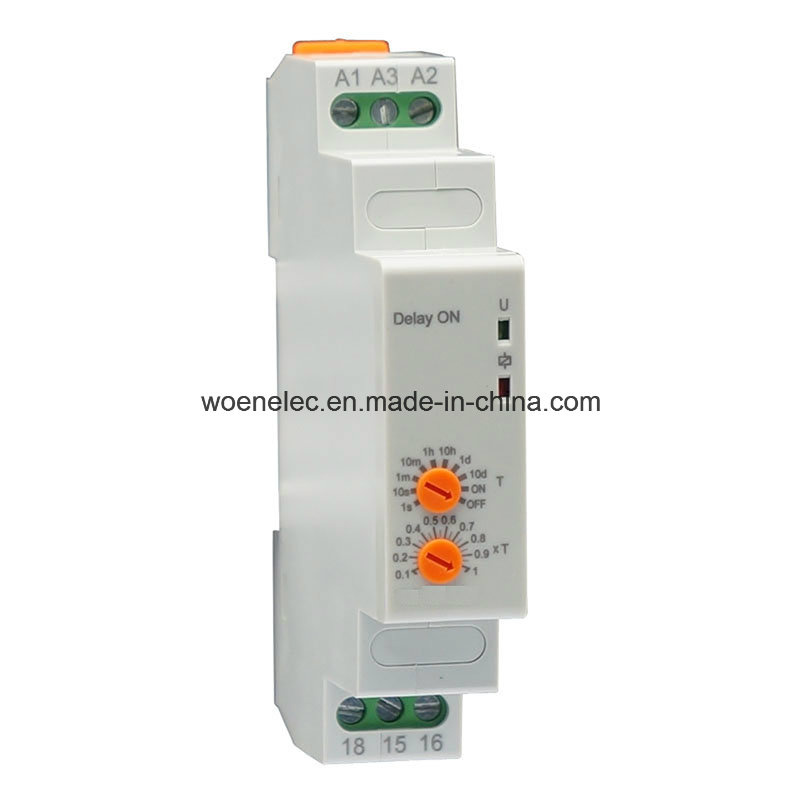

on Delay Time Relay

Name: on Delay Time Relay
Brand: all-electronics-online.com
SKU: 714039982
Availability: InStock
Rating: 4.5 (42 reviews)

Price:	US $ 3/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Feature
1. 1module DIN rail housing
2. ON delay
3. Repeat accuracy ≤0.2%
4. 10 selectable time range
5. Fine adjustment of selected time range
6. Green LED indication for supply/timing status
7. Red LED indication for relay status
8. Conforms to IEC 61812

Technical data

Model	TR/OD12	TR/OD14	TR/OD23
Supply terminals	A1,A2,A3	A1,A2
Supply voltage	A1-A2 AC220V A3-A2 AC/DC24V	AC/DC 12-240V	AC/DC 24-240V
Rated frequency	50/60Hz
Time range	0.1s-100days
setting accuracy	≤5%
Repetition accuracy	≤0.2%
Output contacts	1C/O		2 C/O
Current rating	8A/AC1
Contacts capacity	AC-15: 2A
Insulation voltage	250V
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Prod Model:	TR/OD12

Founded by engineers who worked in the field of electronic, mechanical and industrial design for over 10 several years, Reletek is a professional manufacturer of electronic modular devices, which bring new possibilities for home and office controlling, monitoring and security, as well as for industrial process control.

Development and modern technology are the pillars of our work, which is highly appreciated by our customers, because all products and services can be customized according to individual requirements - you get not just a product, but a long-term solution.

Thanks to high quality production and service on customers, Reletek had partners from Spain, Australia, Russia, Ukraine, Algeria and Egypt etc.
