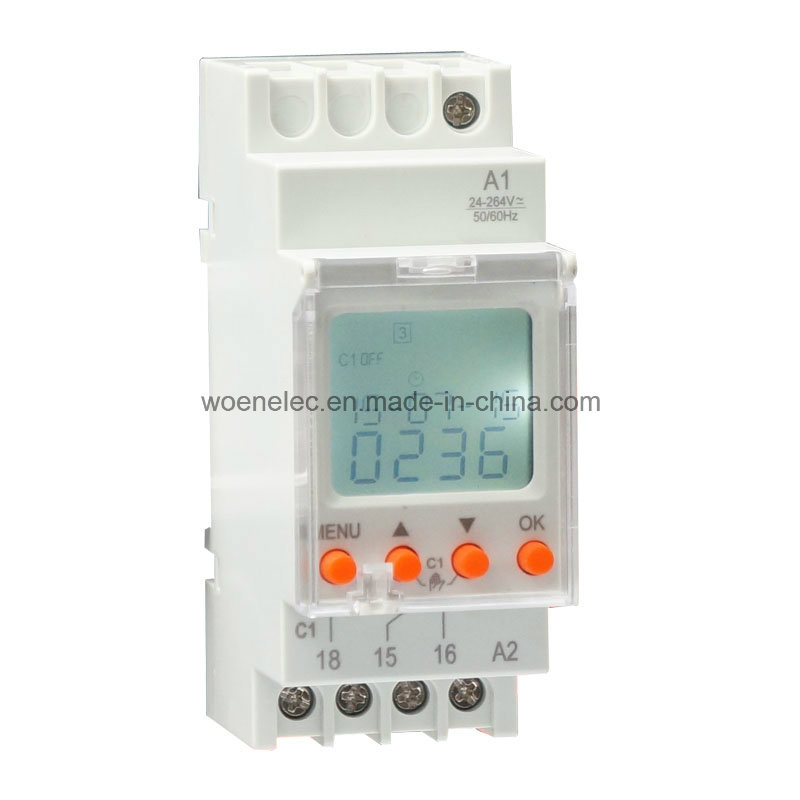

Single Channel Digital Weekly Time Switch

Name: Single Channel Digital Weekly Time Switch
Brand: all-electronics-online.com
SKU: 714333492
Availability: InStock
Rating: 4.4 (64 reviews)

Price:	US $ 4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

General
Digital weekly time switches are designed for time functions execution in automatics and control systems. It controls the output relay in dependence of program settings (week,day, hour). The device is configurated with some additional functions, among other things the random function that is used for the operating mode changing by means of an external pushbutton. It is possible to mount the device on TH 35 rail and seal it if needed. A simple menu layout and an ergonomic keyboard enable easy and intuitive unit operating. The construction of the system guarantees supporting of all the settings with battery energy when the electric power supply is off.

Features
1.Digital time switch with weekly program
2.3years power reserve(lithium battery)
3.40 programs
4.sealable cover of the front panel, easy setting by 4 keys
5.Automatic summer/winter time switchover
6.LCD display
7.Holiday mode
8.Manual control by keys combination
9.Automatic transfer of weekdays
10.2 modules DIN-Rail mounting

Technical data

Model	DTS-1001E	DTS-1001
Supply terminals	L-N	A1-A2
Rated voltage	AC220-240V ±10%	AC/DC 24-264V ±10%
Rated frequency	50/60Hz
Power consumption	1W
Number of programs	40
Program	Weekly program, daily program
Mode of work	Manual,automatic, holiday
Summer/winter time	Off, automatic
Time tolerance	≤1s/day at 25ºC
Power reserve	3 year	10 year
Data readout	LCD display	Backlighted LCD display
Number of contacts	1 C/O
Current of contacts	16A/250V AC1
Switching capacity	4000VA/AC1,384W/DC
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail
Standard	EN60730-1/EN60730-2-7

Prod Model:	DTS-1001
