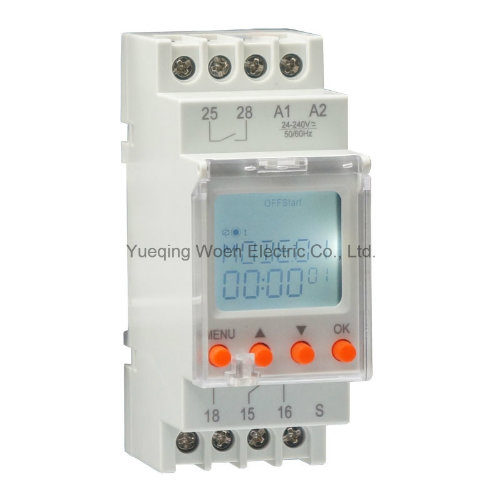

Digital Multifunction Time Relay

Digital Multifunction Time Relay
Price: US $ 11.5/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Western Union,Money Gram
Prod Model: TR/TMS1

Product Description


Features

1. 2 module DIN rail housing
2. LCD display operating mode, set delay and operating time
3. 24 operating modes
4. Time range: 0-9999s and 0-9999min
5. AC/DC 24-240V supply voltage
6 1C/O + 1NO contacts
7. Backlighted LCD display
8. Easy setting by keys

Technical data
Supply terminalsA1,A2
Pulse terminalS
Supply voltage AC/DC 24-240V
Rated frequency50/60Hz
Time range0-9999s, 0-9999min
Repetition accuracyMax. 3s/24h
Data readoutBacklighted LCD display
Data storage10 year
Output contacts1C/O + 1NO
Current rating8A/AC1
Contacts capacityAC-15: 2A
Insulation voltage250V
Mechanical life10000000
Electrical life1000000
Protection degreeIP20
Pollution degree3
Altitude≤2000m
MountingTH-35 Rail
