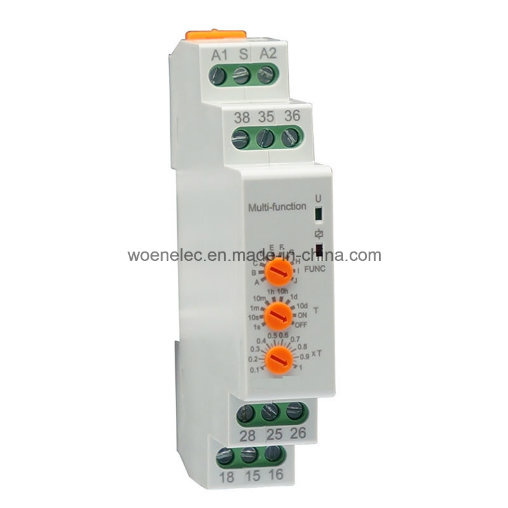

Multifunctional Time Relay

Name: Multifunctional Time Relay
Brand: all-electronics-online.com
SKU: 714042462
Availability: InStock
Rating: 4.8 (42 reviews)

Price:	US $ 8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Features
1. 1 module DIN rail housing
2. 10 selectable functions
3. 10 selectable time ranges
4. Fine adjustment of selectable time range
5 2C/O or 3C/O output contact-8A
6. Green LED indication for supply status
7. Red LED indication for relay status
8. Conforms to IEC 61812Technical data

Model	TR/TM11	TR/TM12
Supply terminals	A1,A2
Pulse terminal	S
Supply voltage	AC220V	A1-A2 AC220V ; A3-A2 AC/DC24V
Rated frequency	50/60Hz
Time range	0.1s-10days
setting accuracy	≤5%
Repetition accuracy	≤0.2%
Output contacts	1C/O
Current rating	8A/AC1
Contacts capacity	AC-15: 2A
Insulation voltage	250V
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail

Prod Model:	TR/TM33
