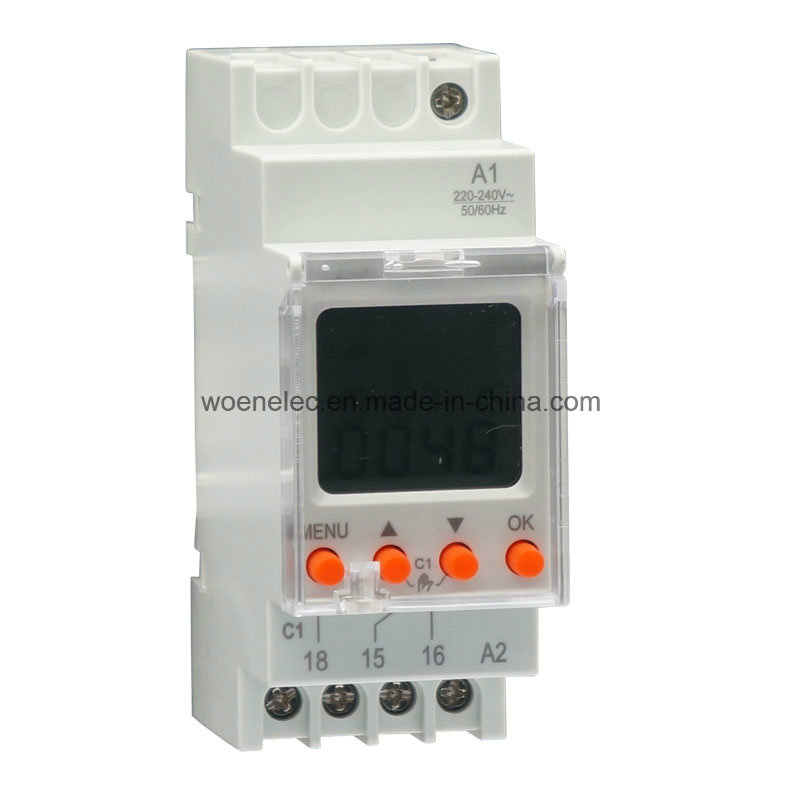

Single Channel Astronomical Time Switch

Name: Single Channel Astronomical Time Switch
Brand: all-electronics-online.com
SKU: 714333582
Availability: InStock
Rating: 4.6 (29 reviews)

Price:	US $ 4.8/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

General
Digital astronomical time switches are intended for realization of time functions in the systems of automatics and steering. Switching on/ off the appliance is connected with sunrise and sunset (dawn an dusk). The information about geographic coordinates, the place of the clocks installation, current date and a shift in relation to the universal time - all these factors are used in order to calculate the time of sunrise and sunset. The system calculates the end of civil dusk. The system additionally has a function of a programmed night break and an ability of shifting the calculated time of sunrise and sunset within a range of +/- 120 min. The construction of a casing makes it possible to install the system on a rail TH 35 and possible sealing the appliance with lead. The construction of the system guarantees supporting of all the settings with battery energy when the electric power supply is off.

Features
1.Digital time switch with astronomical program
2.10years power reserve(lithium battery)
3.sealable cover of the front panel, easy setting by 4 keys
4.Automatic summer/winter time switchover
5.LCD display
6.Holiday mode
7.Manual control by keys combination
8.Automatic transfer of weekdays
9.2 modules DIN-Rail mounting

Technical data

Model	DTS-1003E	DTS-1003
Supply terminals	L-N	A1-A2
Rated voltage	AC220-240V ±10%	AC/DC 24-264V ±10%
Rated frequency	50/60Hz
Power consumption	1W
Program	astronomical
Mode of work	Manual,automatic, holiday
Summer/winter time	Off, automatic transfer
Time tolerance	≤1s/day at 25ºC
Power reserve	3 year	10 year
Data readout	LCD display	Backlighted LCD display
Number of contacts	1 C/O
Current of contacts	16A/250V AC1
Switching capacity	4000VA/AC1,384W/DC
Mechanical life	10000000
Electrical life	1000000
Protection degree	IP20
Pollution degree	3
Altitude	≤2000m
Mounting	TH-35 Rail
Standard	EN60730-1/EN60730-2-7

Prod Model:	DTS-1003
