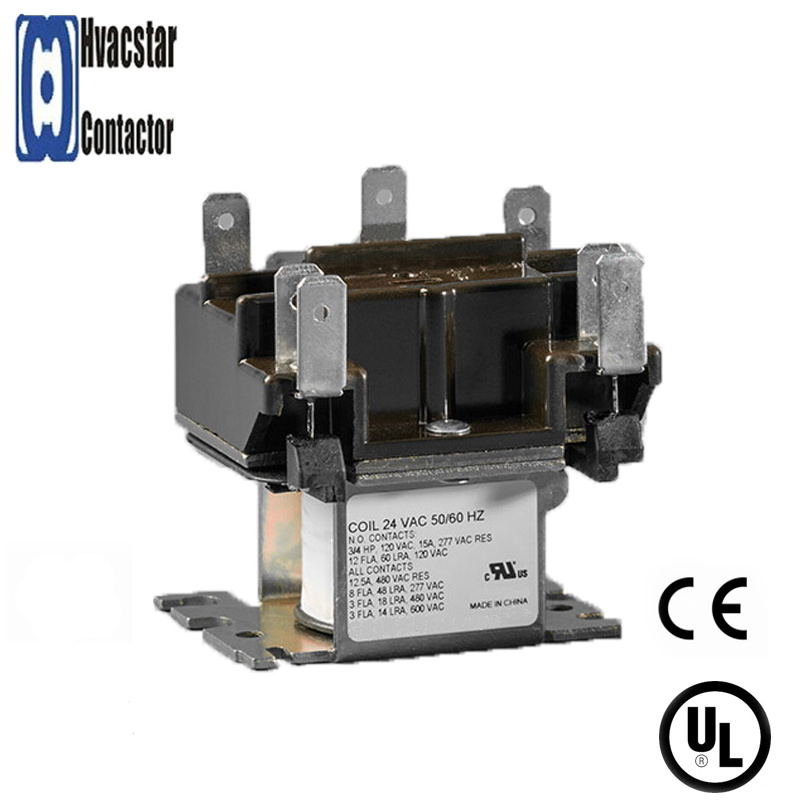

Dpdt Contact Switching Fan Air-Con Relay

Name: Dpdt Contact Switching Fan Air-Con Relay
Brand: all-electronics-online.com
SKU: 824011705
Availability: InStock
Rating: 4.7 (79 reviews)

Price:	US $ 2-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Switch Relay:
ATR Series two-pole switching relay is available in 24, 110/ 120, and 208/240 AC coil voltages with various combinations of power and pilot-rated contacts. Features include quick-connect terminals (coil and contacts), wire or socket plug-in, molded terminal numbers and circuit diagram on top of relay, and a mounting base that is designed for other's relays.

Feature:
1) 2 POLE switching relay
2) CONTACT: DPDT
3) 250# Quick connect termination
4) Used on heat pumps, vending machines, fans, and heating and air conditioning

Item Specifications

Coil Voltage	24
Terminal 1-2-3	Power
Terminal 4-5-6	Power
Switch Type	DPDT

This Item Replaces

RBM	90-340
White-Rodgers	90-340
Mars	90340
Honeywell	R8222D1014

Applications:
Air conditioners
Heat pumps
Water heaters
commercial refrigeration
Other locations where a local disconnect is required

DETAILS:

NO.	CONTACT VOLTAGE VAC	AMP			Coil Voltage	CONTACT	Configurations
		FLA	VAC	STYLE			POLES	POLES
							123	456
PR4-340	125	12	60	15	24	DPDT	Power	Power
	250-277	6	35	15
	480	3	18	12.5
	600	3	14
PR4-341	125	12	60	15	120	DPDT	Power	Power
	250-277	6	35	15
	480	3	18	12.5
	600	3	14
PR4-342	125	12	60	15	208-240	DPDT	Power	Power
	250-277	6	35	15
	480	3	18	12.5
	600	3	14

Mr.Neal

M:+86 13587828006

Just tell us what you need, we can do anything to provide it with the most suitable price.

Prod Model:	PR342
Color:	Black
Other Services:	ODM OEM
Delivery Date:	35 Days After Deposit

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
