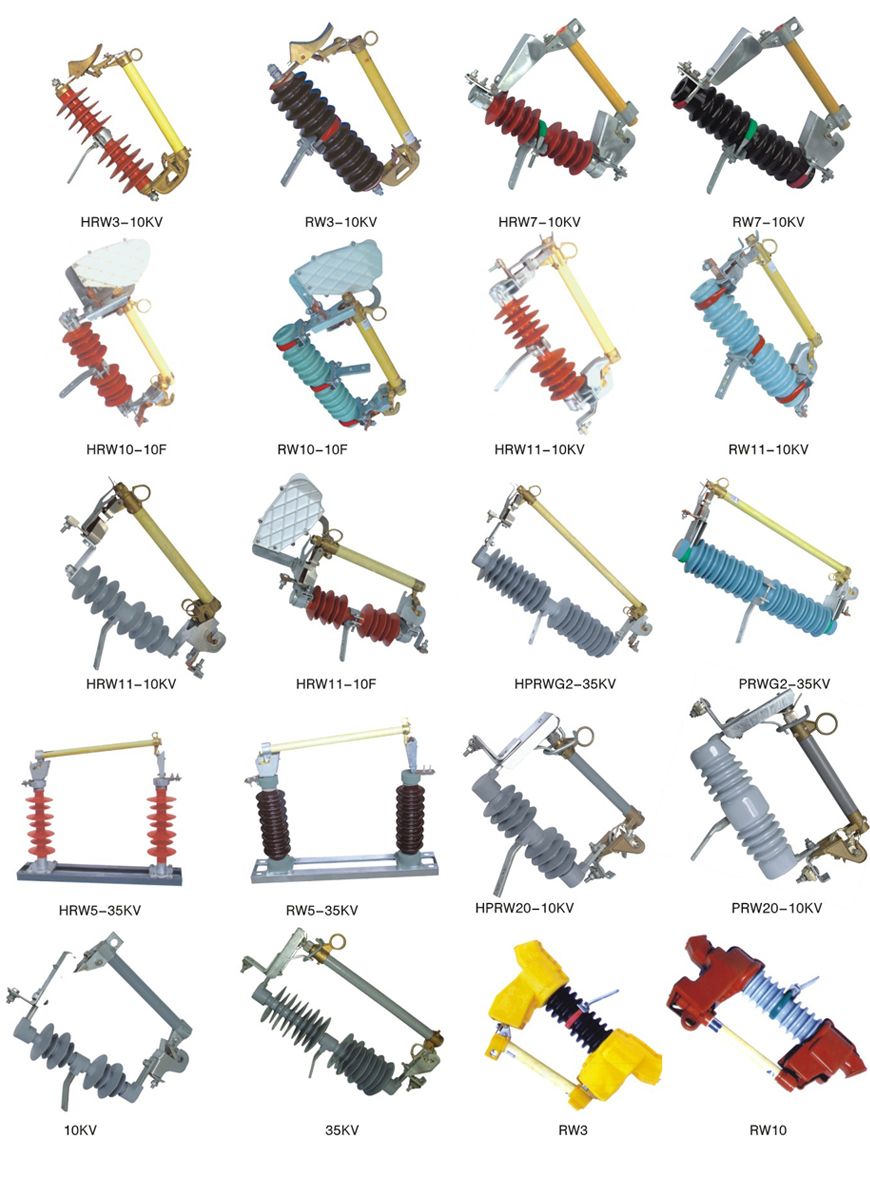

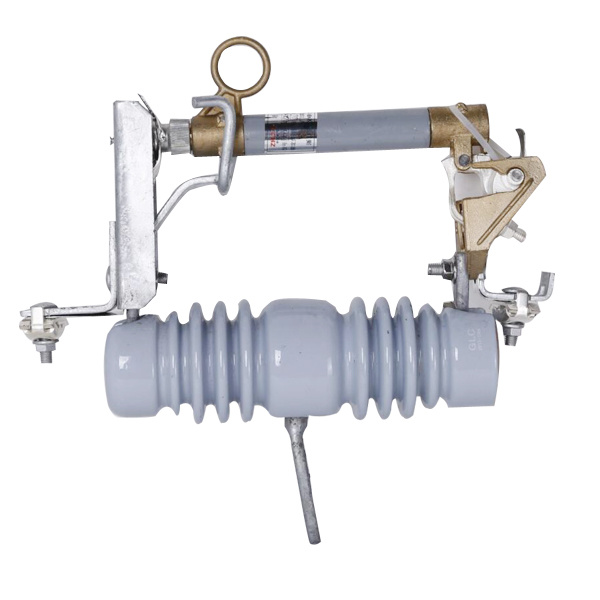

Dropout Fuse Cutout

Name: Dropout Fuse Cutout
Brand: all-electronics-online.com
SKU: 819876885
Availability: InStock
Rating: 4.9 (87 reviews)

Price:	US $ 11.5-80/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Installation tips:
1)The fuse should be installed tightly when the melt tension (the fuse body is about 24.5N of the tension), otherwise easily lead to contact heat.
2)Fuse installed in the crossarm should be solid and reliable, can not have any shaking or shaking phenomenon.
3) The melting tube should have an angle of 25 ° ± 2 °, so that the fuse melt the fuse tube to rely on its own weight quickly fall.
4) Fuse should be installed in the vertical distance from the ground of not less than 4m on the cross arm, if installed in the distribution transformer above, with the distribution of the outermost contours to maintain a horizontal distance of 0.5m above, in case of melting Causing other accidents.
5) The length of the fuse tube should be adjusted to moderate, requiring the closure mouth after the closuring can be more than two-thirds of the contact length, so as to avoid the occurrence of self-drop in the operation of the malfunction, To prevent the fuse is melt while the fuse tube can not fall in time.
6) The melt used must be the standard product of the regular manufacturer, and has a certain mechanical strength, the general requirements of the melt can withstand at least more than 147N of tension.
7) 10kV drop fuse installed in the outdoors, requiring interphase distance greater than 70cm.

Material:	Silicon Rubber
Rated Voltage:	35kv
Application:	Outdoor
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Fusing Device:	with Holder

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
