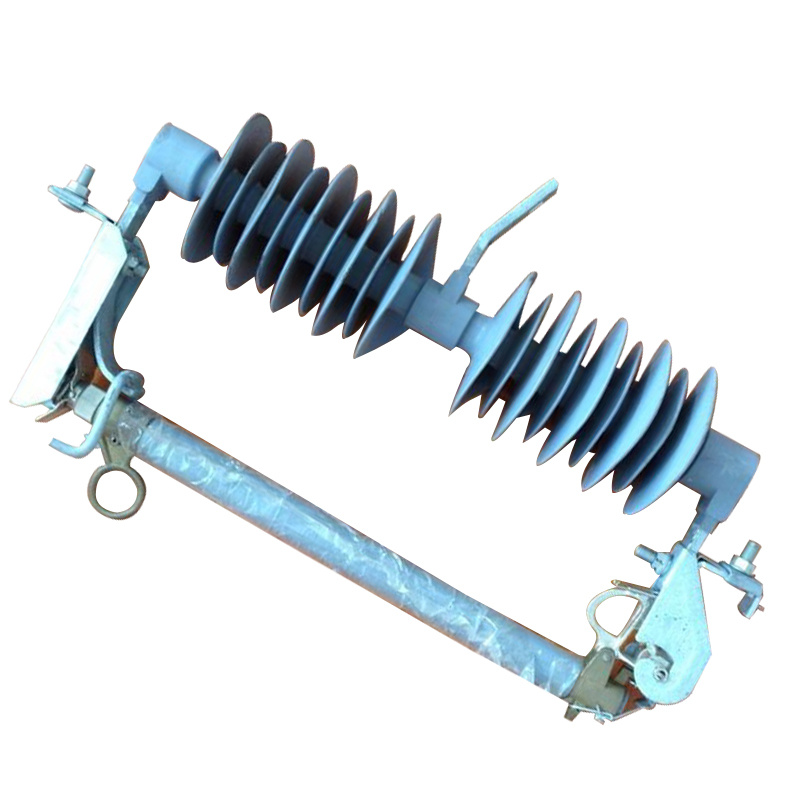

Power Fuses Outdoor Distribution

Name: Power Fuses Outdoor Distribution
Brand: all-electronics-online.com
SKU: 821874815
Availability: InStock
Rating: 5 (80 reviews)

Price:	US $ 10-80/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Fuse Type	KV			Amperes,RMS,Symmetrical
	Nominal	Maximum	BIL	Maximum	Interrupting(A)
	Nominal	Maximum	BIL	Maximum	60Hz	50Hz
SMU-20	14.4	17	110	200E or 200K	14000	11200
	14.4	17	125		14000	11200
	14.4	17	150		14000	11200
	25	27	150		12500	10000
	34.5	38	200		10000	8000
SMU-40	4.8	5.5	95	400E	25000	20000
	14.4	17	110		25000	20000
	25	29	150		20000	16000

Power fuse are especially for suited for protecting transformers,capacitor banks,and cables,in outdoor distribution substations through 34.5kV.They incorporate precision-engineered nondamaged silver or nickel chrome fusible elements with time-current characteristics that are precise and permanently accurate-assuring not only dependable performance,but also continued reliability of system coordination plans.With power fuses,source-side devices may be set for faster operation than pratical with other power fuses or circuit breakers,thereby providing better system protection without compromising coordination.

Features:
Power fuses,rated 200 amperes continuous,utilize SMU-20 fuse units.These fuse units are offered in a variety of amperes ratings,in five different speeds - "K," Standard,slow, very slow,and "DR",they provide interrupting ratings of up to 14000 amperes symmetrical at 60Hz.
Power fuse,rated 400 amperes continuous,utilize SMU-40 Fuse Units. These fuse units are similarly offered in a variety of ampere ratings,in four different speeds - "K", Standard,Slow, and very slow. They provide interrupting ratings of up to 25000 amperes symmetrial at 60 Hz. This broad selection of ampere ratings and speeds permits close fusing to achive maximum protection and optimum coordination. Power fuses are manufactured in accordance with a quality system certified to ISO9001:2000.

Prod Model:	SMU-20
Bil:	110/125/150/200
Material:	Silicon Rubber
Breaking Capacity:	High
Type:	Current Fuse
Usaga:	High Voltage
Standard:	ISO9001:2000

Shanghai Powery Industries Co., Ltd. Located in Shanghai China, our factory located in the beautiful seaside city--Qingdao, covering more than 10000sqm, with the workshop covering an area of 5000sqm, is a advanced management company, which is about 15 minutes' drive away from the Qingdao airport and about half-hour's drive away from the port.

We are engaged in the design, manufacture and marketing services of rigging, vessel and container fittings, electric power fittings, and high and low voltage transmission and distribution line fittings. We have been equipped all kinds of forging machines, casting machines, punching machines, lathes and drilling machines. "Quality and Service" is our top belief. Our products have been exported to Asia, America and Africa for many years. Most of our friends and customers are satisfied with our quality and services, on the basis of which, long-term friendships have been established.

Being ISO9001: 2008 certified and with permits for all products, we produce all products according to relative International Standards and customers' requirements.

You and your esteemed company are welcomed to visit us. Our best services, famous Qingdao beach sightseeing and delicious seafood are waiting for your presence.
