Dt Tinned Copper Tube Cable Terminal Lug with Two Holes

Name: Dt Tinned Copper Tube Cable Terminal Lug with Two Holes
Brand: all-electronics-online.com
SKU: 804607915
Availability: InStock
Rating: 4.8 (132 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

DT tinned copper tube cable terminal lug with two holes

Technical Requirements
Material: Copper, Good conductivity

Marking: The marking should be clearly, well-proportioned

Surface Treatment: Acid cleaning, bright or tin plated

Product Property : It is used to connect the copper conductor end

Type No	Main Dimensions(mm)
Type No	D	d	L1	L	A	L2	L3	Φ
DT2-35	12	8.5	36	100	22	50	20	10.5
DT2-50	14	9.8	40	106	22	51	20	10.5
DT2-70	16	11.5	44	118	28	58	25	10.5
DT2-95	18	13.5	47	126	28	59	25	10.5
DT2-120	20	15	49	138	34	65	30	12.5
DT2-150	22	16.5	52	140	34	65	30	12.5
DT2-185	25	18.5	56	152	40	71	35	12.5
DT2-240	27	20.5	60	158	40	71	35	12.5
DT2-300	30	23	62	180	50	85	40	14.5
DT2-400	34	26	65	185	50	85	40	14.5
DT2-500	38	29	75	197	50	85	40	14.5

FAQ
1. How to buy your ideal products?
A: You can provide us your drawings, and we will produce it as per your drawings. Or we can design it if you do not have a clear plan.

2. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated.30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?
A: It depends on order quantity. Generally, the delivery time will be within 15 to 30 days.

4. Package information
A:For inner box and master carton are made as per international standards, and we can make special designed for you if need. And if necessary, will be packed in pallet to avoid any damage.
B:Not more than 35kg per carton box, about 1000kg per pallet

5.How long to make a sample? Is it free?
A:7 days depending on the sample's complexity. Normally, our sample is free

6.How to cantact us?
A:Send your inquiry details in the below, Click "send" now!

Our Services

Service
1.Thousands of products in stock and ready to ship.
2.The most competitive pricing
3.Free shipment container loading
4.Putting the customer's needs first, always
5.On call,24 hours a day,7 days a week

Prod Model:	DT2
OEM:	Accept
Sample:	Free
Purity Copper:	99.9%
Finished:	Acid Cleaning or Tin Plated
Material:	Copper
Application:	Conduct Electricity
Type:	Crimp Terminal, Lug
Character:	High Conductivity

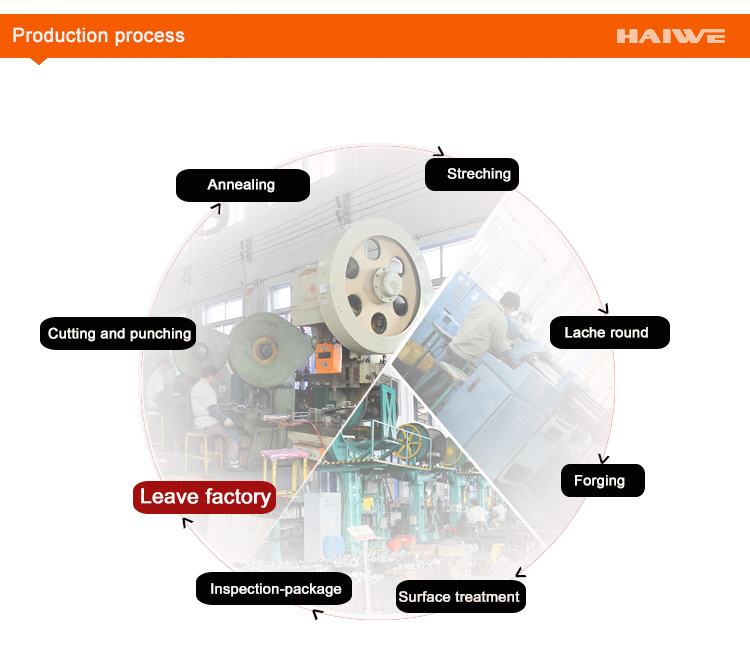

Production Process:	Punching
Shape:	Tubular
Interface Type:	Crimpimg
Certification:	SGS
Brand:	Haiwe

Haiwe electric Co., Ltd was established in 2007, is China's leading Manufacturer- Exporter of wide range of components used in power transmission and distribution lines & Equipment building industries, and We are pleased to introduce ourselves as a pioneer of power fitting, Distribution fitting, Overhead transmission line, Electrical Substation line Overhead insulation fitting etc. As per customers specifications and drawings.

The company's main customer base is made up of Distributors / Wholesalers of Electrical Products, Electrical Contractors & Installers, Equipment manufacturers, Maintenance companies and Government authorities. And has successfully exported our products to Southeast Asia, South America, MID East, Africa etc.

We aim to deliver products with "Zero" defects with very optimum prices, to assure this Haiwe has achieved.

As you browse through our website, we hope you will find what you are looking for. If not, just send us your inquiry or give us a call. If it is relevant to our line of work, we will be happy to provide a solution.
