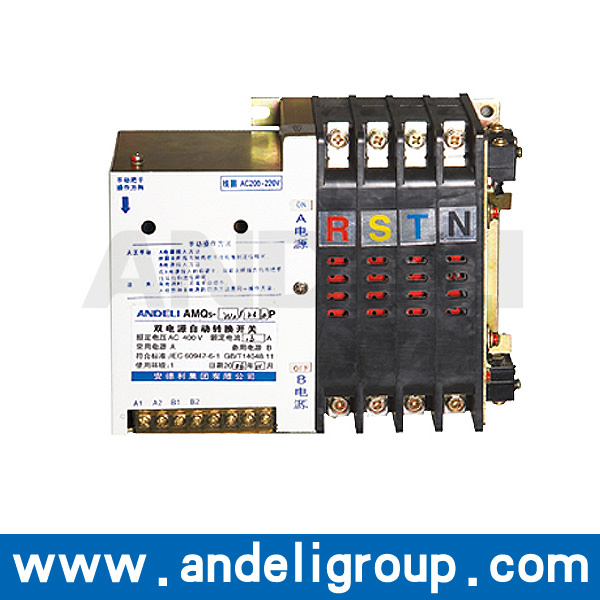

Dual Power Automatic Transfer Switch (AMQ5)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
Prod Model: |
AMQ5 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...

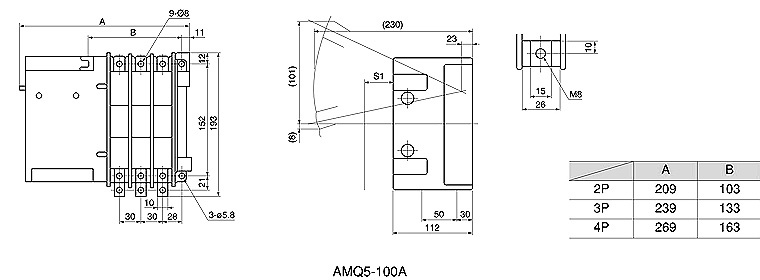

Application AMQ5 Series automatic transfer switch (transfer switch) is developed successfully with the help of the most advanced ATS technology in the world. This kind of transfer switch and intelligent display mated with it are mainly applied in the occasions required uninterrupted power supply like building, posts and telecommunications, mine industry, shipping and military industry. Under the necessary trend of urban power service increasing, it can meet the higher requirements of the reliable power service. This product has many features like reliable performance, small volume and simple operating etc.Main functionWith safe and reliable interlocking function, when the breaker is under closing state, the breaker cannot be glugged in or drawn out, you must open the breaker first to plug in or pull out. With function of reliable making and breaking main circuit and secondary circuit, besides, the device possesses self-locking function. When you draw out the breaker, the device has safe insulating isolation (your finger will not touch with the charged parts). The breaker can be mounted with various rotating manual operating mechanism and motor operating mechanism.DimensionAbout us
Type |
AMQ5 |
Type AMQ5(Three-step type) |
AMQ5-100 |
AMQ5-250 |
AMQ5-400 |
AMQ5-630 |
AMQ5-800 |
Rated voltage |
AC690V DC125V |
Rated current |
100A |
250A |
400A |
630A |
800A |
Number of cutting in |
Double cut-in |
Connecting * mode |
In front of panel and at back of panel (Non standard * product) |
Operating current |
DC110V (A) |
3 |
3 |
4 |
3 |
4 |
5 |
5 |
5 |
7 |
6 |
6 |
6 |
AC100V/110V (A) |
3 |
3 |
4 |
3 |
4 |
5 |
5 |
5 |
7 |
6 |
6 |
6 |
AC200V/220V (A) |
1.5 |
1.5 |
2 |
1.5 |
2 |
2.5 |
2.5 |
2.5 |
3.5 |
3 |
3 |
3 |
Trip current |
DC110V |
1A |
1.5A |
2A |
AC100V/110V |
1A |
1.5A |
2A |
AC200V/220V |
0.5A |
0.7A |
1A |
Performance |
Short-time withstanding current |
5kA |
10kA |
12kA |
15kA |
Rated conditional short-circuit current |
12.5kA |
25kA |
30kA |
37.5kA |
Making and breaking capacity |
AC-33B(10Ie making 8Ie opening ) cosØ=0.35 DC-33B 1.1Ie making 1.1Ie opening L/R=1ms |
Changeover time |
A power side |
Cut in |
55ms |
55ms |
60ms |
100ms |
Cut off |
20ms |
20ms |
25ms |
30ms |
B power side |
Cut in |
80ms |
80ms |
90ms |
135ms |
Cut off |
20ms |
20ms |
25ms |
30ms |
Service life |
With 2500 times of electric life with 10000 times(120 times/hour) of mechanical life |
Operation circle time |
120 time/hour |
Auxiliary switch |
A source 1C B source 1C switch capacity AC100V5A AC200V2.5A DC100V0.5A |
Accessory |
Protective cover breakthough absorber manual handle |

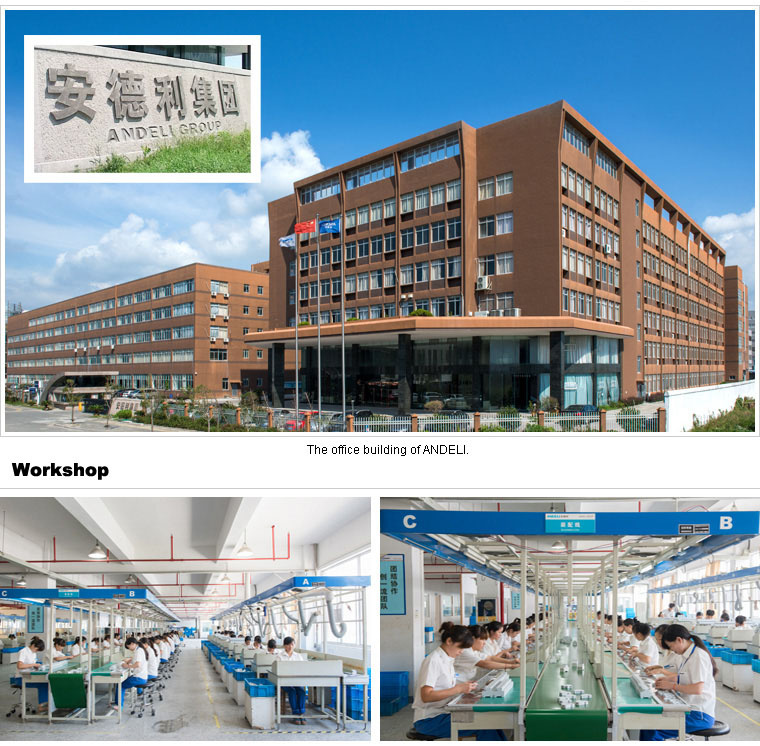

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
