| Prod Model: |
RFID gps tracker tk105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer Or Not: |
Original Coban GPS Tracker with Camera |
| OEM Or Not: |
Yes |
| Certificate: |
CE FCC ISO |
| Delivery Time: |
2-3 Business Days |
| Feature 1: |
Acc/Door Alarm, Fuel Sensor, Engine Cut off |
| Network: |
GSM/GPRS |
| Tracking Way: |
SMS, Web Platform, Phone APP |
| Function: |
GPS Tracking Device for Vehcles Bus Management |
| Model Number: |
Vehicle Car GPS Tracker Tk105 |
| Feature 2: |
Support Camera / RFID / Speed Limiter /Temp Sensor |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Operating Principle: |
GPS, GSM, GPRS Tracking System |
| Port Number: |
20 |
| Model: |
Tk103b Vehicle GPS Tracker with RFID |
| Screen Size: |
No Screen |
| Brand: |
Coban GPS Tracker |
| Certification: |
CE FCC ISO |
Product Description

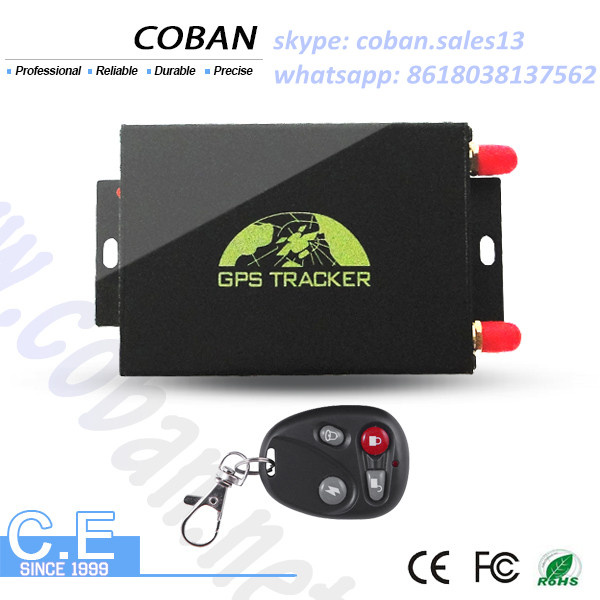

RFID gps tracker tk105 vehicle gsm gprs gps tracker with camera support vehicle speed limiter
Top Quality , Factory Price , 2 days delivery , 12 months Warranty.
Model: GPS tracker TK-105A /B
It is based on GSM/GPRS(850/900/1800/1900MHZ) and GPS satillite global position system .
1. Summary
This tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
2. Features
* GPS/LBS (location based service) double way tracking solution.
* SMS/GPRS/Internet Network data transmission.
* Configure by remote terminal, remote control vehicle.
* Snapshoot photo automatically when alarm triggered
* RFID.
* Fuel level measurement, Oil leakage or theft alarm.
* Vehicle Speed Detection.
* Kilometrage report.
* Tracking and monitoring by SMS, web server and mobile app
3. Main Function discription
*Get absolute street address by SMS
*Take photo via camera by SMS message and temperature monitoring
*Tracking by GPS and GSM base station both even in building, underground and garage
*Real time tracking via SMS or GPRS (TCP/UDP)
*Track on demand by calling or SMS command
*Show location directly on mobile phone with HTTP Google map link
*Track by time interval
*Five authorized phone number to protect tracker information and assets
*Voice surveillance
*Easy switch for track or monitor
*Low battery alarm
*Power disconnect alarm
*Location based service (LBS)
*SOS button alarm
*Geo fencing alarm
*Turning points update automatically in GPRS mode
*Over-speed alarm
*Engine-cut and restore alarm by SMS GPRS
*Door alarm
*Movement alert
*Compatible with car original anti-theft system
*Fuel alarm:Once the fuel less 8% in 3 minutes,it will send you a alarm.
*Remote Start engine
*GPS blind area alarm
*Setup Appointment for engine
*Dual sim card and real time fuel sensor for fuel monitor
*Central locking system
*Empty / Loaded
*Footbrake Alarm
*Support sleep mode
*Bonnet alerts
*Vehicle maintenance notification
4. Optional function:
*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
Specifications
| Content | specifications |
| DIM. | 83*54*26mm |
| Weight | 120g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS Sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status 45s
Warm status 35s
Hot status 1s |
| Voltage | 12 V -24V |
| Backup battery | Chargeable 3.7V500mAh Polymer Li-Battery |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
Technology parameter:
*Network: GSM/GPRS
*Band: 850/900/1800/1900Mhz
*GPS sensitivity: -159dBm
*GPS accuracy: 5m
*Time To First Fix:Cold status 45s, Hot status 1s
How to tracking ?
The GPS devices support phone tracking and 16 languages website tracking. (English,Spanish,Portuguese,Arabic,Thai language,Italian,German,Chinese,French...)
Five types Tracking way:
A>: SMS + Map software;
B>: PDA Cell Phone;
C>: Real time tracking, and track via your computer;
D>: simple & useful real time tracking via our website www.baanool.net
E >: IOS and Android APP
Web based online tracking system www.gpstrackerxy.com user id: demo, password:8888
Optional accessory :
* Central locking relay for door lock / unlock system
* Fuel sensor
* Temp sensor
* RFID reader
* Speed limiter
* Camera
Warranty
1. One year warranty is provided for all models.
2. All products have been strictly Quality Checked in house before packing.
3. All products have been well packed before shipping.
OEM&ODM Service
1.Customize logo and brand print on the device or box
2.Offer firmware modification service
3.Customize design in bulk order
