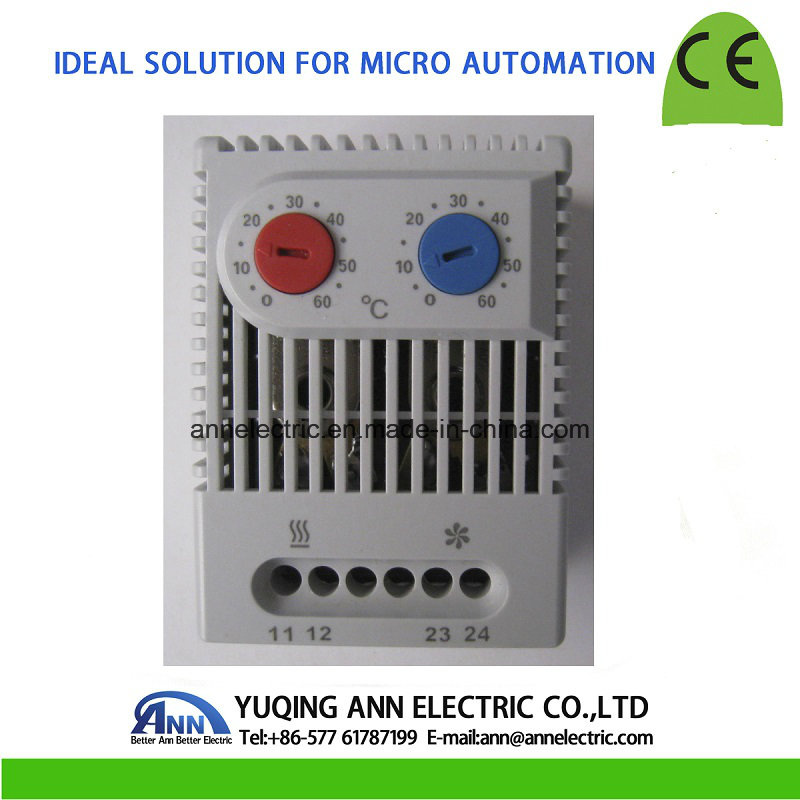

Dual Thermostat Zr 011, Two Thermostat in One Casing, Normally Open and Normaly Closed

Name: Dual Thermostat Zr 011, Two Thermostat in One Casing, Normally Open and Normaly Closed
Brand: all-electronics-online.com
SKU: 792773265
Availability: InStock
Rating: 4.3 (63 reviews)

Price:	US $ 4.2-4.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Specifications

Adjustable relative humidity
Change-over contact
High switching capacity
Easily accessible terminals
Clip fixing

Two thermostats in one unit
- one Normally Closed (NC) & one Normally Open (NO)
- or two Normally Open (NO)
Each with wide adjustable temperature range
Available with °F or °C scale
DIN rail mountable

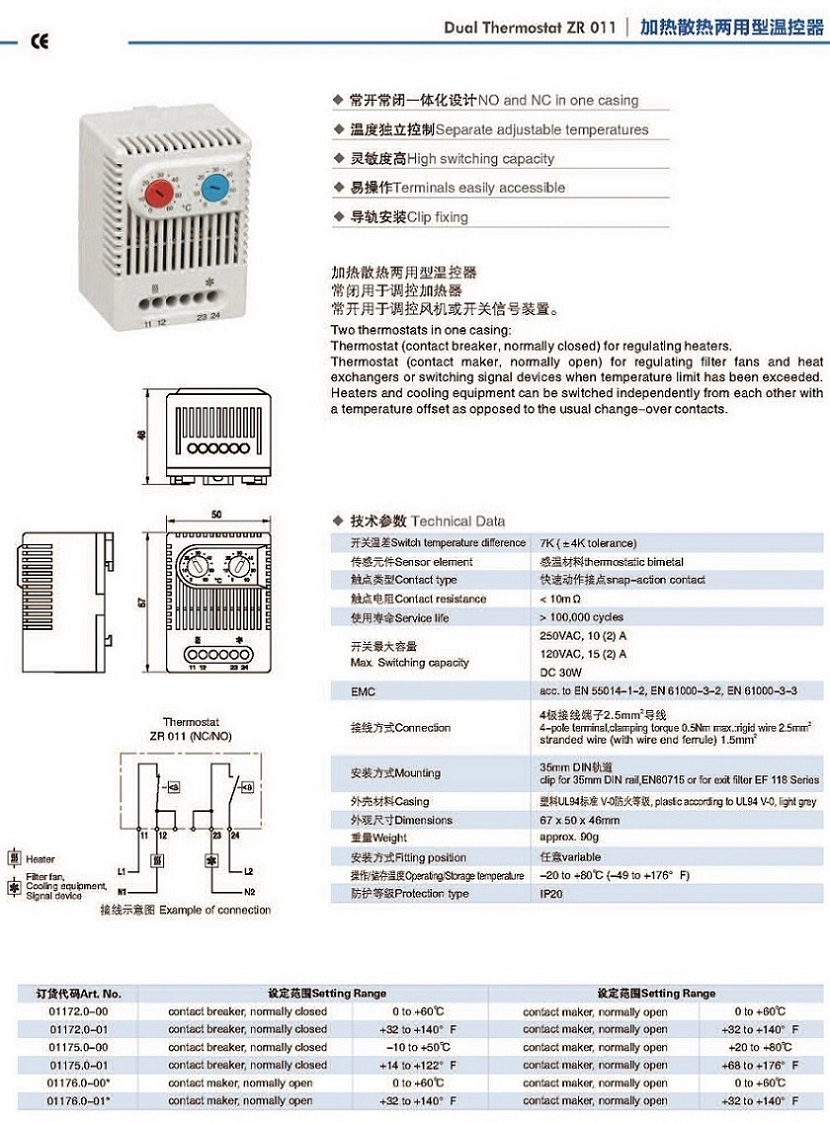

The ZR 011 houses two separate thermostats, allowing the independent control of heating and cooling or other equipment. Both thermostats offer wide adjustment ranges and are color coded for easy function recognition.

Technical Data

Sensor element	Thermostatic bi-metal
Maximum tolerance	+/- 7.2°F (4K)
Switching difference (hysteresis)	12.6°F +/- 5.4°F (7°C +/- 4K)
Switching capacity (max. load)	NC: 10A resistive/2A inductive @ 250VAC
	NO: 5A resistive/2A inductive @ 250VAC
	DC 30W
Minimum load	20 mA (all voltages)
EMI/EMC compliance	EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connections	4-pole terminal for AWG 14 max. (2.5 mm²)
Mounting	Clip for 35mm DIN rail (EN50022)
Dimensions (H x W x D)	2.6 x 2.0 x 1.8" (67 x 50 x 46 mm)
Housing	Plastic, UL 94V-0
Weight	3.2 oz (90 g)
Protection type	IP20
Operating temperature	-4 to 476°F (-20 to 80°C)
Storage temperature	-49 to 158 °F (-45 °C to 70 °C)
Agency approvals	UL, CSA

Part No.	Setting range NC	Setting range NO	Setting range NO
01172.0-01	32 to 140 °F	32 to 140 °F	-
01175.0-01	14 to 122 °F	68 to 176 °F	-
01172.0-00	0 to 60 °C	0 to 60 °C	-
01175.0-00	-10 to 50 °C	20 to 80 °C	-
01176.0-00	-	0 to 60 °C	0 to 60 °C
01176.0-01	-	32 to 140 °F	32 to 140 °F

Prod Model:	ZR 011
Contact:	No and Nc
Dimension:	67 X 50 X 46mm
Protection Type:	IP20
