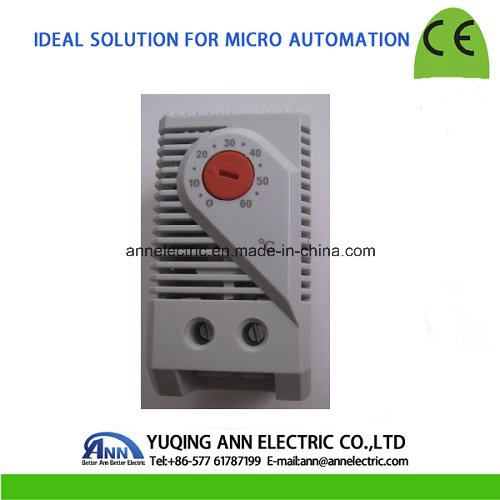

Thermostat Kto 011, Normally Closed, Control Temperature

Name: Thermostat Kto 011, Normally Closed, Control Temperature
Brand: all-electronics-online.com
SKU: 792772195
Availability: InStock
Rating: 4.5 (98 reviews)

Price:	US $ 3-4/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	KTO 011
Contact:	Normally Closed
Dimension:	60 X 33 X 43mm
Protection Type:	IP20

Product Description

Specifications

CE Certification
Large setting range ,Small size
Mechanical bimetal type
High switching performance
Snap-action Contact:

Large setting range
Small size
Simple to mount
High switching performance

Thermostat (normally closed); contact breaker for regulating heaters.

Technical Data

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mOhm
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A
	120VAC, 15 (2) A
	DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing	plastic according to UL94 V-0, light grey
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operating/Storage temperature	-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type	IP20

Setting range	Art. No. Contact breaker (NC)	Approvals
0 to +60°C	01140.0-00	VDE
-10 to +50°C	01142.0-00	VDE
+20 to +80°C	01159.0-00	VDE
+32 to +140°F	01140.9-00	UL File No. E164102
+14 to +122°F	01142.9-00	UL File No. E164102
0 to +60°C	01146.9-00	UL File No. E164102
