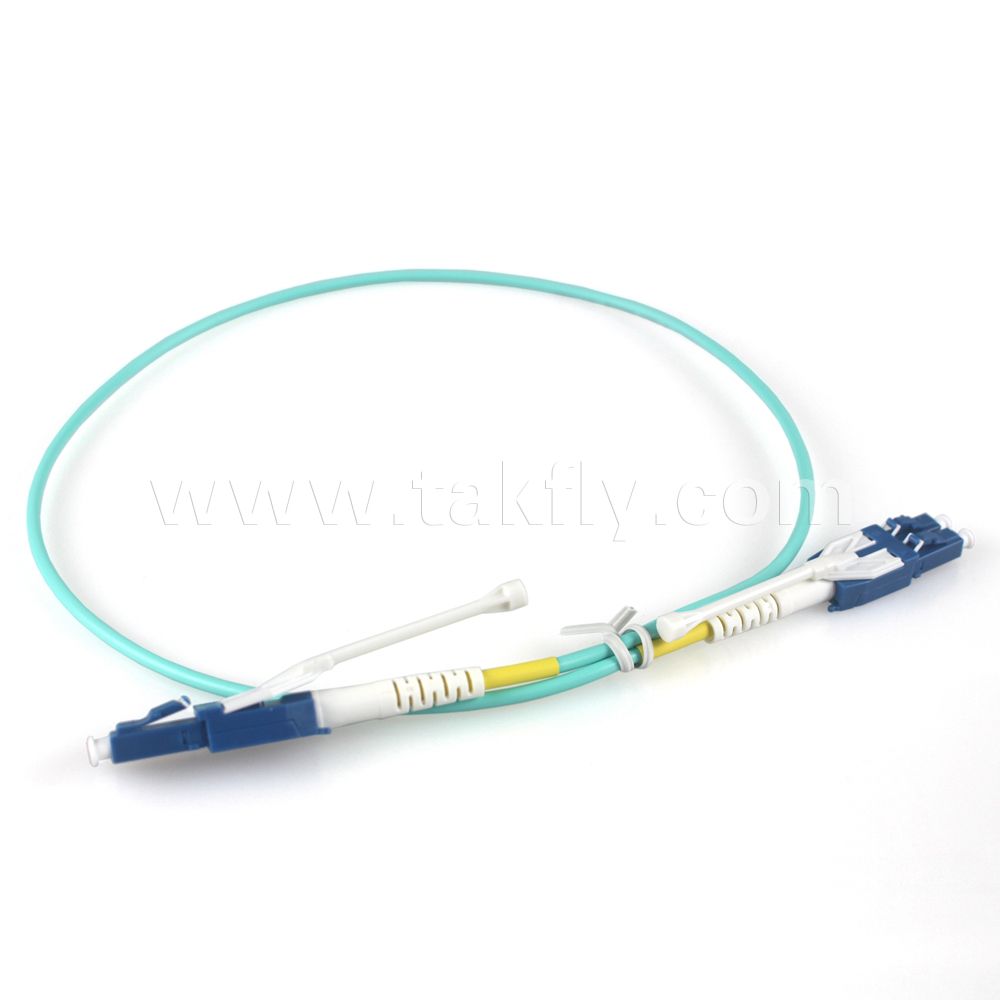

Duplex LC Uniboot Om3 Om4 Fiber Patchcord 1m 3m 5mOM4 Fiber patch cord is one of the most popular type used for telecommunication networks, cable networks and computer networks etc.The main specific including SM/MM, SX/DX, PC/APC etc.
Features:- LC Simplex or Duplex
- ANSI, IEC , TIA/EIA , NTT and JIS standard compatible
- UL-rated plastic housing and boot in a variety of colors with 0.9mm, 2.0mm or 3.0mm
- Precision mechanical dimensions
- Zirconia ferrule PC or APC diameter125~128 um high concentricity
- Single mode, Multimode and Angle PC
- Multi-piece type or one-piece type is available
- All parts compliant with ROHS
Application:- Telecommunication
- CATV
- LAN & WAN
- Network
- Broadband
- FTTH
Parameter:Item | Mode Type | PC | SPC | UPC | APC |
Insertion Loss | SM | ≤0.25dB | ≤0.20dB | ≤0.20dB | ≤0.15dB |
MM | ≤0.30dB | ≤0.20dB | ≤0.20dB | ≤0.30dB |
Return Loss | SM | ≥45dB | ≥50dB | ≥55dB | ≥65dB |
MM | ≥35dB | ≥35dB | ≥35dB | ≥35dB |
Repetition Test | Additional Loss≤0.1dB,Reture Loss Variability<5dB |
Temperature Stability(-40ºC~85ºC) | Additional Loss≤0.2dB,Reture Loss Variability<5dB |
Operating Temperature | -40ºC~+75ºC |
Storage Temperature | -40ºC~+75ºC |
About TakflyTakfly Communications Co.,Ltd is the high-tech manufacturering enterprise,which is established in 2000,and specialized in optical fiber transmission equipments,security surveilance monitoring equipment combined with researching developing,production,sales and services.Takfly mainly produce digital video transceiver,audio transceiver,internet transceiver,alarm transceiver,ethernet optical media converter,10M media converter,100M media converteres,1000M media converters,10/100M media converter,10/100/1000M media converter,business class of media converter,industrial telecom media converters and some other surveillance data communication products.Which are widely apply to metropolitan network access network,fiber to home network,electric power,education,army,safety city and some other important system
Takfly Strictly follow the ISO9001 quality management system,adopt advanced production technology,equipped with high standard,product passed CE,FCC,3C's certification,obtain the telecommunication equipment access network certification by national information industry.And qualified with inspection report from the ministry of public securityand police electronic quality testing.OEM or customized is available.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world.To be the super leaderof the optical communications scopes in China is the goal of Takfly.In the next five years.Takfly will keep the strategic pattern of development-"Based in south of China,penetrate into whole country,extend over the world".
1.World wide exhibitions
2.Factory Over view
2.All kinds of Certifications
Would you like some LC Om4 uniboot fiber patch cord for testing?Please leave me an inquiry or contact me directly.
