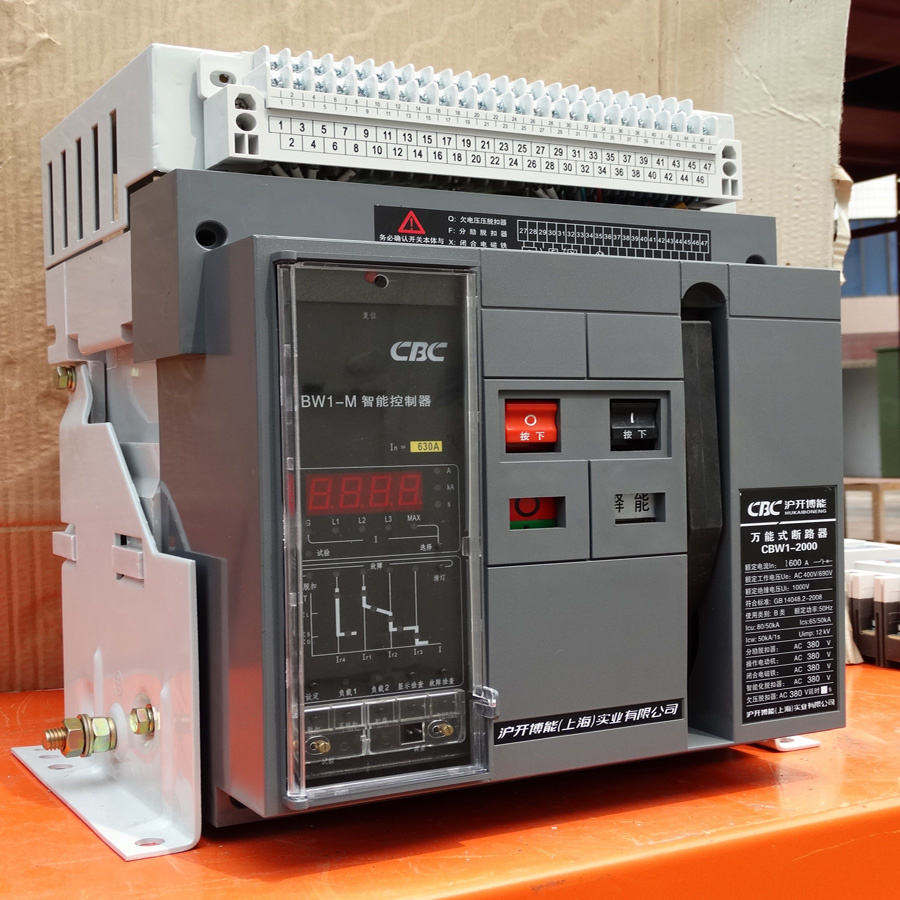

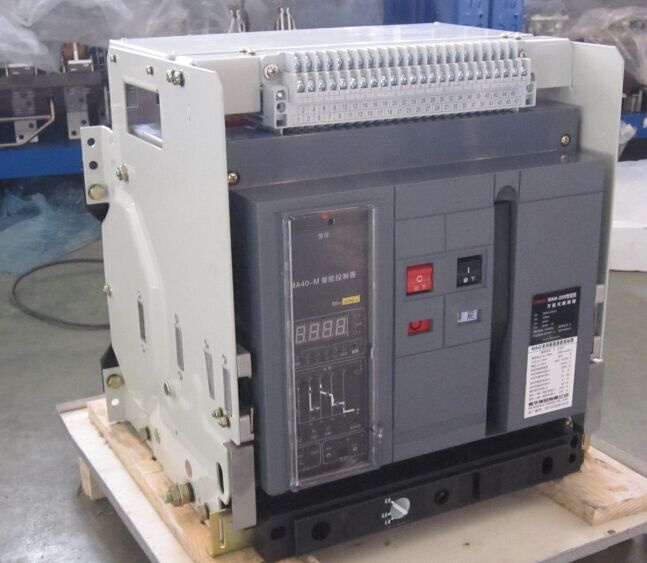

Dw45 Acb Intelligent Universal Air Circuit Breaker 2500A Merlin Gerin Acb

Name: Dw45 Acb Intelligent Universal Air Circuit Breaker 2500A Merlin Gerin Acb
Brand: all-electronics-online.com
SKU: 819298255
Availability: InStock
Rating: 4.3 (55 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1.General

1.1.Application scope
Air circuit breaker is suitable for the circuit of AC 50Hz/60Hz with rated service voltage 400V,690V and rated service current up to 6300A. It is mainly used to distribute electric energy and protect circuits and electric equipmetn against over-load, under-voltage, short-circuit and single-phase earthing fault. With Intelligentized and selective protection functions , the breaker can improve the reliability of power supply, and avoid unnecessary power failure. The breaker is applicable for power stations, factories, mines(for 690V) and modern high-buildings, especially for the distribution system of interlligentized building.

1.2.Standard: IEC/EN60947-2

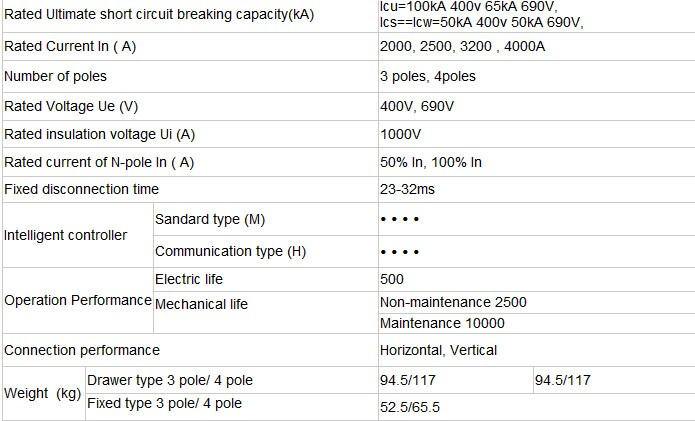

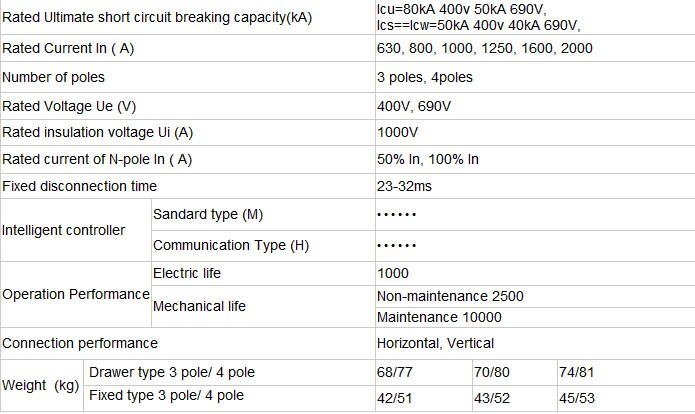

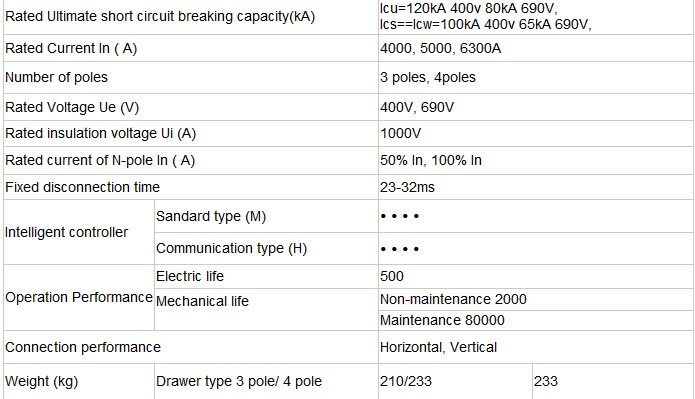

2.Main technical parameter

Prod Model:	HKW1
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	ACB
Poles Number:	3
Certification:	CCC
Installation:	Fixied or Mavable Type

Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.

Huanghua Group is one of the Top 500 Private Enterprises in comprehensive strength in China, mainly specializing in the production of high-low voltage power transmission and distribution equipment, including substation, power distribution automated switchgears, terminal devices, as well as high-low voltage components, etc. In view of being specialized in electric industry, Huanghua Group gradually grows into one of the leading enterprises in industrial electrical equipment field in China. The group has invested in Shanghai to establish Shanghai Huanghua (CNHK) Electric Industrial Zone. The industrial zone area is more than 80, 000 square meters.

For more than 30 years, Huanghau Group has always been insisting on the operation philosophy of "People oriented, Credit Based, Values Shared".

Nowadays, science and technology are under rapid development. We believe the human society's progress shall be highly promoted, and we will go with this trend to keep forging ahead actively.

We have passed ISO9001 Quality System Certification, ISO14001 Environment System Certification and other certificates on programs, including China Compulsory Certification (CCC) and CE. International certificates are under proceeding.

We are looking forward to cooperating with you and to creating a brilliant future together.
