Prod Model: |
GGD HDJS |
Type: |
Power |
Structure: |
Protection |
Product Description

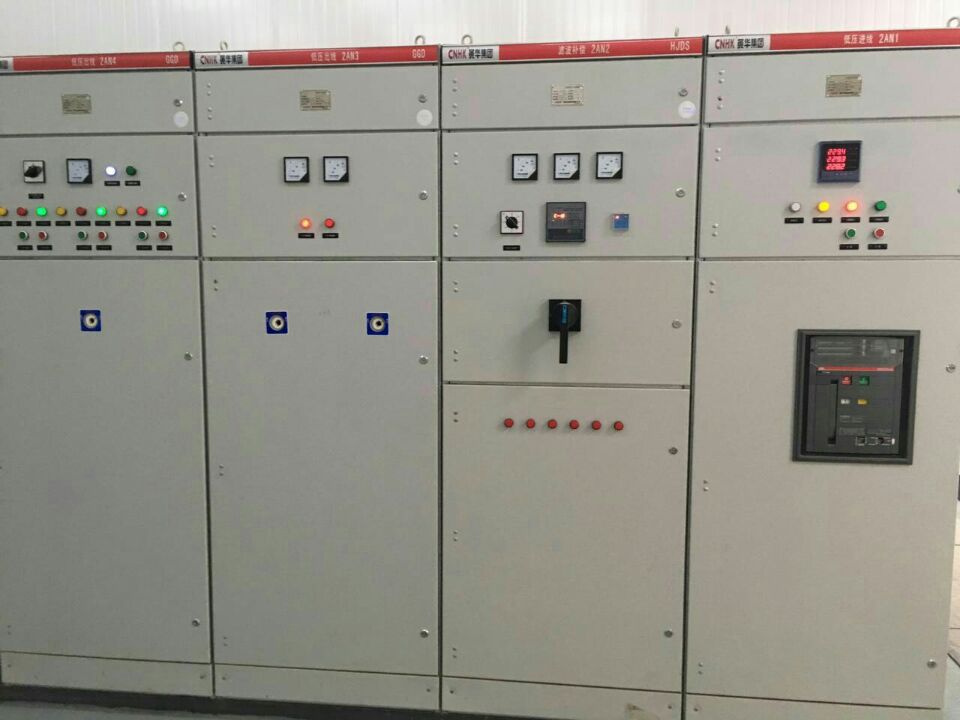

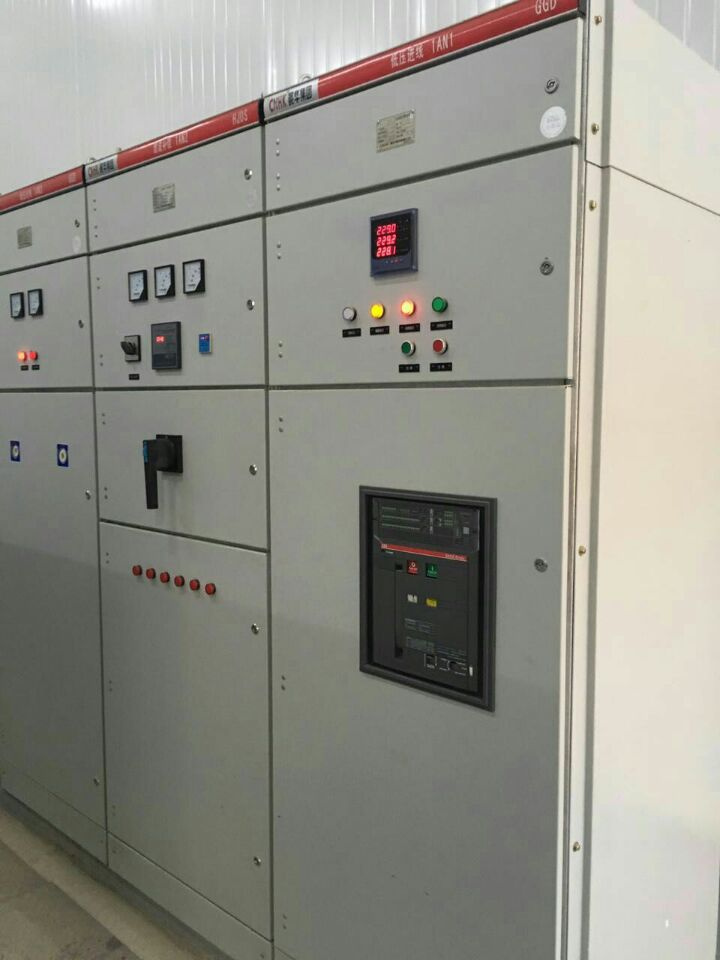

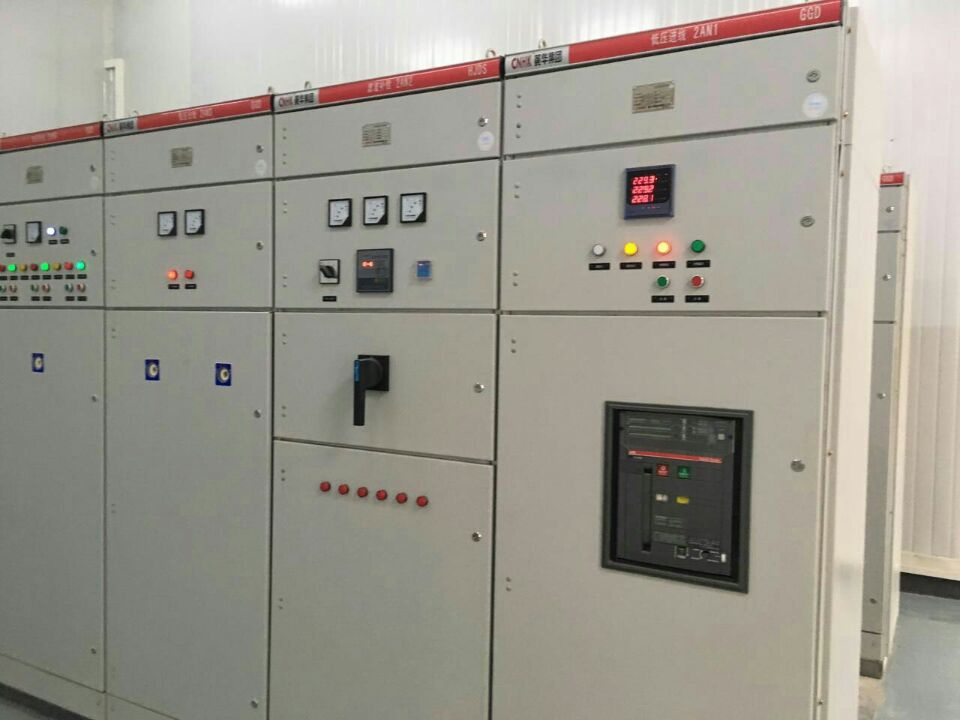

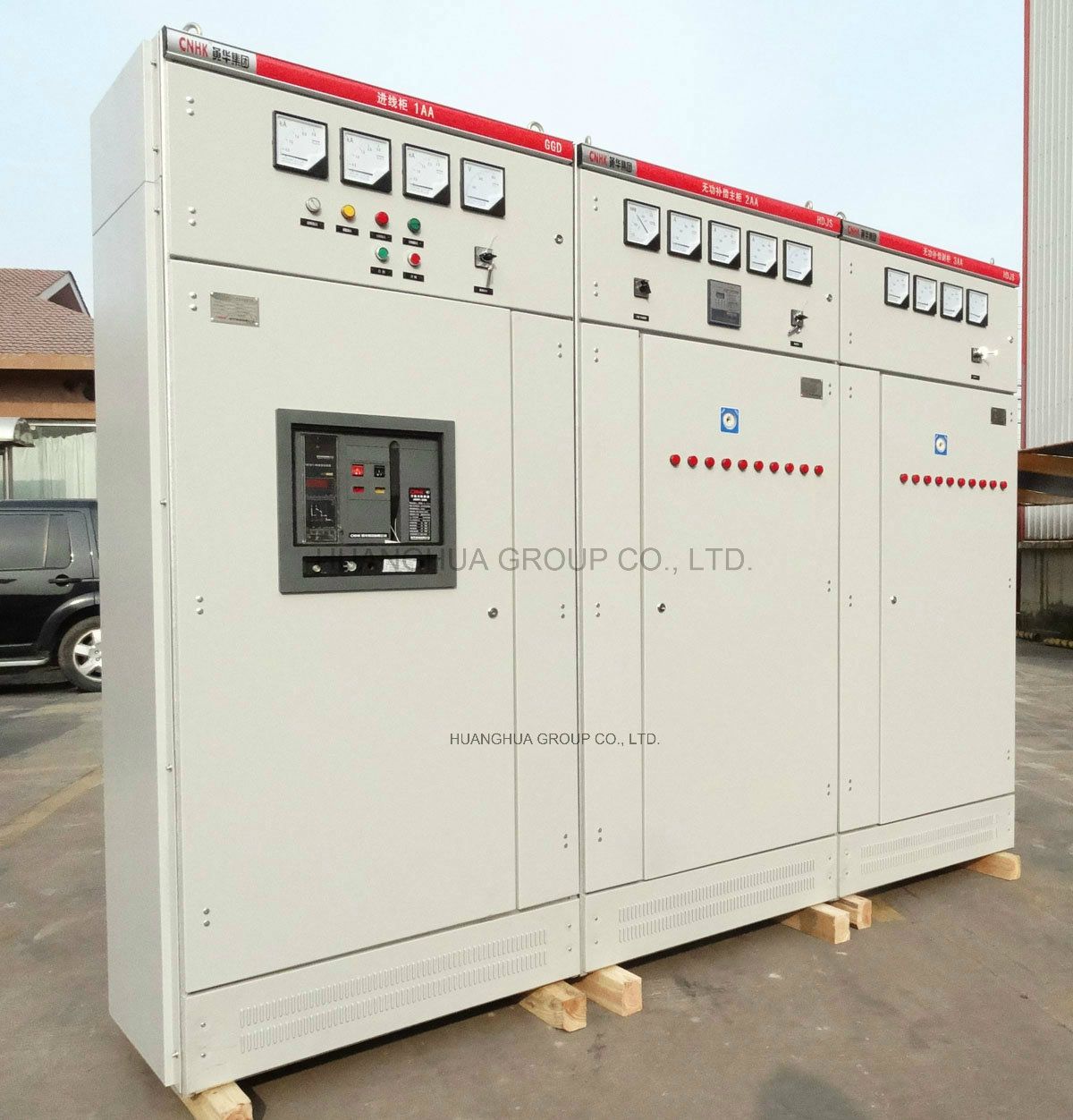

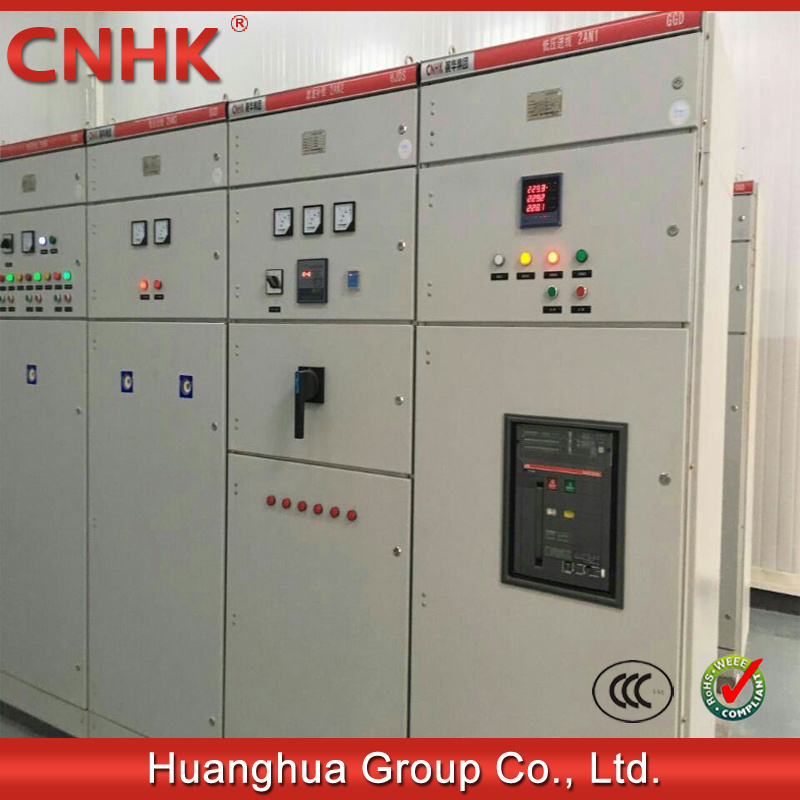

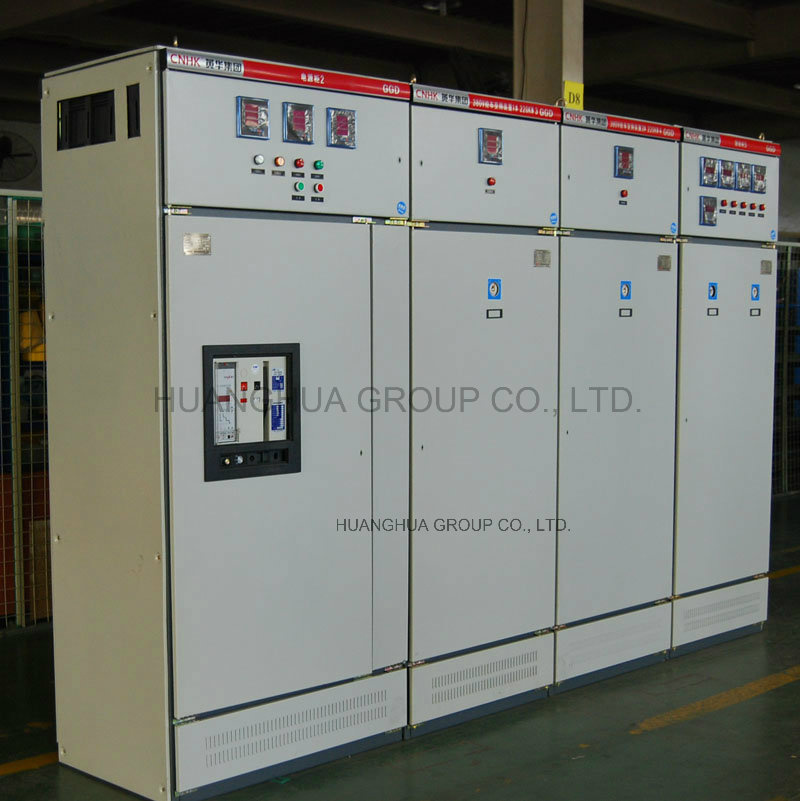

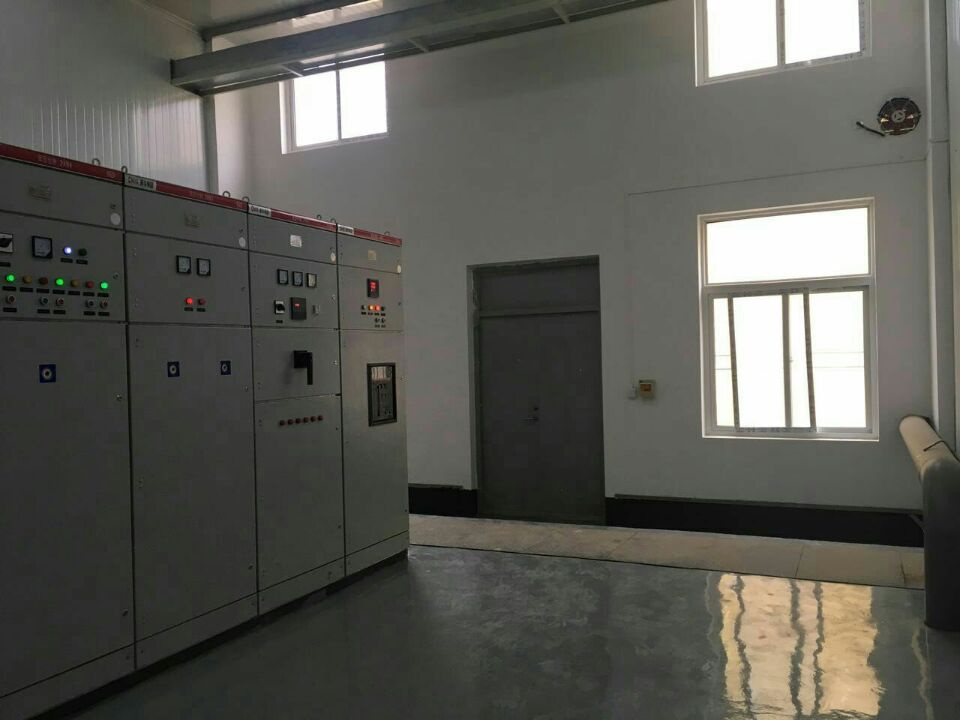

GGD Low Voltage AC Switchgear, fixed type panel
1. General Description
1.1 Application: In the motor control central, These units are mounted up and down in enclosed metal cabinet.
1.2 Standards : IEC 439
1.3 Parameters: Rated voltage: AC 380V, 50Hz
2.Features:
2.1.Compact design
2.2.Easy operation and installation
2.3.Reliable interlock
2.4.Less Maintenance
3. Technical Data
Item | Unit | Specifications | Data |
Rated voltage | V | GGD | 380V |
Rated Frequency | Hz | 50 |
Rated current(A) | A | Horizontal busbar | 1600 3150 |
A | Vertical busbar | 630 |
A | Main circuit contact connector | 160 250 630 400 |
A | Auxillary circuit contact connector | 20A |
A | Max.current on feeder circuit | 160 400 630 250 |
A | Receiving circuit | 1000 1600 2000 2500 |
A | Effective value | 50 80 |
kA | Peek value | 105 176 |
capacity | Kw | For the control motor | 0.45-155 |
Withstand voltage | V/min | | 2500 |
Mechanical life | times | | 1000 |
We also supply the following switchgears:
Rated votlage 40.5KV switchgear(for 33KV system)
KYN61-40.5 withdrawout metal-clad and metal-enclosed switchgear
KYN10-40.5AC drawout metal clad switchgear
KYN1-40.5 AC withdrawable metal-clad enclosed switchgear
XGN-40.5 fixed AC metal-enclosed switchgear
GBC-40.5 Handcar HV switchgear
Rated voltage 24KV switchgear(for 22KV,20KV, 15KVsystem)
KYN-24 withdrawable metal-clad switchgear
HRM6-24 Ring net SF6 circuit breaker switchgear ( for 22KV,20KV, 15KVsystem )
Rated votlage 12KV switchgear(for 11KV,10KV,6.6KV system)
KYN28A-12 withdrawable metal-clad enlosed switchgear
XGN-HKGN8-12 Fixed metal clad enclosed switchgear (for 11KV,10KV,6.6KV system)
HXGN-12 Ring Net Vacuum circuit breaker switchgear ( for 11KV,10KV,6.6KV system )
XGN15-12 Ring Net SF6 circuit breaker switchgear (for 11,10,6.6KV system)
Rated voltage 0.4KV low voltage switchgear(380V,400V,433v,440V system)
GCK LV withdrawable switchgear
GCS LV withdrawable switchgear
HMNS LV withdrawable switchgear
GGD LV distribution cabinet
XL-21 Power distribution box
MOTO Start swichgear
Modula 630K sersies of standard LV distribution box
plus 2.0 LV switchgear
GZDW series of microcomputer monitoring high-frequency DC switchgear
Soft start switchgear
Residential, customized power distribution box
PZ30, PZ40 distribution box
outdoor mobile box
Capacitance compensation box
The other switchgear (from 0.4KV to 33KV)We can OEM , ODM for you.)
Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.
Huanghua Group is one of the Top 500 Private Enterprises in comprehensive strength in China, mainly specializing in the production of high-low voltage power transmission and distribution equipment, including substation, power distribution automated switchgears, terminal devices, as well as high-low voltage components, etc. In view of being specialized in electric industry, Huanghua Group gradually grows into one of the leading enterprises in industrial electrical equipment field in China. The group has invested in Shanghai to establish Shanghai Huanghua (CNHK) Electric Industrial Zone. The industrial zone area is more than 80, 000 square meters.
For more than 30 years, Huanghau Group has always been insisting on the operation philosophy of "People oriented, Credit Based, Values Shared".
Nowadays, science and technology are under rapid development. We believe the human society's progress shall be highly promoted, and we will go with this trend to keep forging ahead actively.
We have passed ISO9001 Quality System Certification, ISO14001 Environment System Certification and other certificates on programs, including China Compulsory Certification (CCC) and CE. International certificates are under proceeding.
We are looking forward to cooperating with you and to creating a brilliant future together.
