HRM6 SF6 Gis-Gas Switchgear
1.General Description
1.1 Application: In the system of 50Hz, 3.6~12kV and below, for making and breaking of load current and short-circuit current, controlling and protecting.
1.2 Standards: IEC 62271-200.
1.3 Parameters: Rated voltage: 3.6-12kV.
Rated current: 630A.
Maximum rated current of capacitor: 125A.
2.Features
2.1.Compact design
2.2.Easy operation and installation
2.3.Reliable interlock
2.4.Less Maintenance
3.Technical Data
| No. | Item | Unit | Data |
| 3.1 | Rated voltage | kV | 12KV 24KV |
| 3.2 | Rated current | load break switchgear | A | 630 |
| Combined switchgear | A | 125 |
| 3.3 | Rated frequency | Hz | 50 |
3.4
| Rated short-circuit breaking current | kA | 31.5 |
| Rated short-time withstand current | kA | 20 |
| Rated active on-load breaking current | A | 630 |
| 3.5 | Rated peak withstand current | kA | 50 |
| 3.6 | Rated power frequency voltage withstands inter-phase, to earth and to the open contact | kV
| 42/48 |
| 3.7 | Thundering withstands voltage inter-phase, to earth and to the open the contact | kV | 75/85 |
| 3.8 | Mechanical life | times | 10000 |
| 3.9 | Rated take-over current | A | 3150 |
| 3.10 | Protection level | | IP65 |
| 3.11 | Operating mode | | Manual or automatic |
We also supply the following switchgears:
Rated votlage 40.5KV switchgear(for 33KV system)
KYN61-40.5 withdrawout metal-clad and metal-enclosed switchgear
KYN10-40.5AC drawout metal clad switchgear
KYN1-40.5 AC withdrawable metal-clad enclosed switchgear
XGN-40.5 fixed AC metal-enclosed switchgear
GBC-40.5 Handcar HV switchgear
Rated voltage 24KV switchgear(for 22KV,20KV, 15KVsystem)
KYN-24 withdrawable metal-clad switchgear
HRM6-24 Ring net SF6 circuit breaker switchgear ( for 22KV,20KV, 15KVsystem )
Rated votlage 12KV switchgear(for 11KV,10KV,6.6KV system)
KYN28A-12 withdrawable metal-clad enlosed switchgear
XGN-HKGN8-12 Fixed metal clad enclosed switchgear (for 11KV,10KV,6.6KV system)
HXGN-12 Ring Net Vacuum circuit breaker switchgear ( for 11KV,10KV,6.6KV system )
XGN15-12 Ring Net SF6 circuit breaker switchgear (for 11,10,6.6KV system)
Rated voltage 0.4KV low voltage switchgear(380V,400V,433v,440V system)
GCK LV withdrawable switchgear
GCS LV withdrawable switchgear
HMNS LV withdrawable switchgear
GGD LV distribution cabinet
XL-21 Power distribution box
MOTO Start swichgear
Modula 630K sersies of standard LV distribution box
plus 2.0 LV switchgear
GZDW series of microcomputer monitoring high-frequency DC switchgear
Soft start switchgear
Residential, customized power distribution box
PZ30, PZ40 distribution box
outdoor mobile box
Capacitance compensation box
The other switchgear (from 0.4KV to 33KV)We can OEM , ODM for you.)

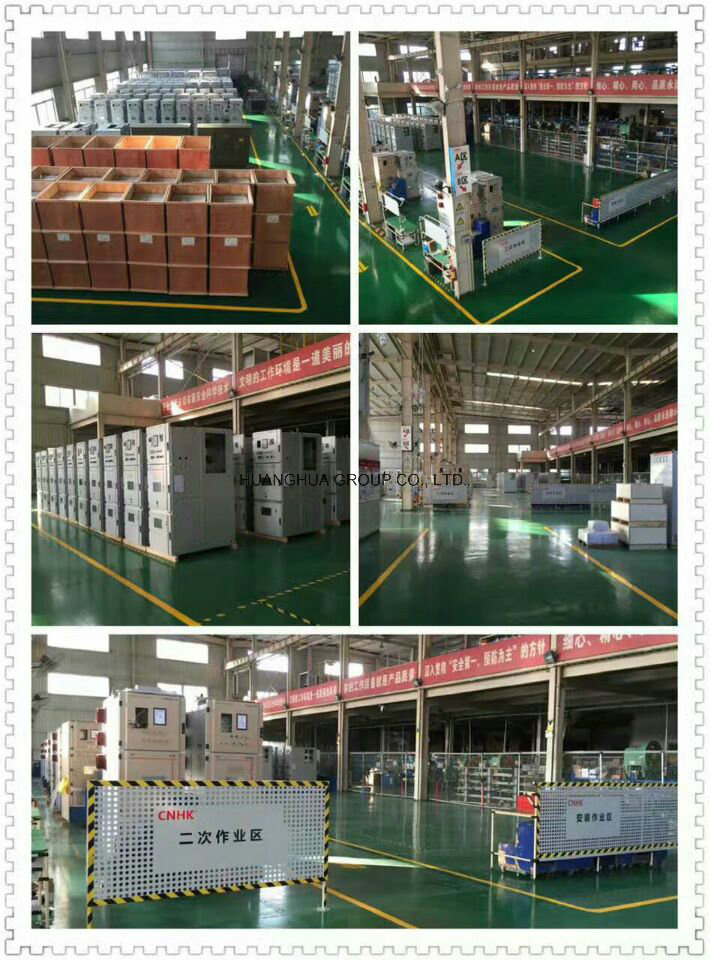

Huanghua Group is an enterprise group, which integrates industrial manufacturing, import and Export, founded in 1980. Now the group has more than 500 employees. There are five subsidiaries, and the products have founded ready markets in all regions of China and some of oversea markets. CNHK Electrics Co., Ltd., is the head of the Group. It is the largest company in terms of production and sales volume of high voltage electrical components in the group. The second one is producing high voltage power transmission. The third one is producing transformer. The fourth one is producing cabinet and the fifth one is a domestic trade company.
