E3f M18 Series 10cm Diffuse Reflection Photoelectric Switch, Optical Photo Sensor

Name: E3f M18 Series 10cm Diffuse Reflection Photoelectric Switch, Optical Photo Sensor
Brand: all-electronics-online.com
SKU: 840376595
Availability: InStock
Rating: 4.3 (148 reviews)

Price:	US $ 1-10piece/pieces
Min Order:	1piece/pieces
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	E3F

Product Description

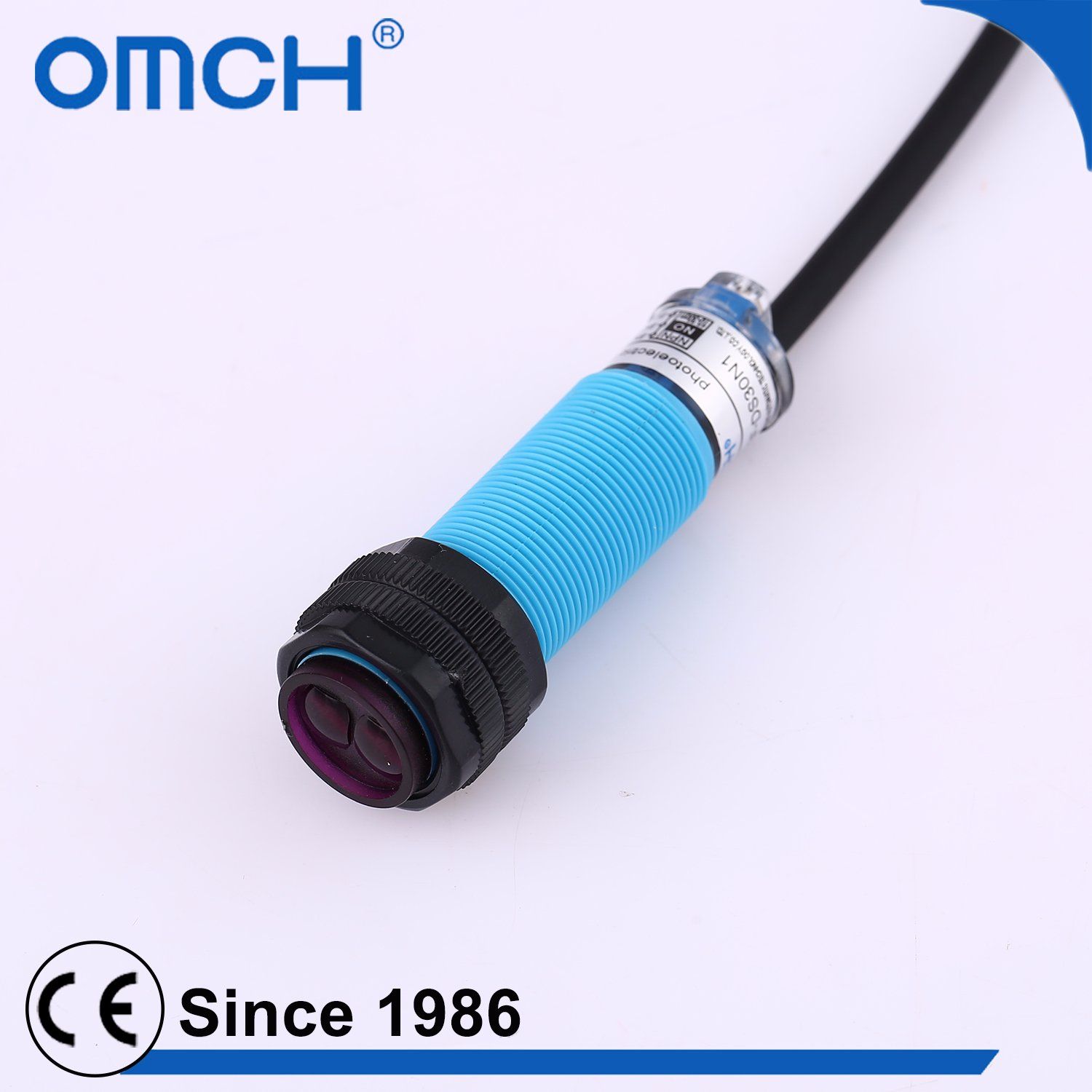

E3F M18 Series 10cm Diffuse Reflection Photoelectric Switch, Optical Photo Sensor

PRODUCT DISPLAY

PRODUCT DESCRIPTION

Feature

We sincerely welcome agents from all over the world

Power supply reversal connection protection;short-circuit protection,can directly connect with PLC
Newly added current over-load protection
Long service life, high reliability and strong resistance property to environment
Red Led indicates that it's avaible to detect the sensor operationg state
Newly added metal housing to improve the installation intensity
Counter measure to improve the housing intensity and to solve disconnection
IP65 protection structure

Type and Specification
We sincerely welcome agents from all over the world

Dimension				M18*1
Mounting way				Diffuse type
Type	DC type	NPN	NO	AE3F-DS10N1	AE3F-DS30N1
			NC	AE3F-DS10N2	AE3F-DS30N2
			NO+NC	AE3F-DS10N3	AE3F-DS30N3
		PNP	NO	AE3F-DS10P1	AE3F-DS30P1
			NC	AE3F-DS10P2	AE3F-DS30P2
			NO+NC	AE3F-DS10P3	AE3F-DS30P3
	AC type	Two wire	NO	AE3F-DS10A1	AE3F-DS30A1
			NC	AE3F-DS10A2	AE3F-DS30A2
		Three Wire No
		Reply output
Dectection distance				10m+/-10%	10~30m+/-10%
Set distance				Transparent/Opaque Object	Transparent/Opaque Object
Standard detection object				Fixed	sensitivity adjuster
Response frequency				1ms	1ms
