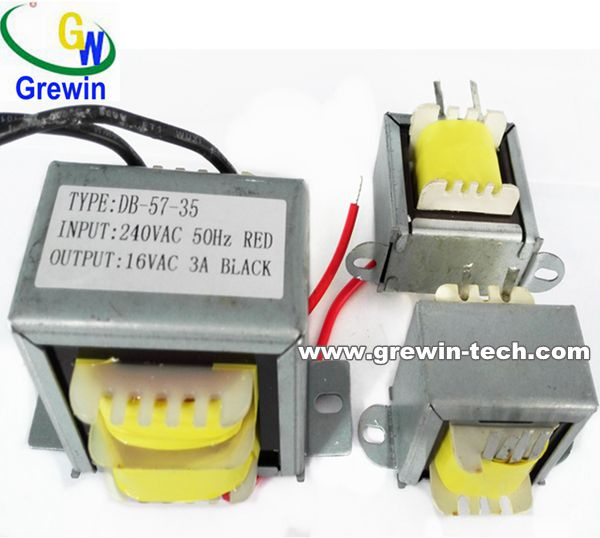

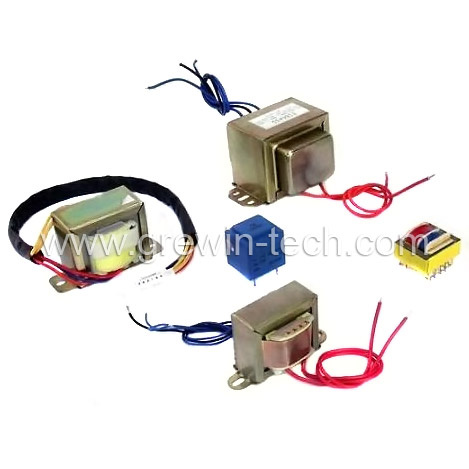

Ei PCB Power Silicon Steel Transformer
| Price: |
US $ 0.6-1.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GWEIEI-28, EI-35, EI-41, EI-48, EI-57, EI-66 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Low Frequency Transformer |
| Model: |
Ei-28, Ei-35, Ei-41, Ei-48, Ei-57, Ei-66, Ei-76 |
| Power: |
0.15-1, 500W |
| Application: |
Audio |
| Phase: |
Single |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Grewin Ei Low Frequency Transformer |
| Coil: |
Ei Core |
Product Description
Name:EI core Low Volatge Transformer Silicon Steel Transformer for Communication
1.Product Specification:
1). Models:
EI28, EI30, EI35, EI41, EI48,EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.
2). Maximum output: 1.2W, 2W, 4W,12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.
3). Input:
100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.
4). Output:
AC(0--380V); DC(0--50V)
2.Technical Parameter Table:
Model | Power | Dimension(cm) | Weight (KG) | Voltage Regulation | Approval Mark |
A(cm)
±1.5 | B(cm)
±2 | C(cm)
±2 | D(cm)
±2 | E(cm)
±2 |
| GWT-EI28 | 1.5W | 43 | | 30 | 38 | 28 | 0.11 | 35 | CE,TUV, |
| GWT-EI35 | 3.0W | 47 | | 37 | 38 | 33 | 0.15 | 22 | CE,TUV, |
| GWT-EI41 | 11.0W | 54 | | 43 | 47 | 35 | 0.32 | 16.5 | CE,TUV, |
| GWT-EI48 | 25.0W | 62 | | 50 | 65 | 43 | 0.57 | 13.1 | CE,TUV, |
| GWT-EI57 | 40.0W | 73 | | 59 | 65 | 51 | 0.84 | 11.8 | CE,TUV, |
| GWT-EI66 | 80.0W | 83 | | 68 | 80 | 58 | 1.38 | 9.3 | CE,TUV, |
| GWT-EI76 | 140W | 64 | 70 | 76 | 85 | 68 | 2.25 | 7.6 | CE,TUV, |
| GWT-EI86 | 180W | 72 | 75 | 86 | 92 | 73 | 2.82 | 7.1 | CE,TUV, |
| GWT-EI96 | 250W | 80 | 81 | 96 | 90 | 82 | 3.36 | 6 | CE,TUV, |
3.Application:
1). Measuring instruments.
2). Communication prducts.
3). Medical instruments.
4). Audio & Video
5). Elevator
6). Machinery
4.Features:
1) Important components for electronic equipment and wireless equipment
2) Power: 0.15-1,500W
3) The transformer core is made of high quality silicone laminated steel
4) All products are 100% test passed and hi-pot shock
5) Clean, tidy, easy for installation
5.Advantage:
1).UL, CUL, CE, ROHS, ISO9001:2008
2).We offer custom-made transformers, OEM and ODM are welcome
3).We deliver the quality you expect at consistently competitive prices
4).Transformer quality lifetime:10 Years.
5).Specialty Sales service:5 -10 Years
6).Transformers Test: 100% test before the shipment
