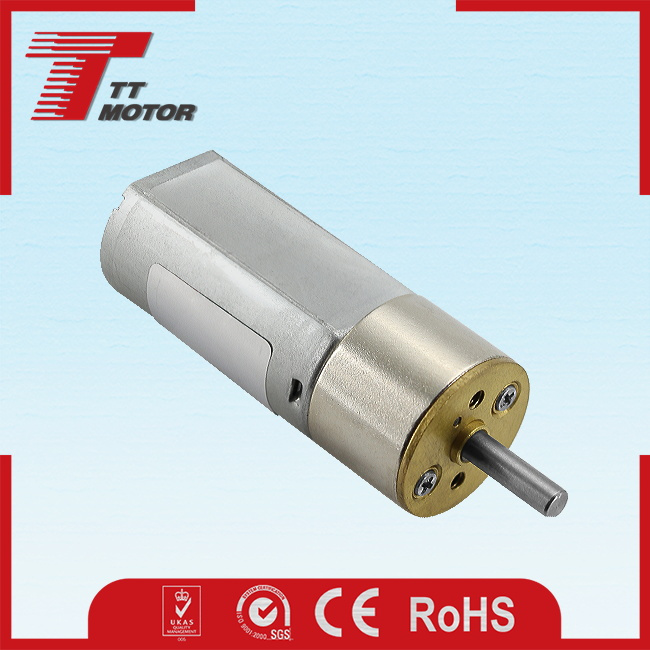

Electric 12V dc mini motor for vacuum cleaner
Main Features:1.16mm gearbox plus 030&050 permanent magnet DC motor
2.Small size dc gear motor with low speed and big torque
3.16mm gear motor provide 0.05Nm torque and more reliable
4.Suitable to small diameter, low noise and big torque application
5.Dc gear motors can match encoder,3ppr
6.Reduction ratio:3,10,17,20,35,63,86,115,150,250,360
Home appliance, electric curtai, door lock, automatic tv rack, slot machine, currency acount machine, office autination, automatic door lock. | Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A |
| TFF-050SH-13120 | 6.0 | 12500 | 45 | 10000 | 10 | 225 | 1.03 | 50 | 1.30 |
| TFF-050SH-07360 | 12.0 | 8000 | 30 | 5700 | 10 | 110 | 0.6 | 33 | 0.29 |
| TFF-050SH-08240 | 12.0 | 12800 | 35 | 9500 | 10 | 150 | 0.99 | 43 | 0.55 |

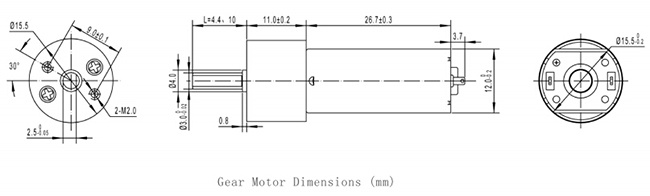

Gear motor technical data : GM16-050SH-13120-xxx
| Reduction ratio | 3 | 10 | 20 | 35 | 63 | 86 | 115 | 150 | 250 | 360 |
| Length mm | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 | 11 |
| No-load speed rpm | 4000 | 1200 | 600 | 340 | 190 | 140 | 105 | 80 | 50 | 35 |
| Rated speed rpm | 3300 | 1000 | 500 | 285 | 158 | 116 | 92 | 73 | 46 | 33 |
| Rated torque kg.cm | 0.024 | 0.08 | 0.14 | 0.25 | 0.44 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Max.momentary tolerance torque kg.cm | 0.12 | 0.4 | 0.7 | 0.8 | 1.1 | 1.9 | 2.6 | 3.0 | 3.0 | 3.0 |
Product ApplicationAutomatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
1.Accessory of automobile
2.Paper feed
3.Widely used in automatic actuator,electric lock
4.Power Lock,Monitor
5.Precision instrument
6.Mini mechanism,Robot
7.Financial apparatus,auto DVD
8.Financial apparatus, Ad equipment Related Products Packing & DeliveryPackaging: single carton packing, 100 pieces per box.
Shipping time:
DHL: 3-5 working days ;
UPS: 5-7 working days;
TNT: 5-7 working days;
FedEx: 7-9 working days;
EMS: 12-15 working days;
China Post: Depends on ship to which country;
Sea: Depends on ship to which countryOur company TT Motor (HK) Industrial Co., Ltd has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT Motor aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.Certifications FAQQ: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirn the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.
Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q: How long is the deliver[Producing] and shipping?
A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.
Q: My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accept,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should by paid before shipping.
TT Motor (HK) Industrial Co., Ltd. Has been specializing in Micro Motors, Gear Motors, Brushless Motors and their respective parts since 2006. With a unique geographical location, closing to HK, located in Shenzhen city, TT Motor has a strong ability of overall processed design and high quality products. We get a lot of appreciation from our honoured clients.
Our products are widely used in entertainment systems, automobiles, household and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 90% of our products worldwidely.
Our company has passed ISO9001 Quality Management System and China Compulsory Certification. We have built our new factory with 6400 square meters and established new products development center and mould design center with many engineering technicians. Simultaneously, we are concentrating on creating our own brand, for which we have been increasing and renewing our equipments all the time and have improved the software and hardware a lot, so that our products have been innovated in technology and added in variety.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
