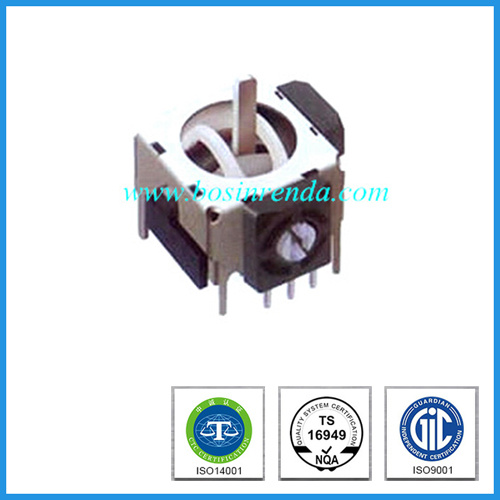

Electric 3D Joystick Potentiometer with Switch 10kohm

Name: Electric 3D Joystick Potentiometer with Switch 10kohm
Brand: all-electronics-online.com
SKU: 721355362
Availability: InStock
Rating: 4.7 (40 reviews)

Price:	US $ 0.1/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Potentiometer, rotary potentiometers, joystick potentiometer, metal shaft potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

This type joystick potentiometer mainly use on electrical toys, Sony PS3.

Our products have superior operational feeling, integrated tact switch and long operational life.

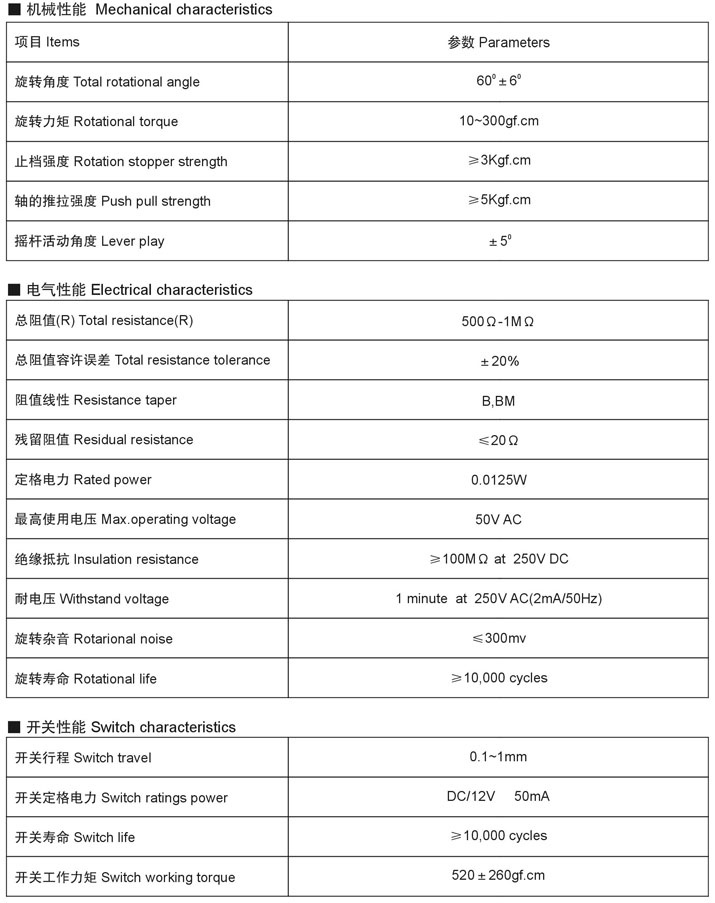

Please check below specification.

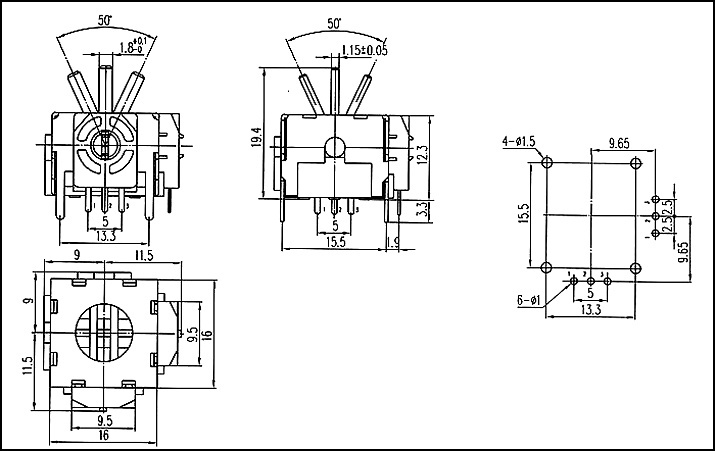

1.Mechanical characteristics for joystick potentiometer
1.1 Figure of lever operation:	Circular Operating
1.2 Operating angle of lever:	60°±6°
1.3 Stopper Strength:	3.1Kgf.cm Min 3Sec
1.4 Push-Pull Strength:	Push/Pull:5.0Kgf Min 3Sec.
1.5 Operating Force:	160±40gf
1.6 Accuracy of rest position:	±5°
2.Electrical characteristics
2.1 Total Resistance:	5KΩ~100KΩ
2.2 Resistance Tolerance:	±20%
2.3 Resistance Taper:	B
2.4 Max. operating Voltage:	Taper B:AC 50V or DC 5.0V
2.5 Rated Power:	Taper B:0.0125W
2.6 Withstand Voltage:	1 minute at AC 300V
2.7 Residual Resistance:	50Ω Max
3.Durability
3.1 Rotational Life:	Standard life :1 Million Cycles Min.
4. Switch Characteristics
4.1 Rated Power:	12 V DC, 50 MA
4.2 Operating Force:	820±260gf
4.3 Travel:	0.5+0.5/-0.4mm
4.4 Operating life:	100,000 Cycles min

Prod Model:	RJ1612
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Produce Capacity:	30kpcs Per Day
Resistance:	Variable Resistor
Function For Resistance:	Load Resistor
Installation:	DIP Resistor
Material:	Carbon Film Resistor
Package Type:	Throught Hole
Type:	Rotary Potentiometer
Brand:	BS

Bosin Electronics Ltd is invested by Bosin holdings which established in 2006.

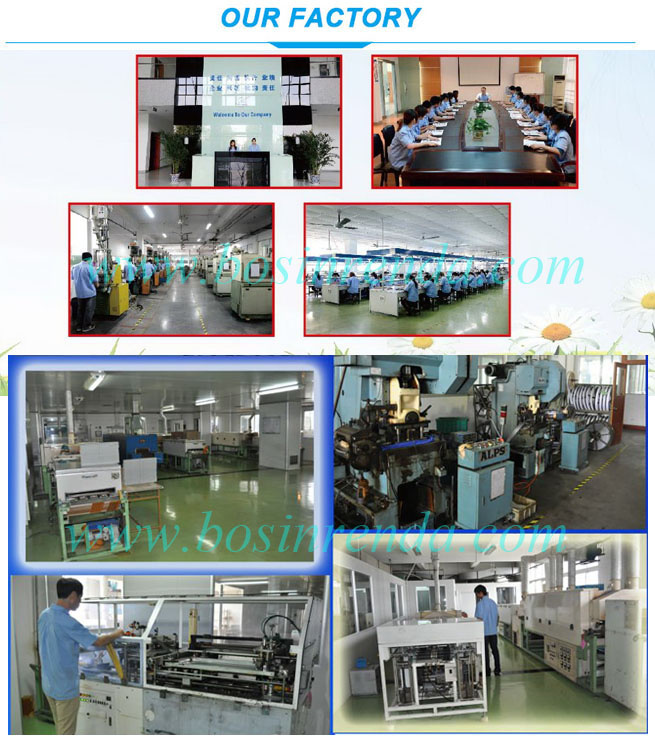

The copmany specializing in designing and manufacturing potentiometer, encoder, switch and DC motors. Now our company factory area is about 10000 m2, employees more than 600 persons and technicians more than 60 persons. And we all staffs have strived for five years to build up a set of completely production flow including of developing new product, mould manufacture, spare parts or components manufacture, finished product assembly. We build up a good image of " Bosin" in our field and the products already accepted by LG, PHILIPS, SANYO, BBK, Malata, etc. For a long time.

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
