Prod Model: |
YEJ |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Yej90L-4 |
Power: |
1.5kw |
Voltage: |
380V |
Efficiency: |
79% |
Power Factor: |
0.79 Cosφ |
Stall /Rated Current: |
6.5A |
Stall /Rated Torque: |
2.3 N.M |
Static Braking Torque: |
15n.M |
No Load Brake Time: |
0.2s |
Exciting Power: |
60W |
Number Of Stator: |
Three-Phase |
Function: |
Driving |
Brand: |
Kd |
Product Description

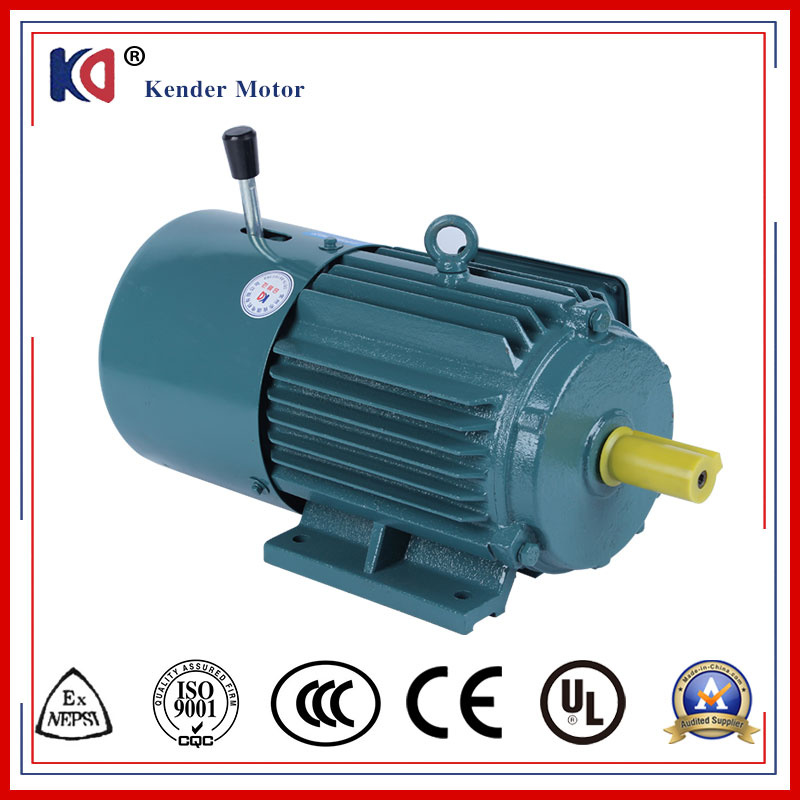

Technical parameter of Electric Brake AC Motor with Squirrel Cage Rotor
Rated voltage | 220V/660V/380/660V/660V/1140V |
Rated Frequency | 50HZ/60HZ |
Protection class | IP55 |
work mode | S1 |
Insulation class | B,F,H |
pole | 2-8 |
Rotor | Squirrel cage rotor |
Advantage and Application of Electric Brake AC Motor with Squirrel Cage Rotor
Advantage | Application |
1,High efficiency and torque | 1,Pack-aging machinery |
2,Energy saving | 2,Woodworker machinery |
3,Little vibration, | 3,Food processing machinery |
4,Low noise | 4,Chemical engineering machinery |
5,safe and reliable operation | 5,Textile machinery |
| 6.Construction machinery |
Technical Data of Electric Brake AC Motor with Squirrel Cage Rotor
Model | Power (kW) | Speed (r/min) | Voltage (380V) | Efficiency (%) | Power Factor (cos) | Stall/Rated Current (A) | Stall/Rated Torque | Max/Rated Torque | Static braking torque | No Load Brake Time | Exciting Power |
N.m | s | W |
80M1-2 | 0.75 | 2830 | 1.81 | 75 | 0.84 | 6.5 | 2.2 | 2.3 | 7.5 | 0.2 | 50 |
80M2-2 | 1.1 | 2.52 | 77 | 0.86 | 7.5 | 0.2 | 50 |
90S-2 | 1.5 | 2840 | 3.44 | 78 | 0.85 | 7 | 15 | 0.2 | 60 |
90L-2 | 2.2 | 4.83 | 80.5 | 0.86 | 15 | 0.2 | 60 |
100L-2 | 3 | 2880 | 6.39 | 82 | 0.87 | 30 | 0.2 | 80 |
112M-2 | 4 | 2890 | 8.17 | 85.5 | 0.87 | 40 | 0.25 | 110 |
132S1-2 | 5.5 | 2900 | 11.1 | 85.5 | 0.88 | 7 | 2 | 75 | 0.25 | 130 |
132S2-2 | 7.5 | 15.02 | 86.2 | 75 | 0.25 | 130 |
160M1-2 | 11 | 2930 | 21.78 | 87.2 | 0.88 | 150 | 0.35 | 150 |
160M2-2 | 15 | 29.36 | 88.2 | 2.2 | 150 | 0.35 | 150 |
160L-2 | 18.5 | 2930 | 35.49 | 89 | 0.89 | 150 | 0.35 | 150 |
180M-2 | 22 | 2940 | 42.2 | 89 | 200 | 0.35 | 150 |
200L1-2 | 30 | 2950 | 56.9 | 90 | 300 | 0.45 | 200 |
200L2-2 | 37 | 69.79 | 90.5 | 300 | 0.45 | 200 |
225M-2 | 45 | 2970 | 83.96 | 91.5 | 450 | 0.45 | 200 |
801-4 | 0.55 | 1390 | 1.51 | 73 | 0.76 | 6 | 2.4 | 2.3 | 7.5 | 0.2 | 50 |
802-4 | 0.75 | 2.01 | 74.5 | 0.76 | 2.3 | 7.5 | 0.2 | 50 |
90S-4 | 1.1 | 1400 | 2.75 | 78 | 0.78 | 6.5 | 15 | 0.2 | 60 |
90L-4 | 1.5 | 3.65 | 79 | 0.79 | 15 | 0.2 | 60 |
100L1-4 | 2.2 | 1430 | 5.03 | 81 | 0.82 | 7 | 2.2 | 30 | 0.2 | 80 |
100L2-4 | 3 | 6.82 | 82.5 | 0.81 | 30 | 0.2 | 80 |
112M-4 | 4 | 1440 | 8.77 | 84.5 | 0.82 | 40 | 0.25 | 110 |
132S-4 | 5.5 | 11.64 | 85.5 | 0.84 | 75 | 0.25 | 130 |
132M-4 | 7.5 | 15.41 | 87 | 0.85 | 75 | 0.25 | 130 |
160M-4 | 11 | 1460 | 22.61 | 88 | 0.84 | 150 | 0.35 | 150 |
160L-4 | 15 | 30.3 | 88.5 | 0.85 | 2.2 | 150 | 0.35 | 150 |
180M-4 | 18.5 | 1470 | 35.9 | 91 | 0.86 | 2 | 200 | 0.35 | 150 |
180L-4 | 22 | 42.48 | 91.5 | 200 | 0.35 | 150 |
200L-4 | 30 | 56.82 | 92.2 | 0.87 | 300 | 0.45 | 200 |
225S-4 | 37 | 1480 | 70.39 | 91.8 | 0.87 | 1.9 | 450 | 0.45 | 200 |
225M-4 | 45 | 84.17 | 92.3 | 0.88 | 450 | 0.45 | 200 |
90S-6 | 0.75 | 940 | 2.25 | 72.5 | 0.7 | 5.5 | 2 | 2.2 | 15 | 0.2 | 60 |
90L-6 | 1.1 | 3.16 | 73.5 | 0.72 | 5.5 | 15 | 0.2 | 60 |
100L-6 | 1.5 | 3.97 | 77.5 | 0.74 | 6 | 30 | 0.2 | 80 |
112M-6 | 2.2 | 5.61 | 80.5 | 0.74 | 40 | 0.25 | 110 |
132S-6 | 3 | 960 | 7.23 | 83 | 0.76 | 6.5 | 75 | 0.25 | 130 |
132M1-6 | 4 | 9.4 | 84 | 0.77 | 75 | 0.25 | 130 |
132M2-6 | 5.5 | 12.56 | 85.3 | 0.78 | 2 | 75 | 0.25 | 130 |
160M-6 | 7.5 | 970 | 16.99 | 86 | 150 | 0.35 | 150 |
160L-6 | 11 | 24.63 | 87 | 0.78 | 150 | 0.35 | 150 |
180L-6 | 15 | 31.44 | 89.5 | 0.81 | 1.8 | 200 | 0.35 | 150 |
200L1-6 | 18.5 | 37.71 | 89.8 | 0.83 | 300 | 0.45 | 200 |
200L2-6 | 22 | 44.65 | 90.2 | 0.83 | 300 | 0.45 | 200 |
225M-6 | 30 | 980 | 59.45 | 0.85 | 1.7 | 450 | 0.45 | 200 |
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
FAQ
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 50% T/T in advance,50% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certificate do you have?
A: We have CE, ISO9001,CCC ,EX and so on.
