Flat cable BVV Solid Conductor PVC Insulation PVC Cable
1.Product description:(1) Conductor: Pure Copper/ CCA(2) Type of the conductor: Solid/Stranded(3) Insulation: PVC(4) Normal of area: (1/2/3/4/5)x (1.0mm2 - 70mm2)(5) Voltage: 300/500V 450/750V 600/1000V(6) Core color: Red, brown, green, yellow/green, black, blue, yellow, etc.(7) Standard: BS6004(8) Code name: BVV 2.Application: Suitable for surface wiring, indoor or outdoor. 4.Technical Data:BVVCore number* nominal cross section
mm2 | Conductor type | Rated value of sheath thickness
mm | Rated value of sheath thickness
mm | Upper Value of average overall diameter
mm | Minimum insulation resistance under temperature 700C
MΩ.km | |
| |
| 2×1.5 | 1 | 0.7 | 1.2 | 10.0 | 0.011 | |
| 2 | 0.7 | 1.2 | 10.5 | 0.010 | |
| 2×2.5 | 1 | 0.8 | 1.2 | 11.5 | 0.010 | |
| 2 | 0.8 | 1.2 | 12.0 | 0.009 | |
| 2×4 | 1 | 0.8 | 1.2 | 12.5 | 0.0085 | |
| 2 | 0.8 | 1.2 | 13.0 | 0.0077 | |
| 2×6 | 1 | 0.8 | 1.2 | 13.5 | 0.0070 | |
| 2 | 0.8 | 1.2 | 14.0 | 0.0065 | |
| 2×10 | 1 | 1.0 | 1.4 | 16.5 | 0.0070 | |
| 2 | 1.0 | 1.4 | 17.5 | 0.0065 | |
| 2×16 | 2 | 1.0 | 1.4 | 20.0 | 0.0052 | |
| 2×25 | 2 | 1.2 | 1.4 | 24.0 | 0.0050 | |
| 2×35 | 2 | 1.2 | 1.6 | 27.5 | 0.0044 | |
| 3×1.5 | 1 | 0.7 | 1.2 | 10.5 | 0.011 | |
| 2 | 0.7 | 1.2 | 11.0 | 0.010 | |
| 3×2.5 | 1 | 0.8 | 1.2 | 12.0 | 0.010 | |
| 2 | 0.8 | 1.2 | 12.5 | 0.009 | |
| 3×4 | 1 | 0.8 | 1.2 | 13.0 | 0.0085 | |
| 2 | 0.8 | 1.2 | 13.5 | 0.0077 | |
| 3×6 | 1 | 0.8 | 1.4 | 14.5 | 0.0070 | |
| 2 | 0.8 | 1.4 | 15.5 | 0.0065 | |
| 3×10 | 1 | 1.0 | 1.4 | 17.5 | 0.0070 | |
| 2 | 1.0 | 1.4 | 19.5 | 0.0065 | |
| 3×16 | 2 | 1.0 | 1.4 | 21.5 | 0.0052 | |
| 3×25 | 2 | 1.2 | 1.4 | 26.0 | 0.0050 | |
| 3×35 | 2 | 1.2 | 1.6 | 29.0 | 0.0044 | |
| 4×1.5 | 1 | 0.7 | 1.2 | 11.5 | 0.011 | |
| 2 | 0.7 | 1.2 | 12.0 | 0.010 | |
| 4×2.5 | 1 | 0.8 | 1.2 | 13.0 | 0.010 | |
| 2 | 0.8 | 1.2 | 13.5 | 0.009 | |
| 4×4 | 1 | 0.8 | 1.4 | 14.5 | 0.0085 | |
| 2 | 0.8 | 1.4 | 15.0 | 0.0077 | |
| 4×6 | 1 | 0.8 | 1.4 | 16.0 | 0.0070 | |
| 2 | 0.8 | 1.4 | 17.0 | 0.0065 | |
| 4×10 | 1 | 1.0 | 1.4 | 19.0 | 0.0070 | |
| 2 | 1.0 | 1.4 | 20.5 | 0.0065 | |
| 4×16 | 2 | 1.0 | 1.4 | 23.5 | 0.0052 | |
| 4×25 | 2 | 1.2 | 1.6 | 27.5 | 0.0050 | |
| 4×35 | 2 | 1.2 | 1.6 | 32.0 | 0.0044 | |
| 5×1.5 | 1 | 0.7 | 1.2 | 12.0 | 0.011 | |
| 2 | 0.7 | 1.2 | 12.5 | 0.010 | |
| 5×2.5 | 1 | 0.8 | 1.2 | 14.0 | 0.010 | |
| 2 | 0.8 | 1.2 | 14.5 | 0.009 | |
| 5×4 | 1 | 0.8 | 1.4 | 16.0 | 0.0085 | |
| 2 | 0.8 | 1.4 | 17.0 | 0.0077 | |
| 5×6 | 1 | 0.8 | 1.4 | 17.5 | 0.0070 | |
| 2 | 0.8 | 1.4 | 18.5 | 0.0065 | |
| 5×10 | 1 | 1.0 | 1.4 | 21.0 | 0.0070 | |
| 2 | 1.0 | 1.4 | 22.0 | 0.0065 | |
| 5×16 | 2 | 1.0 | 1.6 | 26.0 | 0.0052 | |
| 5×25 | 2 | 1.2 | 1.6 | 31.5 | 0.0050 | |
| 5×35 | 2 | 1.2 | 1.6 | 35.0 | 0.0044 | |
Note: 1.Conductor structure is selected according to GB/T3956.Type 1 is adopted as solid core conductor and type 2 is adopted as stranded conductor.
2.Insulator:PVC/C type PVC mixture is adopted as insulating material.
3.Sheath:PVC/ST4 model PVC mixture should be adopted as the inner sheath.
4.The average overall diameter should be within the limitation stipulation of the table.
FAQ:Q1. What kind of products can your company supply? A: We specialize in supplying network cable, coaxial cable, power cable ,control cable , telephone cable, speaker cable and ect. Q2. What's your MOQ?A: The MOQ of long meter cable is 50 km, or we can negociate. Q3. What's your delivery time? A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order. Q4. What are your payment terms?A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you. Q5. What's your trade term ? A: We can accept FOB, CIF, EXW term. Q6. What's your conventional packing ? A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand. Q7. Can your factory customize cables based on clients' samples or data sheet ? A: Yes, we can. Q8. Can you offer me a free sample?
A: Yes, we do, that is a start of business I think, and you will only pay the cost of delivery, which we will return it to you when you put the order.
We are specialized in manufacturing of cables for more than 20 years. Can product Building cable, Electrical equipment cable, Automobile cable, Control cable, Coaxial cable, Network communication cable, Audio cable, Monitor cable and the like. We also offer OEM and ODM services.

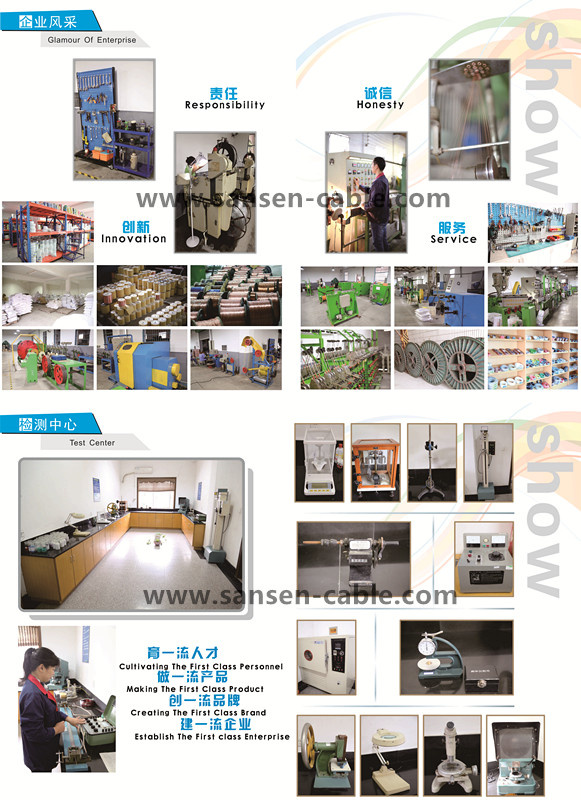

Located in Huzhou, Zhejiang Province, where is between Shanghai and Hangzhou, we enjoy convenient transportation, thus we can ship goods in Shanghai Port as well as Ningbo Port. Our factory totally covers an area of 3, 000 square meters. High skilled staffs and technical engineers have been dedicated to cable techniques since our company was founded.
At the present, most of our customers are domestic trading companies, and 90% products are exported to all over the word via them; Meanwhile we are developing oversea market by ourselves.
We are keen on building long-term solid relationship with all serious buyers, with sincerity, we welcome you to China to visit our factory and office.
