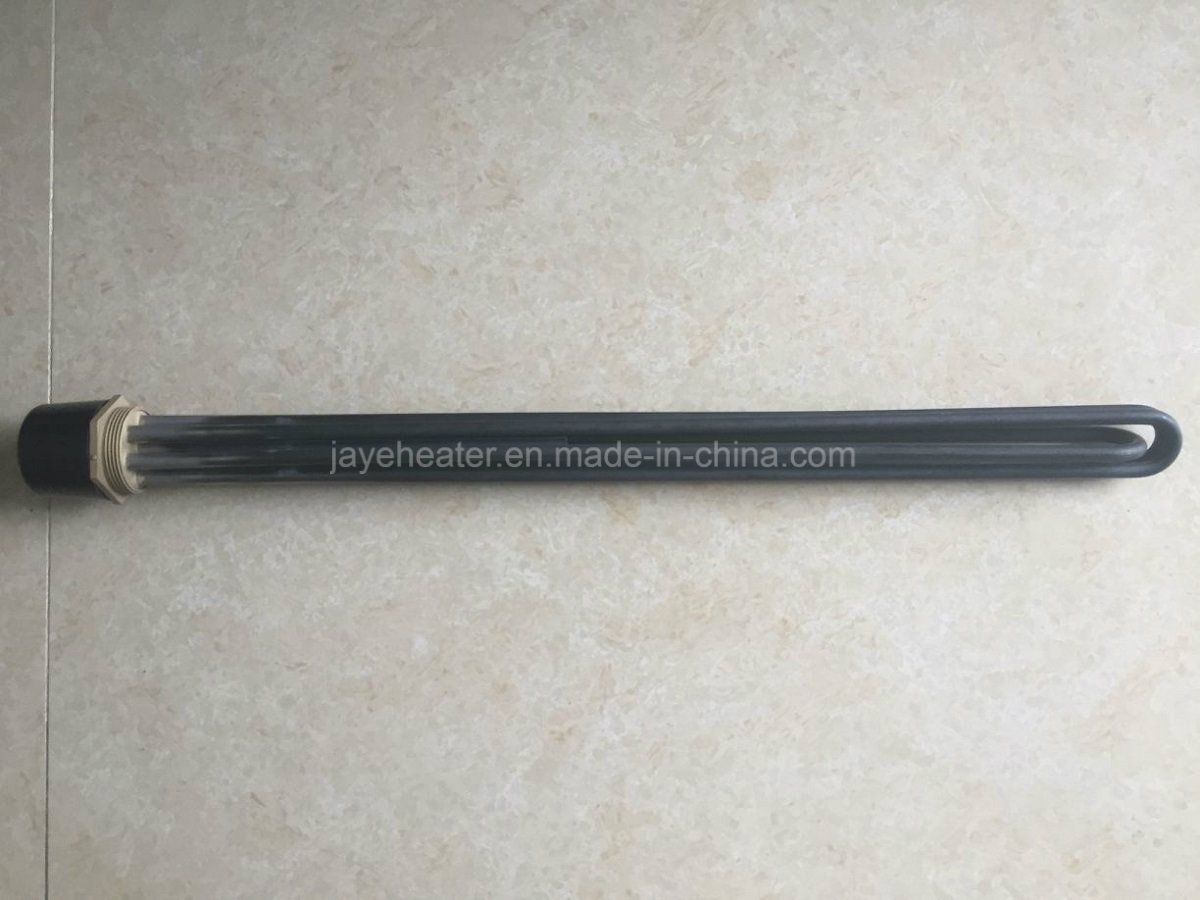

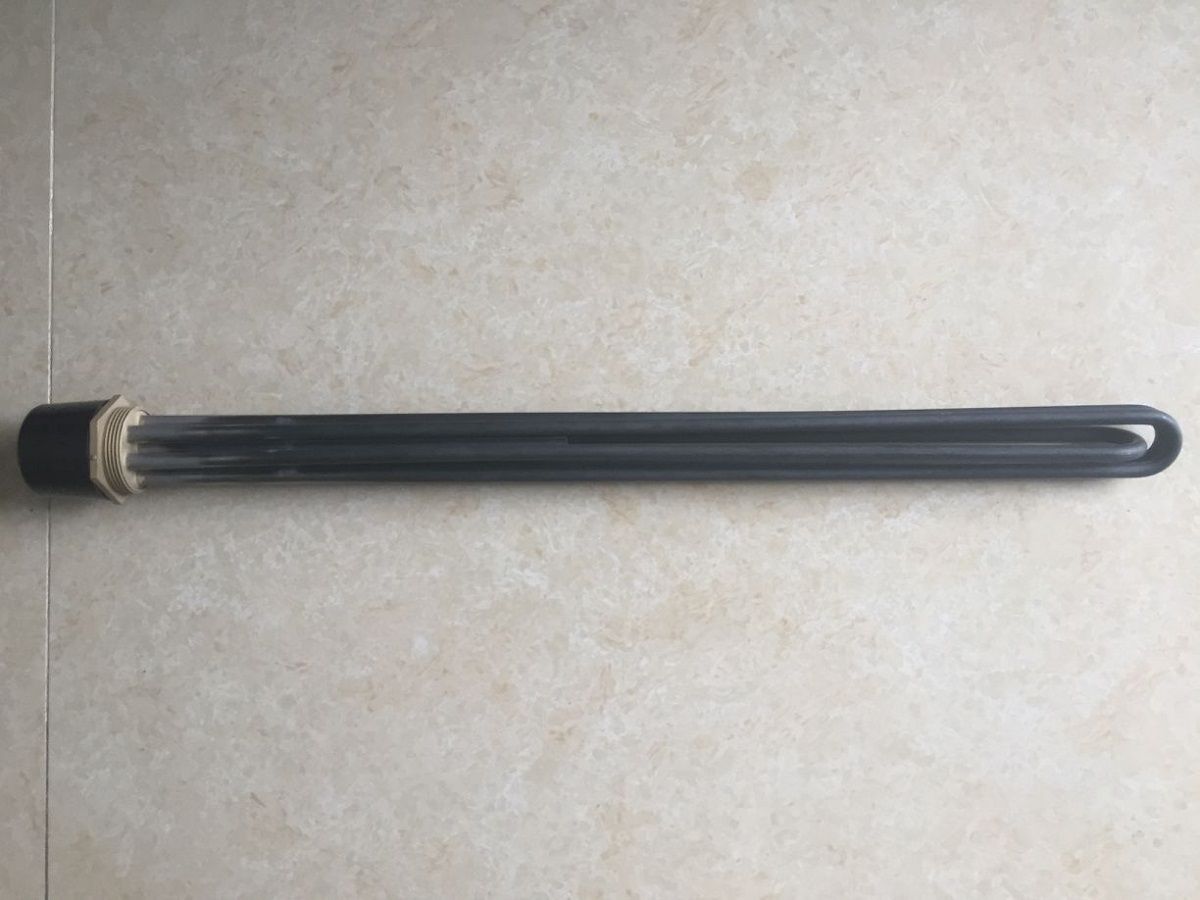

Electric Flange Immersion Boiler Water Heater Element

Name: Electric Flange Immersion Boiler Water Heater Element
Brand: all-electronics-online.com
SKU: 726853672
Availability: InStock
Rating: 4.3 (131 reviews)

Price:	US $ 5-50/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Flange Immersion Heater
Flanged heaters are commonly used in many chemical, petroleum and water based applications.JAYE flanged heaters allow the flexibility of using many different alloys to help resist corrosion and maintain life longevity of the flanged heating element Steel flanges are typically used for lubricant oils, heavy and light oils, waxes as well as mildly corrosive liquids and low flow gas heating.Flange immersion heaters are constructed of hairpin bent tubular heater elements brazed or welded into ANSI standard flanges or plate flanges of various shapes and sizes. ANSI flange heaters are typically used for large volume, high power and/or higher pressure applications. Plate flange heaters are typically custom designed for use in smaller pieces of equipment such as boilers and chillers.

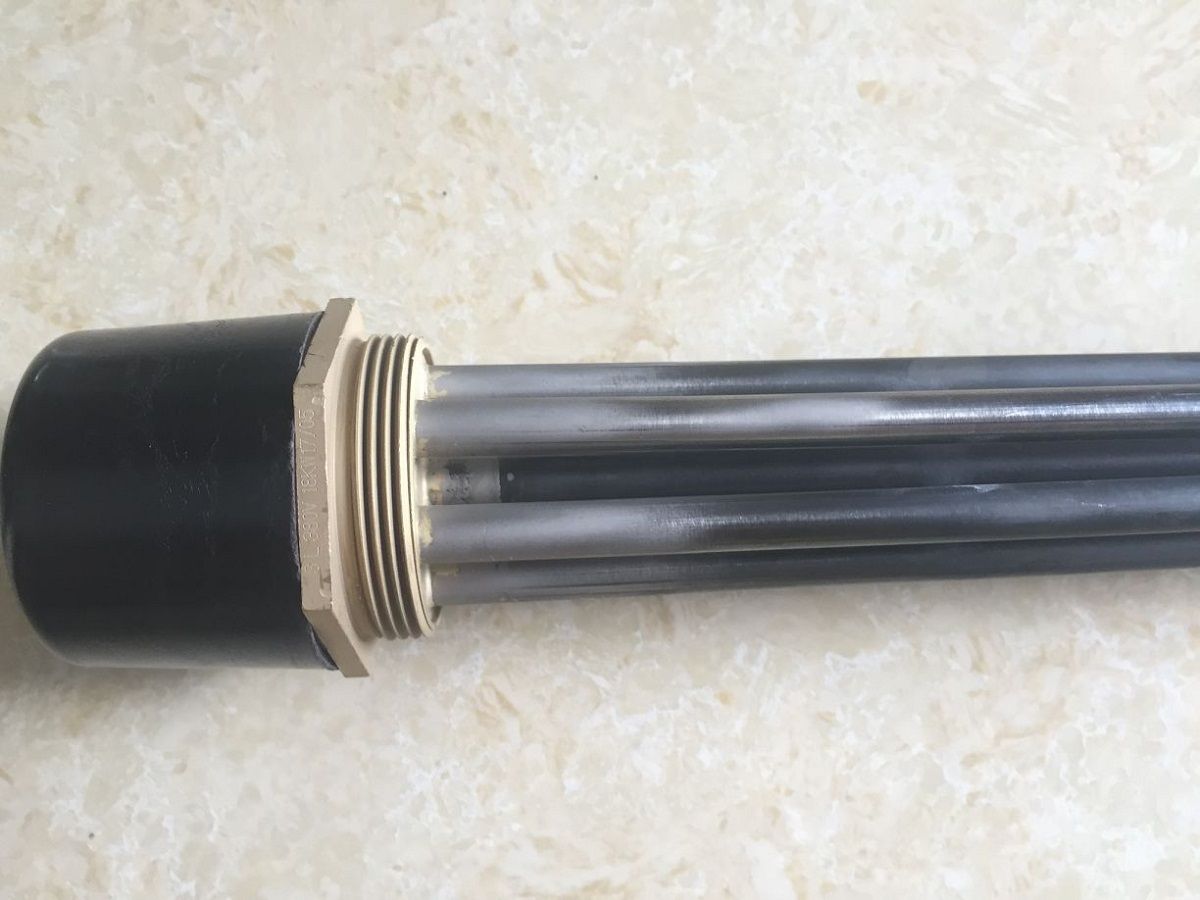

There are two connections, one thread connection, commonly used specifications size G1 / 2--2 inch, the second is the flange connection. Also known as the flat flange connection . Common specifications size DN50mm - DN300mm, flange electric tube flange commonly used materials are brass, stainless steel, 10 steel, pipe material commonly used 10 steel, stainless steel, copper. Common specifications, 1.5KW, 3KW, 6KW, 9KW , 12KW, 15KW, 30KW to 500kw, etc. Used for electric water boilers, electric boilers, solar energy systems, solar water tanks, chemical pools, baths, swimming pools and other places to be heated.
Features

1.ANSI flanges 3" to 14" standard; up to 40" available, power ratings from 1kW to 1 MW+ and custom fit to application demands

2.Standard 150lb flanges; 300lb & 600lb readily available, ensures proper pressure rating for your needs

3.Copper, steel, SS and Incoloy® and other heater sheaths available, custom tailored to application requirements

4.Element Spacers & Supports, maximizes heater life and application performance

5.Recompacted element bends provide longer life by ensuring insulation integrity

Product applications

Process Air & Gas Heating Process Air & Gas Heating
Process Chemical Reactors Process Chemical Reactors
Boilers and Water Heating Boilers and Water Heating
Rinse Tank Heating Rinse Tank Heating
Parts Cleaning Solutions Parts Cleaning Solutions
Lube Oil & Fuel Oil Heating Lube Oil & Fuel Oil Heating

Prod Model:	Flange Immersion Heater
Usage:	Oil, Water, Chemical, Petroleum and Air Heating
Voltage:	110V-550V
Sheath Material:	SUS 304 316 321, Incoloy
HS Code:	85168000

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
