Electric Silicone Resistance Rubber Mug Baking Pad Heater

Name: Electric Silicone Resistance Rubber Mug Baking Pad Heater
Brand: all-electronics-online.com
SKU: 718789542
Availability: InStock
Rating: 4.7 (76 reviews)

Price:	US $ 5/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

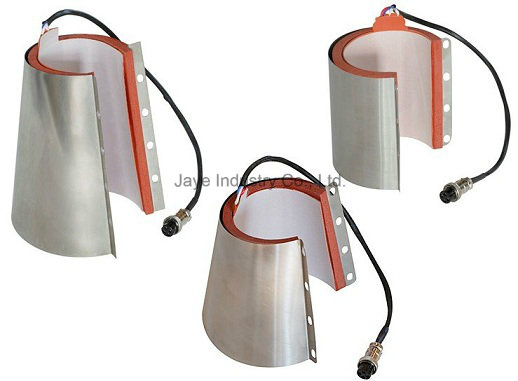

Electric Silicone Resistance Mug Heater

High quality silicon mug heater, use for mug/cup heat press machine,easy loss parts of heat press machine

The Mug baking pad is the important part of the heat transfer equipment baking cup machine. The size of the Mug baking pad determines the size of the cup. Generally, a baking cup machine can be equipped with several Mug baking pad, which can bake a variety of cups.
High quality silicon mug heater, use for mug/cup heat press machine,easy loss parts of heat press machine

Mug baking pad is produced with special ultra-precision wire tube technology, can effectively ensure the temperature of the equilibrium and stability, suitable for ordinary baking cup machine, intelligent baking cup machine and multi-functional baking cup machine.

According to the size and shape of the cup, conical Mug baking pad, straight Mug baking pad, cup caliber differentMug baking pad size is also different.

Descriptions:
Light and flexible heater
Heats fast and high efficiency thermal conversion
Widely used on industry, agriculture, medical and household electrical appliances
Can customize the practical power, voltage, size, customer's logo and more
Lowest price and fast delivery of the goods
Perfect after-sales service

Technical Parameters:

Dimension	Dimensions on request
Thickness	1.5mm(standard) Note: There is an extra thickness at the connection point.
Heating element	Nickel-Chromium or Copper-Nickel resistance wire wound around a fiberglass core	Nickel-Chromium or a Copper-Nickel resistance wire
Voltage	Any voltage on request (Any AC or DC)
Output	Up to 5KW/M2
Tolerance	±10% on resistance
Max surface temperature	200 degree
Min exposure temperature	-60 degree
Size/Shape Limitations	Maximum width of 48 inches, no maximum length
Attachment	Hooks, lacing eyelets, Or Velcro closure. Temperature control(Thermostat)

Features:
1)Metal base, Horizontal design, anti-rust and scratch resistant. Digital temperatoure and time recycle. Interchangeable mug heater.

2)The Best versatile Mug press for straight and latte mugs. Accommodates 6oz, 9oz, 11,oz, 15oz mugsand steins travel mus, latte mug etc. With this machine you can transforme your old mugs. Fully digital time and temp. control.

Mug Heater: Dia. 6-7.5cm for 6oz, 9oz, 10oz etc mugs.
Dia. 7.5-90cm for 11oz, 15oz etc mugs
Controller: Digital time and Temp. Control
Voltage: 120V/220V
Power: 38 W
Time range: 0 - 399 sec
Maximum Temp. : 399 C
Packing Size: 39*33*29cm
Gross Weight: 8 kg

Photos

Prod Model:	SI01
Color:	Red
Appliance:	Heat Pressing Machine
Quality:	High Quality
Temperature:	200 Degree
Voltage:	Customized
Wattage:	Customized

Jaye industry Co., Ltd has been in the heating elements industry since 2009, and is one of the most trust worthy and professional supplier for various type of heating elements, spare parts and thermostats in China. Our products Mainly include the Home heating elements, industrial heating elements, Flexible silicone heating elements, spare parts and thermostats etc.

'Customization' mixed with the highest grade of material and workmanship is the kind of heater that JAYE industry will provide. This is where our reputation lies and we will continue to provide only the best products to our customers.
