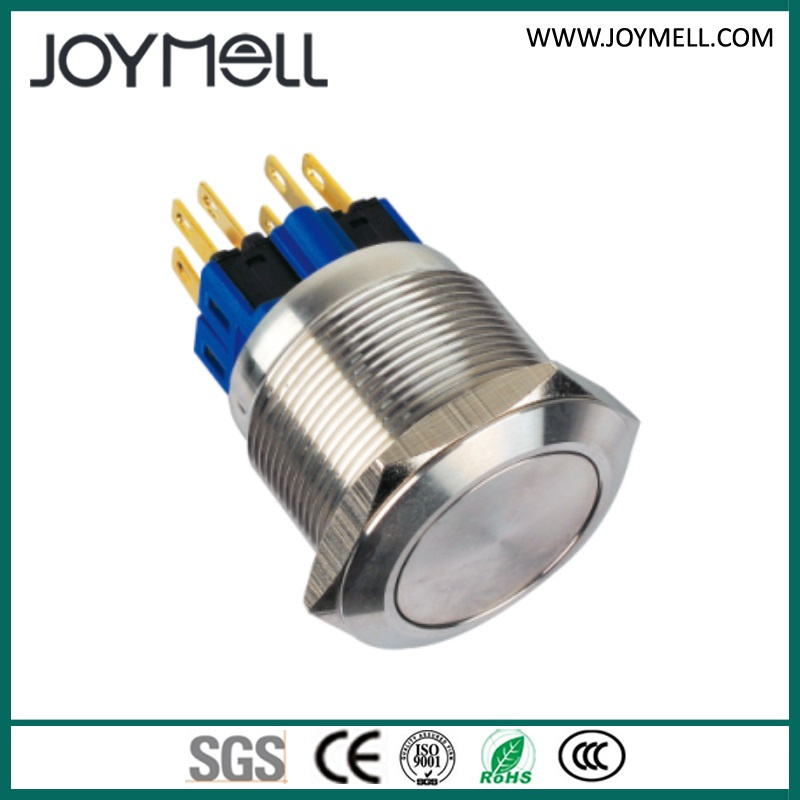

Electric IP67 Metal 6 Pin Push Button Switch

Electric IP67 Metal 6 pin Push button switch



1. Application:
JGQ metal push button switch used in many places, home, hotel, hospital, motor, lighting, computer, door, car, industries uses, etc...


2. Specification and how to order?
We need to know from (1) to (9) then we can make right offer.

Model name	Install dimension	Front shape	Contact structure	Operation mode	Lamp Type	Lamp color	Lamp voltage	Shell material	Terminal
JGQ	(1)	(2)	(3)	(4)	(5)	(6)	(7)	(8)	(9)
	12: Dia 12mm	F:Flat round	10: 1NO	Z:Maintained	D: Dot	Red	AC/DC 6V	N: Brass nickel  plated	Pin terminal
	16: Dia 16mm	H:High round	11: 1NO1NC	If no letter then  normally  momentary type	E: Ring	Green	AC/DC 12V	S: Stainless steel	Screw terminal
	19: Dia 19mm	B:Ball	22: 2NO2NC			Yellow	AC/DC 24V
	22: Dia 22mm					White	AC/DC 110V
						Blue	AC/DC 220V

3. Other our product series:

Nylon Cable gland	MG/M type/PG/NPT
Metal cable gland	MG/M type/PG/NPT
Manual transfer switch	1A~1600A, 3P/4P.
Automatic Transfer switch	1A~3200A, 2P/3P/4P.
Metal power distribution box	Metal box, size can color can be customized.
Plstic box	Different ways, competitive price,  welcome to contact
Surge protector	B,C,D Class, AC, DC type you can choose. Different types and  discharge current you choose.
Power supply	Hot used in Gepenerator system, 120W 12/24V. And other types
Current transformer	Different size you can choose, quality guarantee,  hot used in Generator cabinets.
Push button	Metal or plastic, different types for power cabinet.

4. Our company:

Joymell Electric Co., Ltd, with brand Joymell, specialized in Manufaturing and International sourcing service.  Main products including Automatic Transfer switch, Manual transfer switch, Generator Enclosure box, Power supply, Current transformer, Surge protector, Circuit breaker, Cable glands, etc, are following international standards CE IEC, TUV, ISO9001 etc.  We have hundreds of brother companies providing good sources, can be your sourcing agent in China to save cost and a whole series service.  Joymell with experienced Quality management engineers and system, to make sure the products we produced and sourced are with high quality to support customers.  Our target is to provide customers as much profit as can, and first-time service.  Welcome to contact Joymell.

5. Q&A:
1) Q:Your company ?
     A:   Joymell is factory for ATS, Enclosure, Push button switch, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 etc.
2)  Q:   Do you have forwarder?
      A:   Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3)   Q:   Your address ?
      A:    Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4)   What's the guarantee?
       A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5)    What's about MOQ? Delivery time ?
       A: Common types with Stock, or 3-7days production time. MOQ 1pcs.
6)    What's the payment term?
       A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7)    What's your contact information ?
        Website: www.joymell.com, Welcome to contact us anytime.
