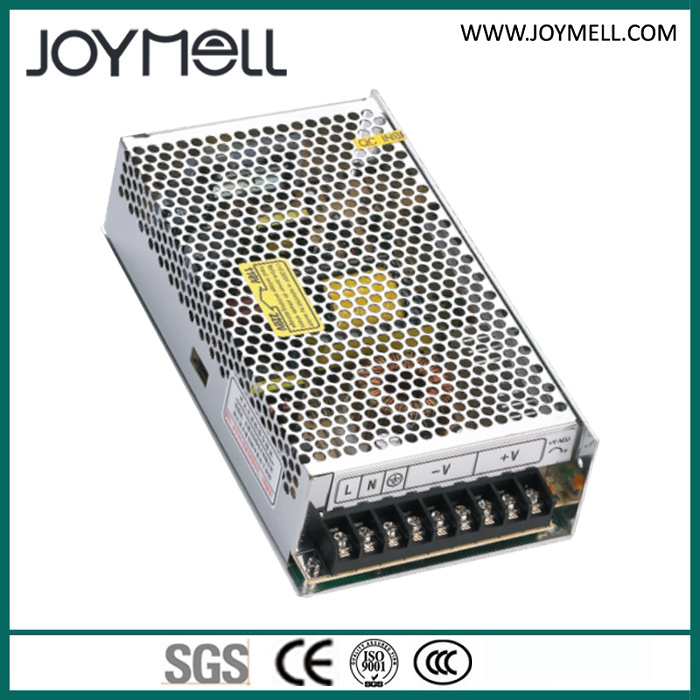

Ce CS-250W Power Supply Switch
| Price: |
US $ 10-17/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
CS-250 |
| Input: |
5.5A/115V, 2.8A/230V AC |
| Output: |
DC12V/15V/24V/36V/48V |
| Output Rated Current: |
20A/16A/10A/6.7A/5A |
| Protection: |
Short-Circuit, Over-Load, Over-Voltage, Over-Temp |
| Standards: |
UL1012, En55022, Classa, Ce, RoHS |
| Testing: |
100% Test |
| Cooling: |
by Air |
| Weight: |
0.8kg/PCS, 199*110*50mm/PCS |
| Packing: |
24PCS/Carton/21kg |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Certification: |
SGS |
| Output Power: |
240W, 250W |
| Input Voltage: |
90-132V AC, 180-264V AC, 255-373VDC |
| Brand: |
Joymell |
Product Description
CE CS-250W Power supply Switch
1. Features: *AC input voltage range selected by switch
*Small volumn, low weight, high efficiency
*Protections: Short circuit/Over-load/Over voltage/Over temp
*Cooling by free air convection
*LED indicator for power on
*100% full load burn-in test

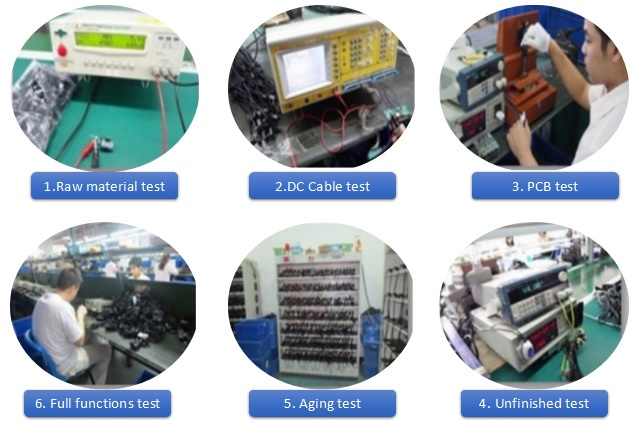

*2 year warranty2. Tests:3. Specification: | | Model | CS-250-12 | CS-250-15 | CS-250-24 | CS-250-36 | CS-250-48 |
| Output | DC Voltage | 12V | 15V | 24V | 36V | 48V |
| Voltage tolerance | ±1% | ±1% | ±1% | ±1% | ±1% |
| Rated current | 20A | 16A | 10A | 6.7A | 5A |
| Current Range | 0-20A | 0-16A | 0-10A | 0-6.7A | 0-5A |
| Rated power | 240W | 240W | 240W | 240W | 250W |
| Ripple&Noise | 180mVp-p | 200mVp-p | 240mVp-p | 280mVp-p | 340mVp-p |
| DC Voltage ADJ Range | ±10% | ±10% | ±10% | ±10% | ±10% |
| Setup, hold up time | 100ms, 50ms, 20ms230VAC |
| Input | Voltage Range | 90-132VAC/ 180-264VAC(Selected by switch), 47-63hz, 255-373VDC |
| AC Current | 5.5A/115V, 2.8A/230VAC |
| Efficiency | 81% | 81% | 83% | 86% | 88% |
| Inrush current | Cold start 18A/115VAC 36A/230VAC |
| Leakage Current | < 3.5mA/240VAC |
| Protection | Overload | Rated output power 105%~135% start overload protection |
| Protection type: Rated current limit, auto-recovery after fault condition is removed |
| Environment | Working Temp, Humidity | -10ºC-+60ºC; 20%~90%RH(Pleasure refer to "Derating curve") |
| Storage temp, Humidity | -20ºC-+85ºC; 10%~95%RH,Non-Condensing |
| Withstand Vibration | 10-500hz, 2G 10min/1Cycle, period for 60min, each axes |
| Safety | Withstand voltage | I/P-O/P: 1.5KVAC 1/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| Isolation Resistance | I/P-O/P: I/P-FG, O/P-FG:100M Ohms/500VDC |
| Standard | Safety standard | UL1012 |
| EMC Standard | EN55022, CLASSA |
| Weight | Weight | 0.8kg/pcs, 199*110*50mm/pcs(L*W*H) |

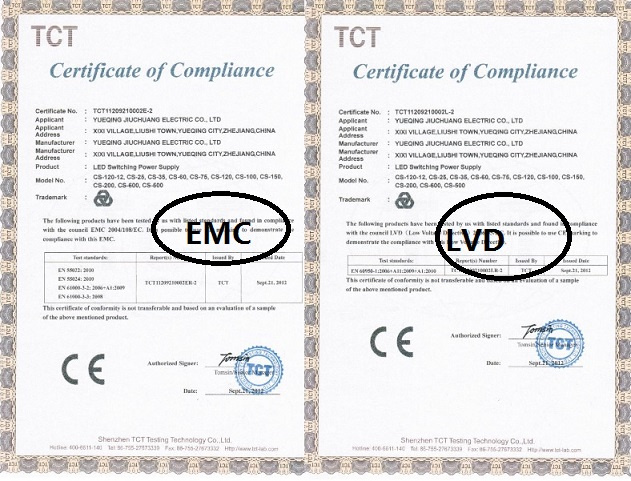

4. Certificate: 5. You can get service:| 1. Prompt reply: Any inquiry or questions would be replied within 24 hours. |
| 2. Quality Product: 100% tested and calibrated. |
| 3. Hospitality: Offer smiling service and your visiting is highly welcomed |
| 4. Fast delivery: Normally 3-7days. |
| Trade Terms | FOB ,CIF ,CNF, EXW |
| Payment terms | T/T,Western union,Paypal |
| Payment conditions | 50% deposit in advance,50% balance before shipping. Small order 100% deposit |
| Delivery time | 3-7working days after deposit,2-4 working days for inventory |
| Packing | Neutral carton. Poly wooden for big orders. |
| Shipping | By sea,by air and by express delivery |
