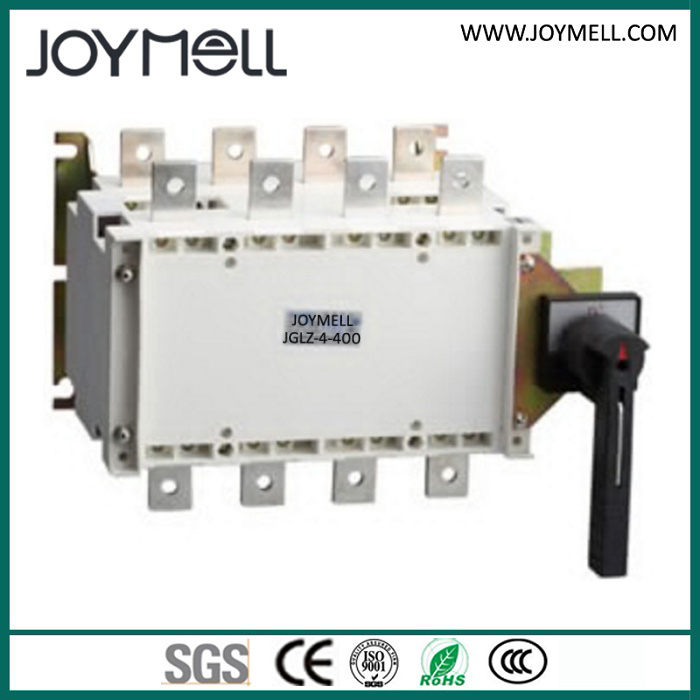

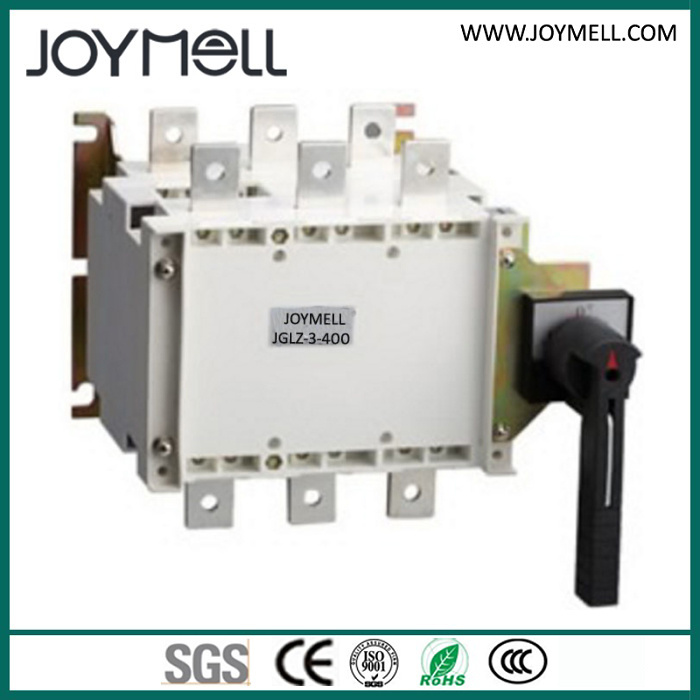

Electrical Dual Power 3p 4p Manual Transfer Switch From 1A to 1600A1. Manual Transfer switch Description:* Suitable for changeover two sets of low voltage electric circuit or the changeover of 2sets of load devices of safety isolation. |
*Mode of operation: If direct operation: handle is installed on the switch If operate outside the board: handle is installted outside the door of power distributioin board. |
* Products with observation windowns can be provided accordingly to the demand to observe directiy the on and off state of contact. |
*Extended shaft is used for the operation outside the board. |
*Two sets of auxiliary contacts can be assembled according to the demand |
*Mechanical performance and electrical performance correspond to the mechanical property of JGLZ 160A to 1600A. |
*A bridge can provided to connect the inlet or outlet terminal of the switch |
*The electric cable insulating cover can be assembled. Not the bridge connection is chosen, and explanation is needed to indicate the inlet or outlet is connected with it. |
2. Specification: | A | B | C | D | E | F | J | J1 | K | N | P | R | U | θx |
125A-160A/3 | 319 | 135 | 125 | 67 | 89 | 24 | 299 | 120 | 65 | 59 | 36 | 20 | 85 | 9 |
125A-160A/4 | 379 | 135 | 125 | 67 | 89 | 24 | 359 | 150 | 65 | 59 | 36 | 20 | 85 | 9 |
200A-250A/3 | 405 | 170 | 134 | 79 | 104 | 25 | 385 | 160 | 90 | 65 | 50 | 25 | 110 | 11 |
200A-250A/4 | 505 | 170 | 134 | 79 | 104 | 25 | 485 | 160 | 90 | 65 | 50 | 25 | 110 | 11 |
315A-400A/3 | 535 | 240 | 166 | 108 | 131 | 37 | 515 | 210 | 140 | 95 | 65 | 32 | 160 | 11 |
315A-400A/4 | 655 | 240 | 166 | 108 | 131 | 37 | 635 | 270 | 140 | 95 | 65 | 32 | 160 | 11 |
500A-630A/3 | 535 | 260 | 166 | 108 | 131 | 37.5 | 515 | 210 | 140 | 95 | 65 | 10 | 160 | 13 |
500A-630A/4 | 655 | 260 | 166 | 108 | 131 | 37.5 | 635 | 270 | 140 | 95 | 65 | 10 | 160 | 13 |
1000A/3 | 836 | 310 | 192 | 150 | 163 | 48 | 811 | 353 | 175 | 105 | 120 | 60 | 200 | 13 |
1000A/4 | 1076 | 310 | 192 | 150 | 163 | 48 | 1051 | 473 | 175 | 105 | 120 | 60 | 200 | 13 |
1250A/3 | 836 | 336 | 192 | 150 | 163 | 48 | 811 | 353 | 175 | 105 | 120 | 60 | 200 | 13 |
1250A/4 | 1076 | 336 | 192 | 150 | 163 | 48 | 1051 | 473 | 175 | 105 | 120 | 60 | 200 | 13 |
1600A/3 | 836 | 336 | 192 | 150 | 163 | 48 | 811 | 353 | 175 | 105 | 120 | 60 | 200 | 13 |
1600A/4 | 1076 | 336 | 192 | 150 | 163 | 48 | 1051 | 473 | 175 | 105 | 120 | 60 | 200 | 13 |
3. Packing: 4. Production line and delivery time:With some stock, JGLZ ATS normally with stock. 1000pcs ATS production time within 7days.
QC quality control for every step, to make sure 100% passed.

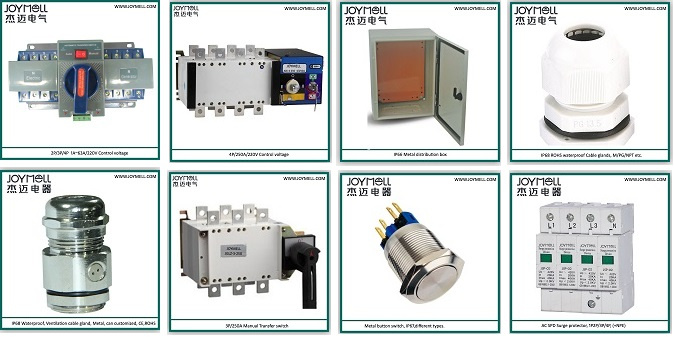

5. Other Our products: Manual transfer switch | 1A~1600A, 3P/4P. |
Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
Metal power distribution box | Metal box, size can color can be customized. |
Plstic box | Different ways, competitive price, welcome to contact |
Surge protector | B,C,D Class, AC, DC type you can choose. Different types and discharge current you choose. |
Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
Current transformer | Different size you can choose, quality guarantee, hot used in Generator cabinets. |
Push button | Metal or plastic, different types for power cabinet. |
6. Q&A:1) Q:Your company ?
A: Joymell is factory for ATS, Enclosure, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the ATS guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5) What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
