| Prod Model: |
JGL |
| Rated Current: |
1000A |
| Rated Voltage: |
AC660V/DC440V |
| Pole: |
3p/4p |
| Application: |
Indoor/Outdoor |
| Standards: |
CCC, IEC, Ce |
| Where Sold: |
Worldwide Countries |
| Type: |
Low-voltage |
| Operation: |
Manual |
| Run: |
Turn the Horizontal |
| Switching Mode: |
Single Throw-in |
| Certification: |
CE |
| Installation: |
Indoor /Outdoor |
| Number Of Poles: |
3p/4p |
| Common Model: |
Jgl |
| Brand: |
Joymell |
Product Description

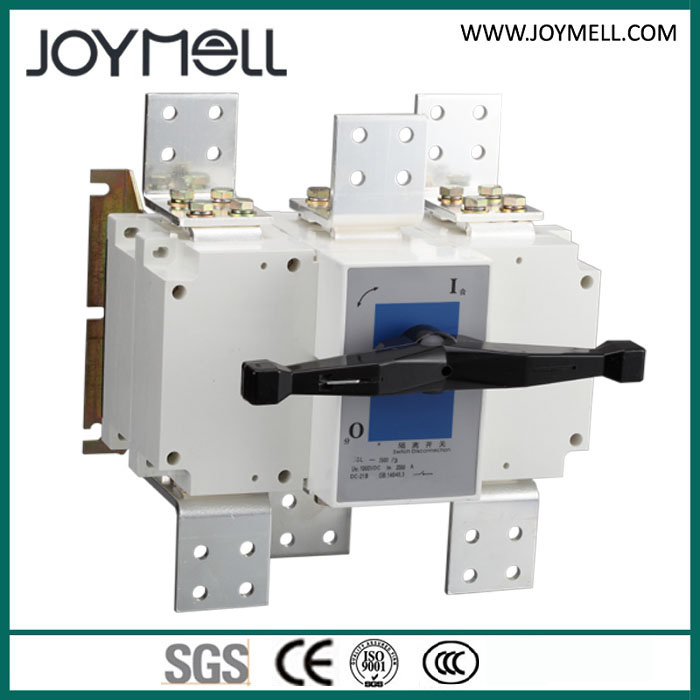

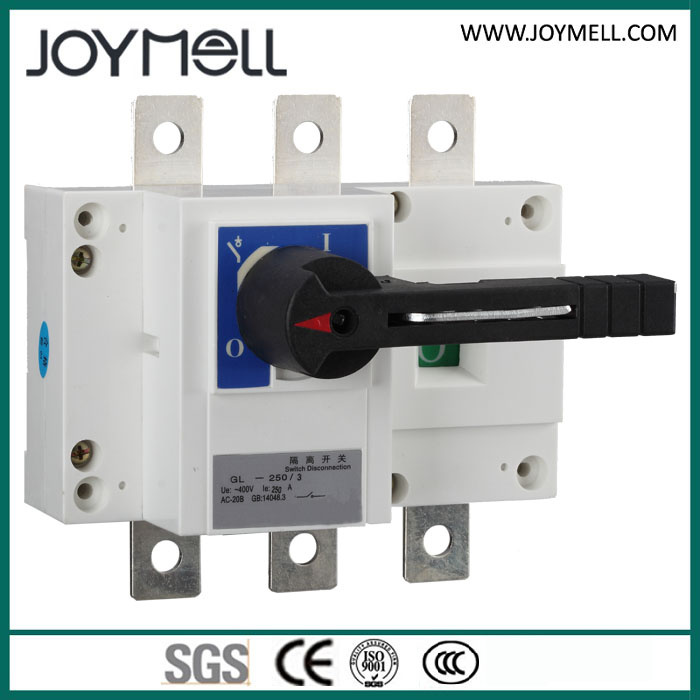

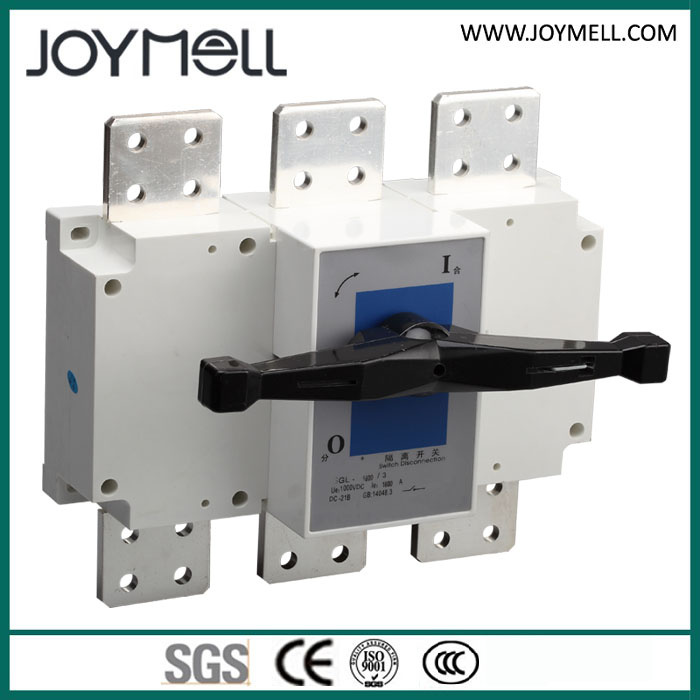

3 Pole 4 Pole Disconnect switch 1000AApplication:JGL Series load isolation switch mainly suitable for AC 50Hz, rated voltage to 660V, DC rated voltage up to 440V, rated current up to 3150A. The switch is used in infrequent making and breaking circuits. It widely used in the distribution system and automatic system of architecture, electrical power, petrochemical, and other industries. Following International IEC60947-1, IEC60947-3 standards. Features:1. Nice looking, and small sizes. It possesses flexible structure of modularized design. The shell made by unsaturated polyester resin reinforced by glassfiber. It has very high dielectric performance, protective capability, and reliable operation. 2. The plastic-accumulating accelerating mechanism for instant release realizes the rapid making and breaking (13.8m/s), have no relationship with the speed of operation handle, and increasing greatly the capability of extinguish electric etc.
3. Many kinds of structures and operations in which the on and off state of contact is observed through windows.
4. Parallel double gap contact possess self cleaning functions
5. All the contact material are copper alloy plated with silver, and possess two separation contact surfaces
6. Large isolating distance

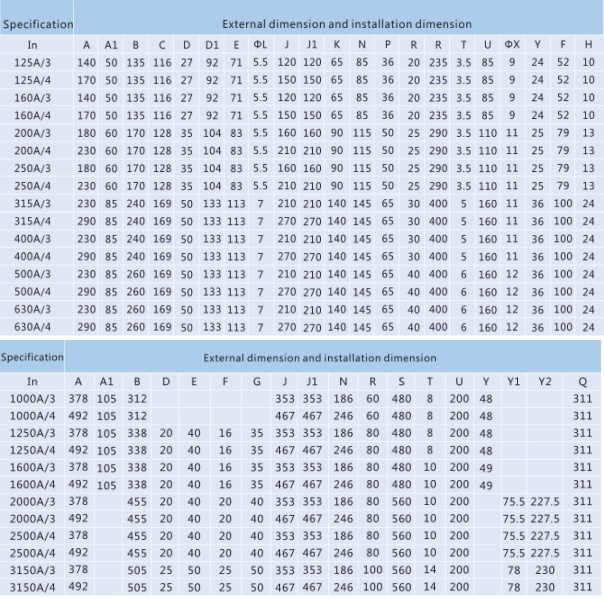

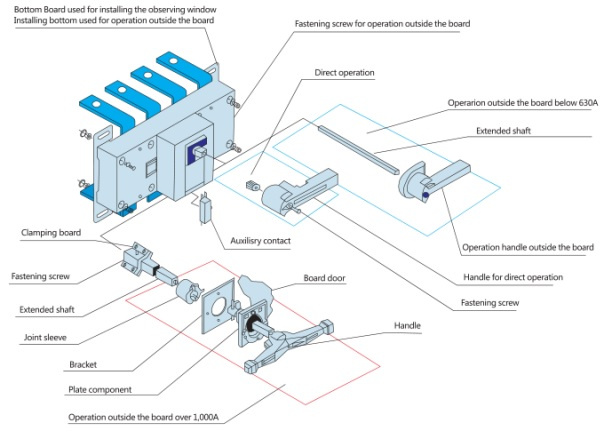

7. When on "0", can be locked by three locks at same tie, to avoid error operation. Pictures: Installation Dimension:

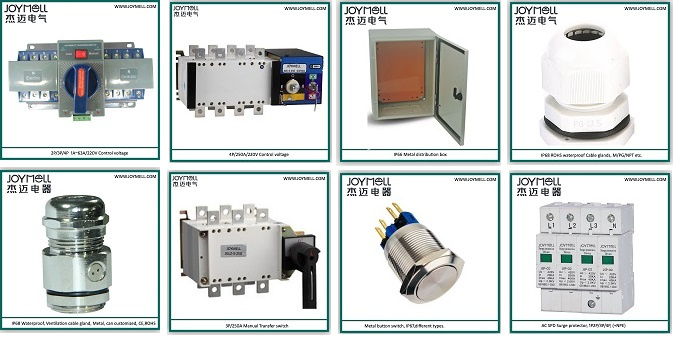

Other our product series:
| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
