Generator System Ce Automatic Transfer Switch (1A~3200A ATS)
| Price: |
US $ 20-32.5/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
Generator System Ce Automatic Transfer Switch (1A~3200A ATS)
1. Application:
JQ5 ATS used in Generator system, to changeover two power sources. Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection, hospital, bank, building etc, where doesn't allowed power off. 2. Basic Specification:| Model Name | JQ5 | |
| Frame | 100A | 160A | 250A | 400A | 630A |
| Rated current | 1A~100A | 125A~160A | 200A~250A | 300~400A | 500~630A |
| Rated Impulse withstand voltage | 500V | 500V | 500V | 500V | 500V |
| Operation Voltage | 187~257V normally 220V/230V 50/60HZ |
| Changeover time | I-O-II(S) | 0.5 | 1 | 1.1 | 1.2 | 1.2 |
| I-O or II-O(S) | 0.3 | 0.6 | 0.7 | 0.8 | 0.8 |
| Model Name | JQ5 | |
| Frame | 1000A | 1250A | 1600A | 2000A | 2500A | 3200A |
| Rated current | 800~1000A | 1250A | 1600A | 2000A | 2500A | 3200A |
| Rated Impulse withstand voltage | 1000V | 1000V | 1000V | 1000V | 1000V | 1000V |
| Operation Voltage | 187~257V normally 220V/230V 50/60HZ | |
| Changeover time | I-O-II(S) | 1.2 | 1.2 | 1.2 | 2.4 | 2.4 | 2.4 |
| I-O or II-O(S) | 0.8 | 0.8 | 0.8 | | | |
3. Performance:| 1, Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute); |
2, Reliable machine interlock and elecric interlock, the executive union parts adopt independency overload disconnect switch,
it makes more reliable and safety. |
| 3, "zero" techinique, can force to set"zero" under emergency situation(break off two ways power supply at the same time).Meet the requirement of the fire protection linkage. |
4, Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise,
little wallop |
| 5, Operate machine drive motor use only under the executive overload disconnect switch change over instanecus current across, outstanding energy saying. |
6, Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working
reliable and not interference. |
| 7, Distinct on and off position indicator, padlock function et.c safe realize the isolator between electric power and overload |
| 8, High security, high automatization, high retiablility, use life more than 8000times |

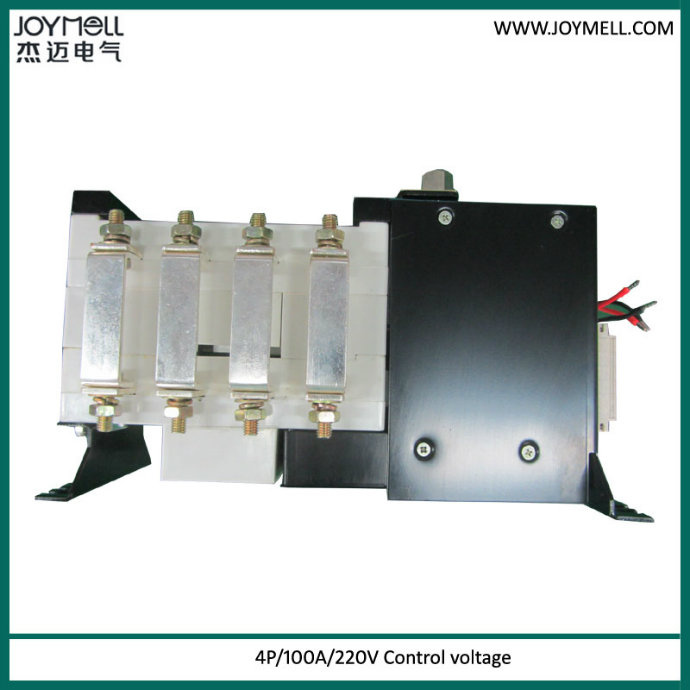

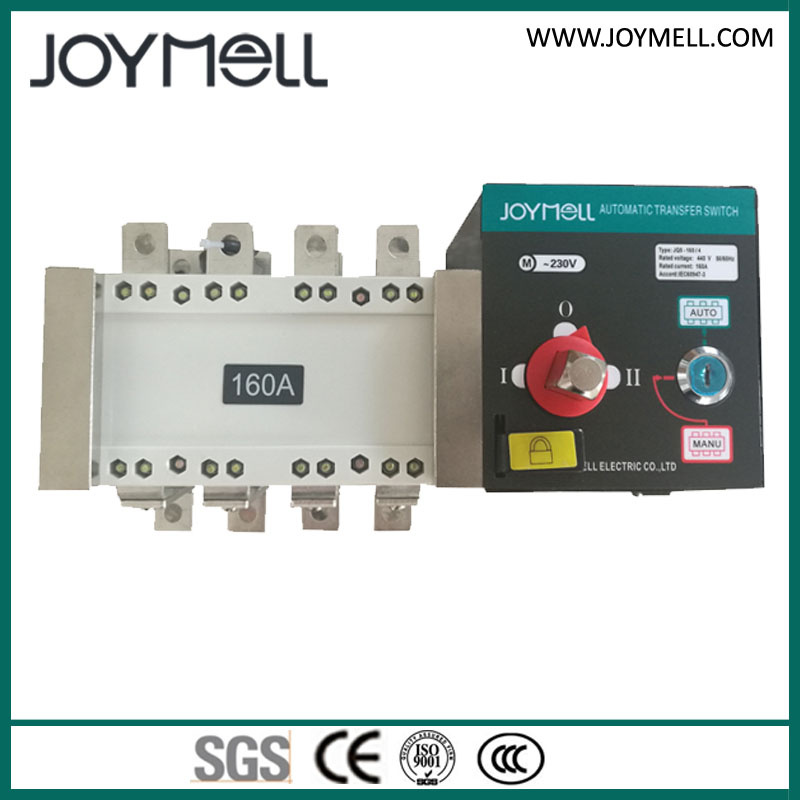

4. Pictures:

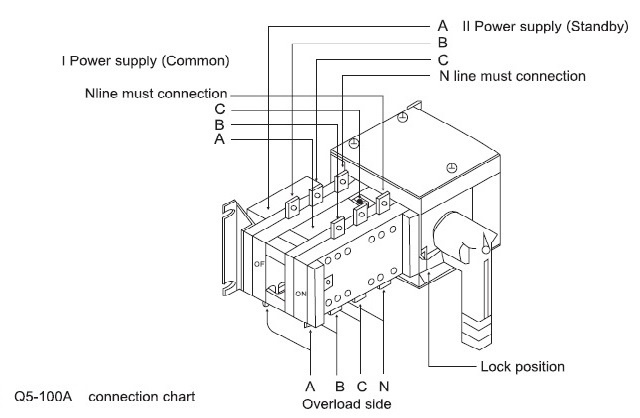

5.Connecting: for 3Pole 100A Example
6.Packing:| Types | Carton Size | Gross weight/
Carton | Net weight/
Carton | QTY/
carton |
| L | W | H |
| ATS JQ3W-63/4P 63A | 0.485 | 0.31 | 0.28 | 17.53 | 15.53 | 8 |
| ATS JQ3M-225/4P 225A | 0.445 | 0.24 | 0.31 | 17.05 | 15.05 | 2 |
| ATS JQ5-100/4P 100A | 0.365 | 0.3 | 0.42 | 16.1 | 14.1 | 4 |
| ATS JQ5-160/4P 160A | 0.455 | 0.295 | 0.285 | 15.6 | 13.6 | 2 |
| ATS JQ5-250/4P 250A | 0.455 | 0.45 | 0.285 | 20.7 | 19.7 | 2 |
| ATS JQ5-400/4P 400A | 0.565 | 0.385 | 0.385 | 21.365 | 19.365 | 1 |
| ATS JQ5-630/4P 630A | 0.565 | 0.385 | 0.385 | 22.63 | 20.63 | 1 |
| ATS JQ5-1000/4P 1000A | 0.715 | 0.405 | 0.385 | 49.16 | 47.16 | 1 |
| ATS JQ5-1250/4P 1250A | 0.715 | 0.405 | 0.385 | 53.9 | 51.9 | 1 |
| ATS JQ5-1600/4P 1600A | 0.715 | 0.405 | 0.385 | 55.7 | 53.7 | 1 |
| ATS JQ5-2500/3P 2500A | | | | 59 | | |

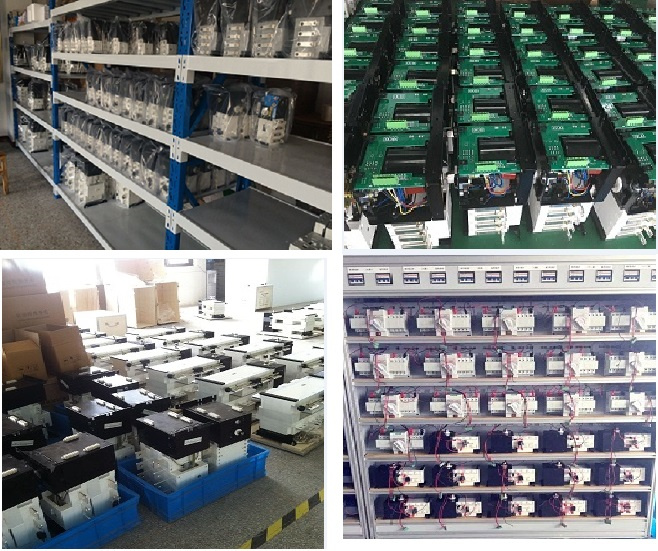

7. Production line:
8. Other your products series:| Manual transfer switch | 1A~1600A, 3P/4P. |
| Automatic Transfer switch | 1A~3200A, 2P/3P/4P. |
| Metal power distribution box | Metal box, size can color can be customized. |
| Plstic box | Different ways, competitive price, welcome to contact |
| Surge protector | B,C,D Class, AC, DC type you can choose. Different types and
discharge current you choose. |
| Power supply | Hot used in Gepenerator system, 120W 12/24V. And other types |
| Current transformer | Different size you can choose, quality guarantee,
hot used in Generator cabinets. |
| Push button | Metal or plastic, different types for power cabinet. |
9. Q&A:1) Q:Your company ?
A: Joymell is factory for ATS, Enclosure, Power supply, Current transformer etc. Providing customers very competitive sources, and can be your sourcing agent in China. Goods are following international standards, IE, CE, ISO9001 etc.
2) Q: Do you have forwarder?
A: Yes, we have good forwarder cooperated over 7years, they help us import and export . For small package orders, suggest to use by Express.
3) Q: Your address ?
A: Locates in Zhejiang province, Baixiang town, Chandong industrial zone.
4) What's the ATS guarantee?
A: 2 years warranty. If customer's problem, then customer burden. If our problem, then we send new goods to customer to replace asap.
5) What's about MOQ? Delivery time ?
A: 1pcs for ATS. Normally less than 1000A ATS with stock, quick support.
6) What's the payment term?
A: Normally 100% T/T in advanced payment. If big order then about 50% advanced payment, balance before shipment.
7) What's your contact information ? Website: www.joymell.com, welcome to contact us anytime.
| Prod Model: |
JQ5 |
| Model Name: |
Jq5 |
| Catagory: |
AC-33b |
| Rated Current: |
1A up to 3200A, Depands on Customer |
| Rated Voltage: |
Single Phase or Three Phase |
| Control Voltage: |
180V~270V, Normally 220V/230V |
| Frequency: |
50/60Hz |
| Pole: |
3pole, 4pole |
| Transfer Type: |
Both Automatic and Manual |
| Standards: |
IEC60947-3 |
