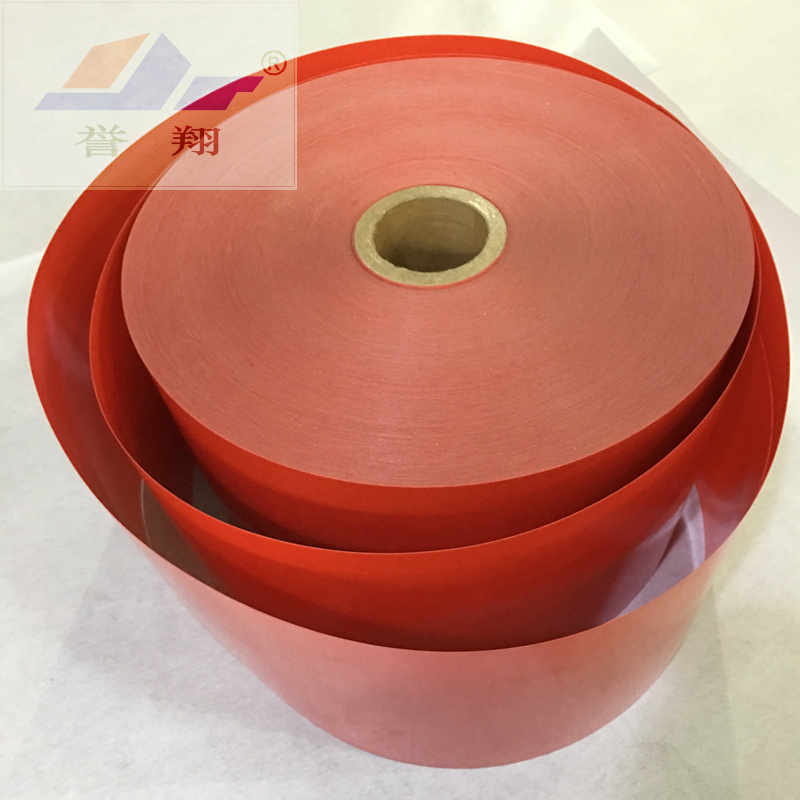

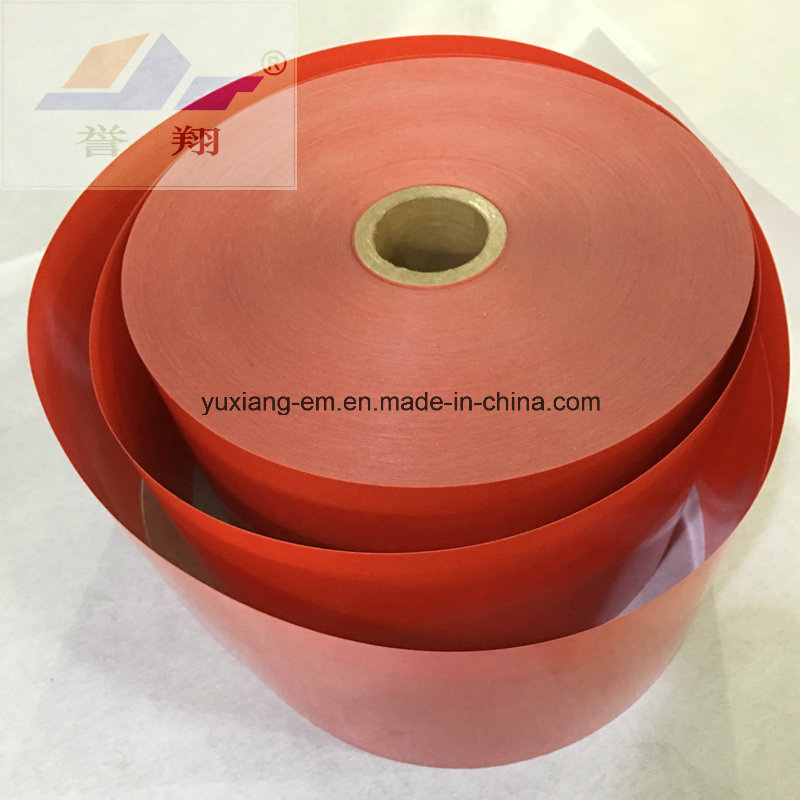

Electrical Insulation Paper DMD Prepreg

Name: Electrical Insulation Paper DMD Prepreg
Brand: all-electronics-online.com
SKU: 801984055
Availability: InStock
Rating: 4.4 (27 reviews)

Price:	US $ 3.5-6.5kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DMD-P
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Organic Insulation
Thermal Rating:	F 155
Material:	Nonwoven and Polyester
Color:	Red
Brand:	Yuxiang\Yohann

Product Description

Good mechanical properties

Good adhesion

General description
Yuxiang® DMD-P is a B-stage flexible laminates made of DMD and epoxy resin.

Application
Yuxiang® DMD-P is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 155ºC. The main use is for slot insulation in low voltage rotating machines,ground and slot.It can be used as well as intermediate layer in transformers.

Typical properties

Product	Construction	Thickness tolerance	Thickness	Weight	resin content		Volatile matter content		Tensile strength			BDV
Product	Construction	Thickness tolerance	Thickness	Weight	resin content		Volatile matter content			MD	TD
			mm	g/m2		g/m2		%		N/cm			KV
DMD-P	2-1-2	±10%	0.18	220.0	≥	45.0	≤	2.0	≥	90.0	70.0	≥	5.0
DMD-P	2-2-2	±10%	0.20	255.0	≥	45.0	≤	2.0	≥	130.0	100.0	≥	8.0
DMD-P	2-3-2	±10%	0.23	290.0	≥	45.0	≤	2.0	≥	140.0	110.0	≥	10.0
DMD-P	2-4-2	±10%	0.25	325.0	≥	45.0	≤	2.0	≥	160.0	130.0	≥	12.0
DMD-P	2-5-2	±10%	0.28	360.0	≥	45.0	≤	2.0	≥	200.0	150.0	≥	14.0
DMD-P	2-6-2	±10%	0.30	395.0	≥	45.0	≤	2.0	≥	210.0	200.0	≥	16.0
DMD-P	2-7.5-2	±10%	0.35	451.0	≥	45.0	≤	2.0	≥	220.0	210.0	≥	17.0
DMD-P	2-10-2	±15%	0.40	535.0	≥	45.0	≤	2.0	≥	280.0	240.0	≥	19.0
DMD-P	2-12-2	±15%	0.45	610.0	≥	45.0	≤	2.0	≥	300.0	290.0	≥	20.0
DMD-P	2-14-2	±20%	0.50	685.0	≥	45.0	≤	2.0	≥	350.0	320.0	≥	25.0

Shelf life
≤15ºC 12 monthes
≤25ºC 6 monthes
Form of delivery

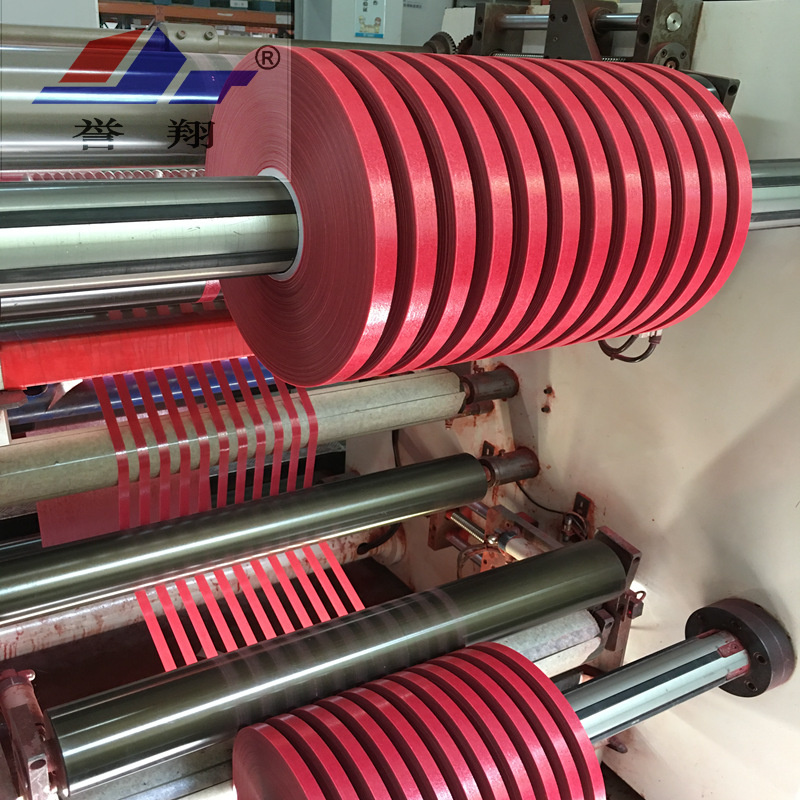

Jumbo rolls: 25~200kg/roll, 76mm width, 76mm paper coresStrips: 6mm~914mm width according to customer requirements, maximum roll diameter 400mm.

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
