Hot Sale Electrical Material Electrical Insulating Paper Nhn (H CLASS)

Name: Hot Sale Electrical Material Electrical Insulating Paper Nhn (H CLASS)
Brand: all-electronics-online.com
SKU: 801962705
Availability: InStock
Rating: 4.5 (126 reviews)

Price:	US $ 29.95-42kg
Min Order:	200kg
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Class H (180ºC/220ºC)
Good mechanical properties
Du Pont Nomex® and Polyimide laminates

General description

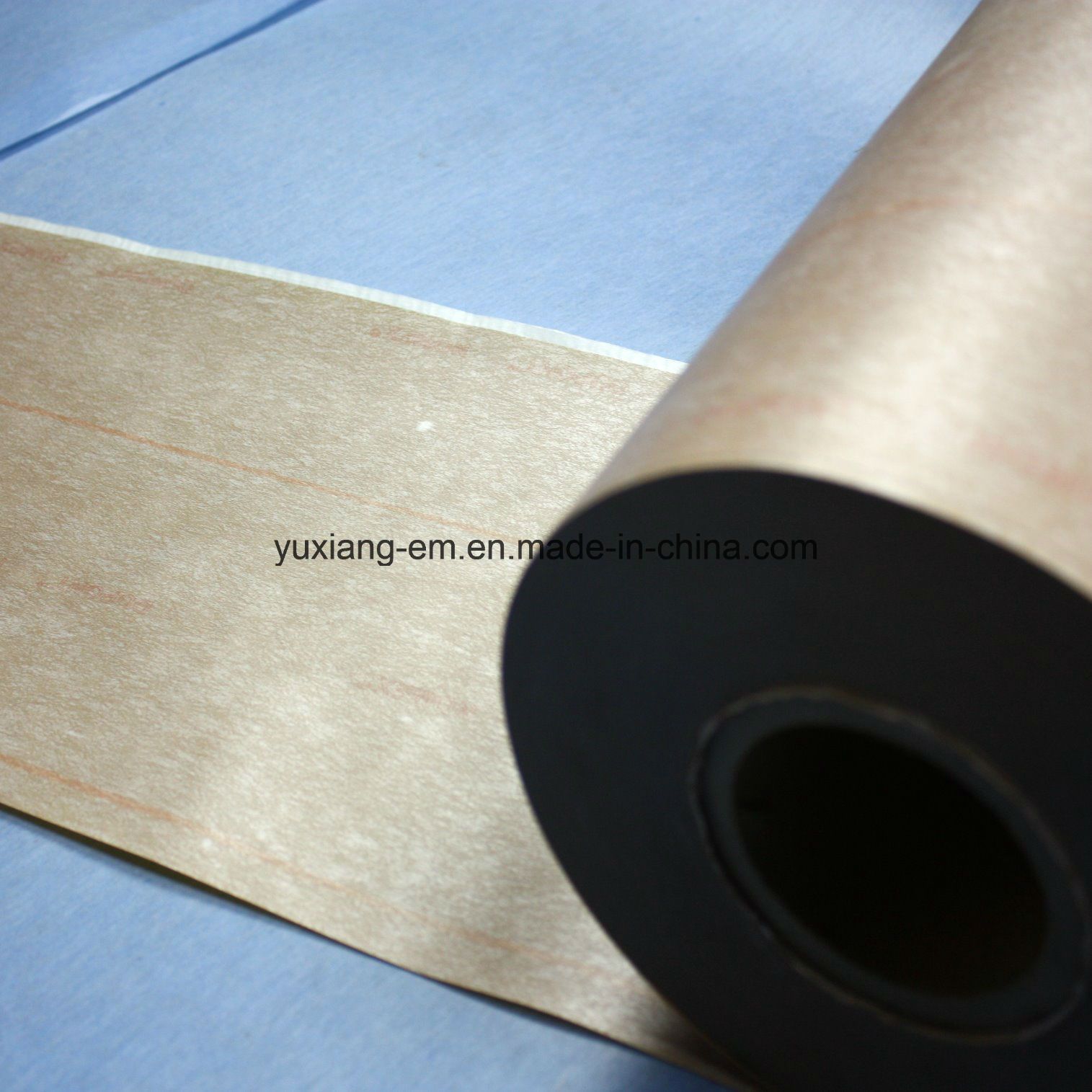

Yuxiang® NHN is a 3-ply flexible laminate made of Nomex® paper-polyimide film-Nomex® paper bonded with a synthetic adhesive.The total thickness fo the product is decided of the thickness of Nomex® paper,also the properties.

Application
Yuxiang® NHN is suitable for insulation in electrical motors and transformers with a maximum operating temperature of 180ºC. It is used in low or medium voltage rotating machines as ground and slot insulation. It can be used as well as intermediate layer in transformers.

Typical properties

Product	Construction	Thickness	Weight	Tensile strength			Breakdown voltage		Aging test
Product	Construction	Thickness	Weight		MD	TD	Breakdown voltage		Aging test
		mm	g/m2		N/cm		KV
NHN	2/1/2	0.13±10%	140.0±10%	≥	80.0	60.0	≥	8.0	200ºC 10min
NHN	2/3/2	0.18±10%	209.0±10%	≥	150.0	100.0	≥	14
NHN	3/1/3	0.20±10%	189.0±10%	≥	160.0	100.0	≥	8.0
NHN	3/2/3	0.22±10%	227.0±10%	≥	190.0	120.0	≥	11.0
NHN	2/5/2	0.24±10%	280.0±10%	≥	200.0	140.0	≥	18.0
NHN	3/3/3	0.25±10%	264.0±10%	≥	220.0	150.0	≥	15.0
NHN	2/7/2	0.30±10%	370.0±10%	≥	220.0	180.0	≥	19.0
NHN	5/1/5	0.30±10%	296.0±10%	≥	280.0	180.0	≥	10.0
NHN	5/2/5	0.33±10%	335.0±10%	≥	310.0	200.0	≥	12.0
Test method:GB/T 5591.2-2002 or IEC 60626-2:1995

Shelf life
The shelf life of Yuxiang® NMN series is in excess of one year when stored at room temperature.

Form of delivery

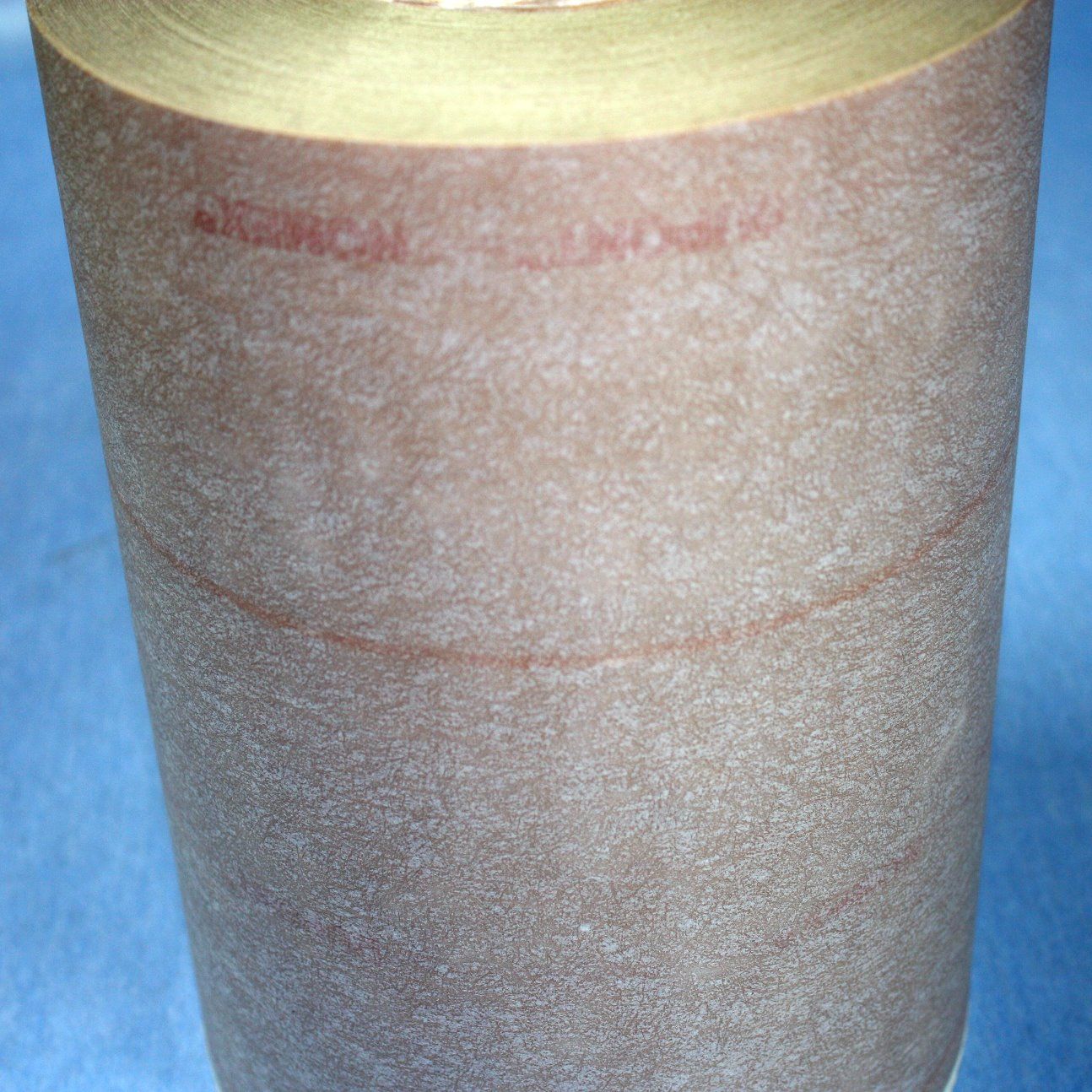

Jumbo rolls: 25~200kg/roll, 76mm paper cores
Strips: 6mm~1600mm width according to customer requirements, maximum roll diameter 400mm.

Prod Model:	NHN
Application:	Transformer
Type:	Insulation Paper
Chemistry:	Organic Insulation
Material:	Nomex Paper
Thermal Rating:	F/H Class
Color:	Light Reddish Brown
Brand:	Yuxiang\Yohann

Shanghai Yuxiang electrical material Co., Ltd established in Pudong district of Shanghai in 2004.

The headquarters and manufacturing base has moved to Shanghai Nanxiang in 2008. The area of factory is about 5000 Square meters. There are lamination, slitting, coating and stamping lines in our factory.

Yuxiang is one of the most famous electrical flexible lamination coating production supplier in China, and has a very good reputation in the industry.

Yuxiang adhering to the business philosophy of "Beyond Customer's Expectations", providing all kinds of insulation products for the motors, generators, transformers, electronic products, solar energy backs and new energy vehicles, and also providing professional technology consulting, inspection and service for the insulation products.

We established Shanghai Xiyaxin Electronic Materials Co., Ltd and Shanghai Honggong New Materials Co., Ltd in order to serve our customers. These two company is specialized in all kinds of electronic products, electronic materials, insulation materials, chemical products sales and import and export business.

Besides, Honggong is primary dealer of DuPont™ Nomex® Insulation paper in China, provides Nomex® Paper product and service.
