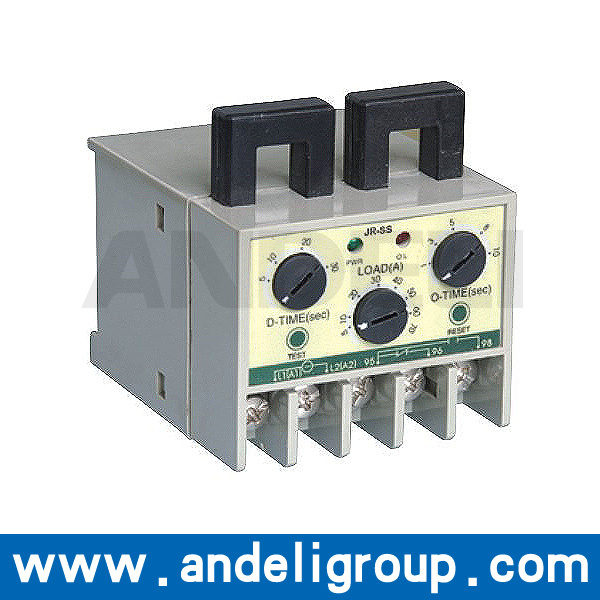

Electrical Relay Electronic Overload Relay (JR-SS)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Paypal |
Prod Model: |
JR-SS |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Rated Voltage: |
600vac, 50/60Hz |
Product Description
1. 20 years - Andeli Group Co.,Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150,000,000 - The total assets is USD150,000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA...
ApplicationAJR-SS electronic overload relay is suitable for AC 50/60Hz, voltage up to 600VAC and currentup to 60A. It is used as overload and phase loss protection, independently adjustable startingand trip delay, visual current setting aid and trip indication, fail safe protection (N type) andelectronic shear pin function. The product conforms to IEC60947-1 standard.

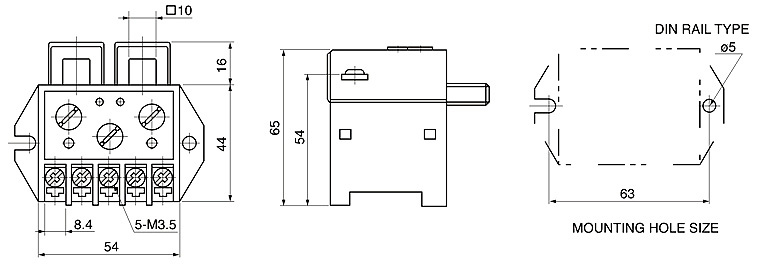

DimensionAbout us
Type |
AJR-SS |
Current range |
05)0.5-5A(scale 6.5A) |
30)3-30A(scale 35A) |
60)5-60A(scale 70A) |
Rated voltage |
600VAC, 50/60Hz |
Operation setting |
D-TIME |
0.2-30seconds |
O-TIME |
0.2-10seconds |
Accuracy |
Current |
± 10% |
Time |
± 15% of max. time set value |
Time characteristics |
Definite time |
|
Control voltage |
220)Voltage free(90~260)VAC, 50/60Hz
440)Voltage free(320~480)VAC, 50/60Hz
Other voltage optional. |
Current sensing |
2 CTs |
Output contacts |
Contacts |
SPDT 3A/250VAC Resistive |
Condition |
N Type |
Normally energized: 95- -98closed |
R Type |
Normally De-energized: 95-|/|-98closed |
Reset |
Manual or remote electrical by interrupting supply |
Environment |
Temp. Run |
Run |
-20+70 deg. o C |
Store |
-30+80 deg. o C |
Humidity |
45~85% RH, non-condsing |
Insulation |
Between casing and circuits: Over 10MΩ with DC 500V megger |
Dielectric strength |
1)Between casing & circuits: AC 2000V, 60Hz, 1 min |
2)Between contacts: AC 1000V, 60Hz, 1 min |
3)Between contacts: AC 2000V, 60Hz, 1 min |
Power consumption |
Under 2W |
Mounting |
35mm Din Rail(D) |
The run-up current of motor(starting current)does relay trip because overcurrent protection of AJR-SS is not applied during motor run-up time. |

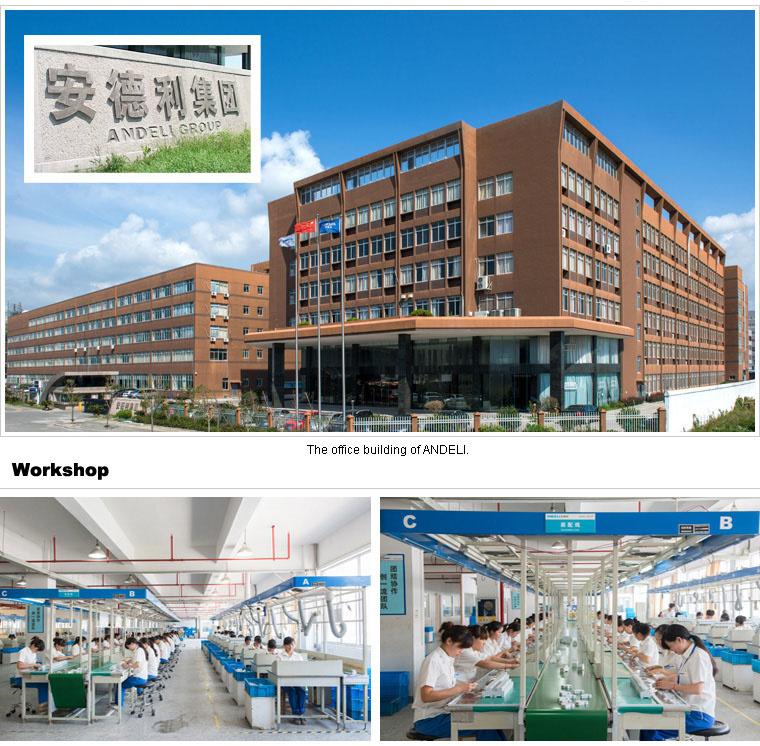

Established in 1993, ANDELI Group Co., Ltd. is a specialized manufacturer of low voltage electrical equipment. ANDELI Group owns 12 share-holding companies in Shanghai, Hunan, Zhejiang, UAE and over 300 member enterprises. "ANDELI" trademark is identified as one of the Chinese well-known trademarks. ANDELI Group ranks among top 500 in electric industry in China and our products are granted the title of the national products exempt from inspection.
With a workshop covering more than 27, 000 square meters, we are able to supply various circuit breaker, MCB, MCCB, RCCB, contactors, relays, fuse, transformer, voltage stabilizer, switching power supply, meters, solar products, welder and other electric products.
Moreover, with over 60 series and more than 2, 000 specifications, the annual output volume has reached USD24, 000, 000 in 2013. ANDELI regards quality of products as life. Our company is certified with ISO9001 and we have obtained CCC (China Compulsory Certification), RoHS, CCEE, CE, CB, SIMKO and KEMA certificates.
Through outstanding performance and excellent reputation, ANDELI has won many national awards and been recognized as one of the distinguished brand name in its local market. In the future, ANDELI will continue ensuring that our products meet the expectation of our customers with respect to product quality, and pursuing advance to integrative value of enterprise and sustainable growth.
Providing quality products, excellent service, competitive price and prompt delivery, we are now looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
