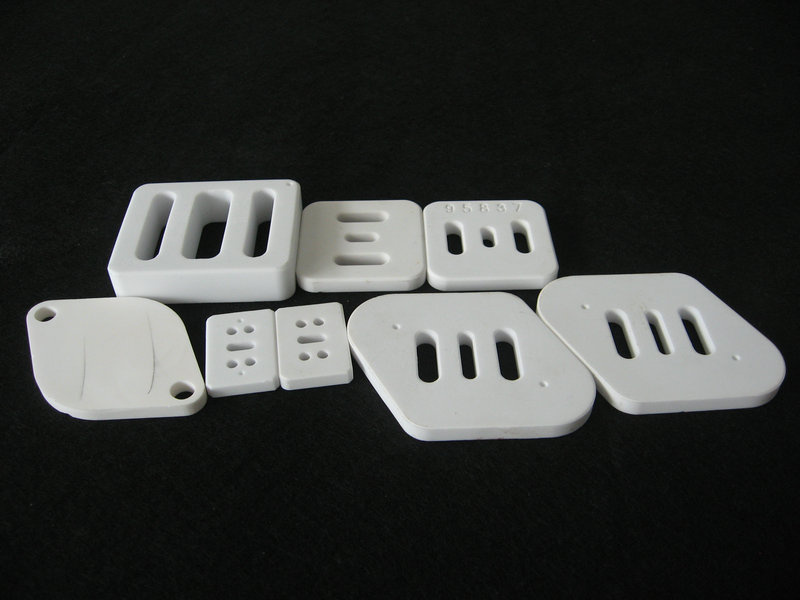

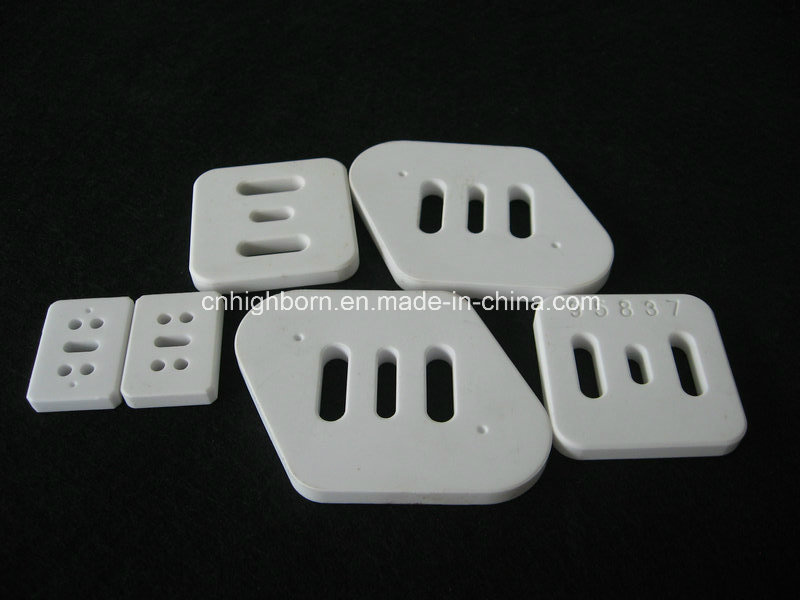

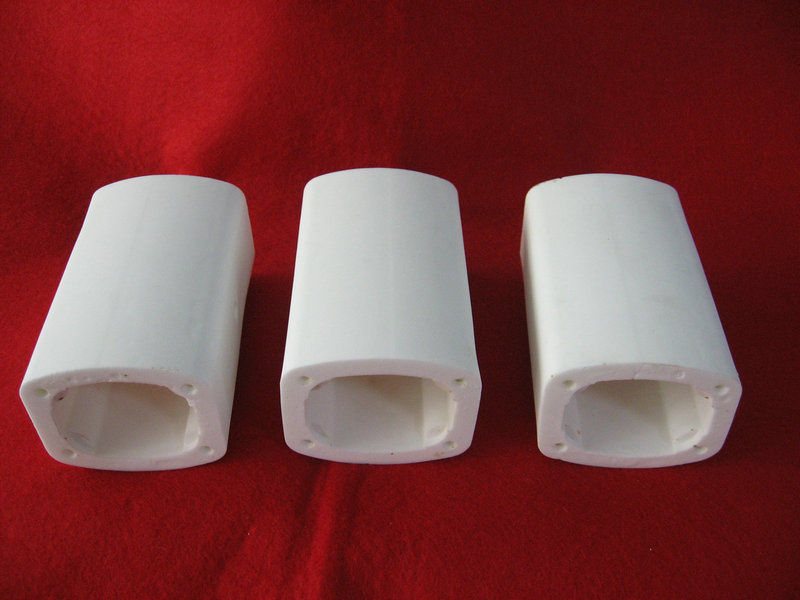

Electrical Steatite Ceramic Insulator Part

1.95% alumina or steatite ceramic


2.heat compression molding,the alumina has been to improved insulation and mechanical strength.

3.The ceramics without crack, without burr,without pinholes,without gaps,without impurities, surface is smooth,

dye absorption is passed.


4.The ceramic body is compact, Density ≥ 3.65g/cm3, high mechanical shock resistance.


5.Linear Dimension Tolerance ≤ ±0.015mm,Aperture Tolerance ≤ ± 0.02mm,

Hole Deformation Size ≤ 0.01mm,Circumferential Deformation Size ≤ 0.1mm.


6.Insulation Resistance ≥ 100MΩ (have been checked by megohm in DC500V).

7.Dielectric Strength: AC2000V/50HZ/1min no breakdown phenomenon.


8.Linear expansion coefficient is slight,and less than 8.0 × 10-6mm /°C, and good for thermal shock performance.


9.Sintering temperature is 1700 °C, the use of a temperature not lower than 1300 °C, good corrosion resistance.

Performance
Item	Index	Unit	Steatite ceramic	95 Al2O3	96 Al2O3
Physical Characteristics	Bulk density	g/cm3	2.7	3.6	3.6
	Water absorption	%	0	0	0
Mechanical Characteristics	Flexural strength	Mpa	145	320	340
	Hardness Vickers	Gpa	5.7	12.2	13.5
	Elastic modulus	Gpa	120	280	320
	Poisson's ratio	-	0.21	0.22	0.23
Thermal Characteristics	Linear expansion coefficient	20-5000C       10-6/0C	7.9	7.1	7.2
	Thermal conductivity	w/(m.k)	2.5	16	24
	Specific Heat	*10-3J/(kg*K)	0.75	0.78	0.78
Electrical Characteristics	Dielectric constant(1MHZ)	-	6.2	9	9.4
	Dielectric loss angle	*10-4	18	15	5
	Dielectric strength	*106V/m	18	12	15


Packaging & Shipping
professional export packaging(cartoon&wooden box)

Our Services

 We can design upon the customers' detailed requirements.OEM production.package or logo can be make according to customers' need. professional fragile packaging services.
