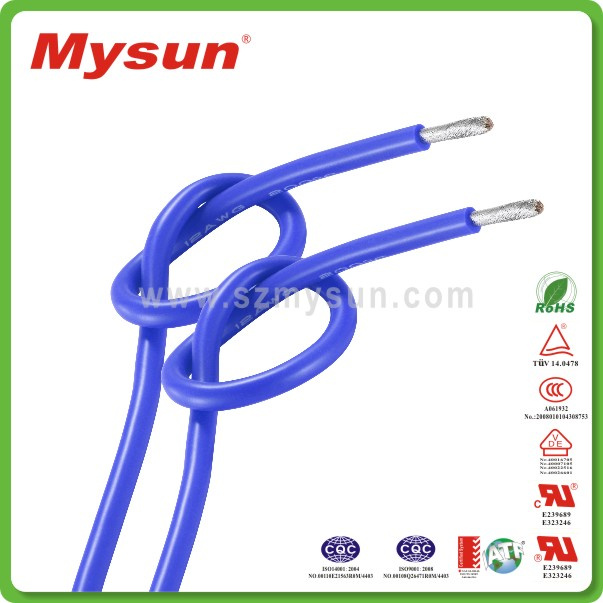

Electrical Wire High Temperature Flexible Silicone Insulated Cable

Name: Electrical Wire High Temperature Flexible Silicone Insulated Cable
Brand: all-electronics-online.com
SKU: 830082645
Availability: InStock
Rating: 4.4 (51 reviews)

Price:	US $ 0.1-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specification:
Silicone rubber wire UL3135 600V 200ºC

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Inside thickness(mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m)(Ft)
26	1/0.40	0.40	0.78	1.96	143	610/2000
	7/0.16	0.48		2.04
	19/0.10	0.48		2.04
24	1/0.50	0.50	0.78	2.06	89.3	305/1000
	7/0.20	0.60		2.17
	19/0.12	0.60		2.17
22	1/0.65	0.65	0.78	2.21	56.4	305/1000
	7/0.254	0.75		2.33
	17/0.16	0.75		2.33
20	1/0.81	0.81	0.78	2.37	35.2	305/1000
	7/0.31	0.93		2.50
	26/0.16	0.93		2.50
18	7/0.39	1.19	0.78	2.75	22.2	305/1000
18	41/0.16	1.18	0.78	2.75	22.2
16	7/0.49	1.49	0.78	3.05	14	305/1000
16	26/0.254	1.49	0.78	3.05	14
14	41/0.254	1.87	0.78	3.43	8.87	305/1000
12	19/0.47	2.35	0.78	3.92	5.53	305/1000
SIZE (mm²)
0.30	12/0.18	0.71	0.78	2.27	60	610/2000
0.50	20/0.18	0.92	0.78	2.48	40	305/1000
0.75	30/0.18	1.13	0.78	2.69	27	305/1000
1.00	40/0.18	1.31	0.78	2.87	20	305/1000
1.25	50/0.18	1.46	0.78	3.02	14	305/1000
1.50	30/0.254	1.61	0.78	3.17	9	305/1000
2.00	41/0.254	1.87	0.78	3.43	8.5	305/1000
2.50	50/0.254	2.08	0.78	3.64	7.3	305/1000

Prod Model:	UL3135 18AWG
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	CSA
Sheath Material:	Silicone Rubber
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

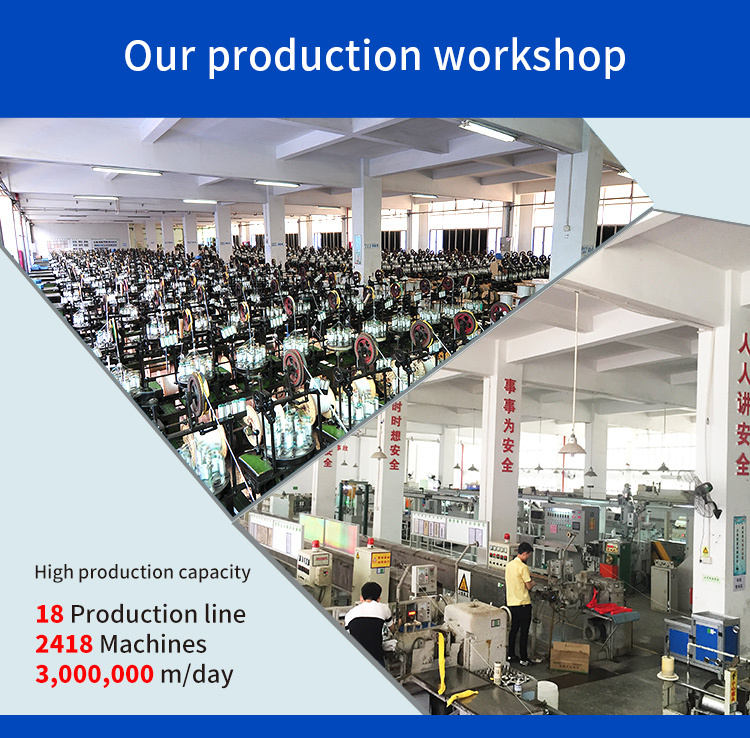

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
