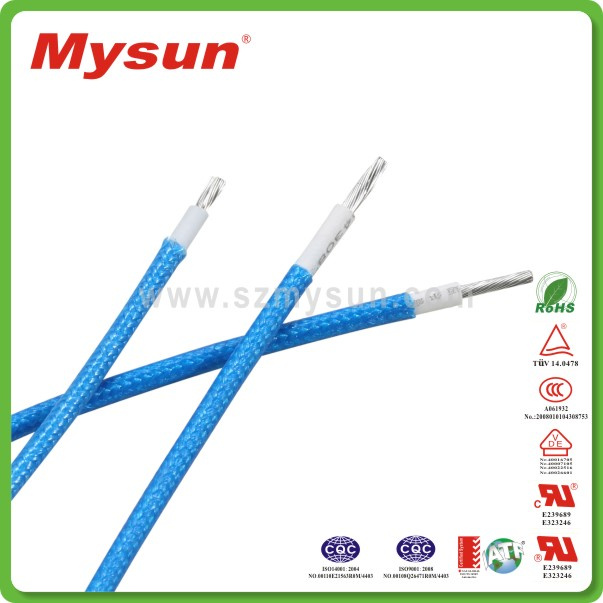

Fiberglass Braided Silicone Wire High Temperature UL Certificated Cable

Name: Fiberglass Braided Silicone Wire High Temperature UL Certificated Cable
Brand: all-electronics-online.com
SKU: 830388485
Availability: InStock
Rating: 4.4 (22 reviews)

Price:	US $ 0.1-0.14/Meter
Min Order:	6100/Meter
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Specifications:
Nominal voltage: 300V

Temperature range: 200C

Standard: UL 758

Conductor: Tinned copper wire

Insulation: Silicone Rubber

Insulation: Fiber Glass

Product dimensions:

Conductor			Insulation		Max.cond resistance (Ω/km)	Unit Length (m) (Ft)
Size (AWG)	Construction (No./mm)	Diameter (mm)	Nominal Thickness (mm)	Diameter (mm)	Max.cond resistance (Ω/km)	Unit Length (m) (Ft)
26	7/0.16	0.48	0.60	1.68	143	305/1000
24	7/0.20	0.61		1.81	89.3
22	7/0.254	0.77		1.97	56.4
20	7/0.31	0.94		2.14	35.2
18	7/0.39	1.19		2.39	22.2
16	7/0.49	1.49		2.69	14
24	1/0.50	0.50	0.65	1.80	89.3	305/1000
22	1/0.65	0.65		1.95	56.4
20	1/0.81	0.81		2.11	35.2
18	1/1.02	1.02		2.32	22.2
16	1/1.20	1.20		2.50	14
24	11/0.16	0.61	0.60	1.81	89.3	305/1000
22	17/0.16	0.76		1.96	56.4
20	26/0.16	0.94		2.14	35.2
18	41/0.16	1.18		2.38	22.2
16	26/0.254	1.49		2.69	14
0.30mm²	12/0.18	0.71	0.60	1.91	59.78	305/1000
0.50mm²	20/0.18	0.92		2.12	40.1
0.75mm²	30/0.18	1.13		2.33	26.7
1.00mm²	40/0.18	1.31		2.51	20
1.25mm²	50/0.18	1.46		2.66	14.35

Prod Model:	UL3122
Type:	Insulated
Conductor Type:	Stranded
Application:	Heating
Conductor Material:	Copper
Insulation Material:	Silicone Rubber
Certification:	CSA
Sheath Material:	Fiberglass
Range Of Application:	Home Appliance,LED,Metro
Brand:	Mysun

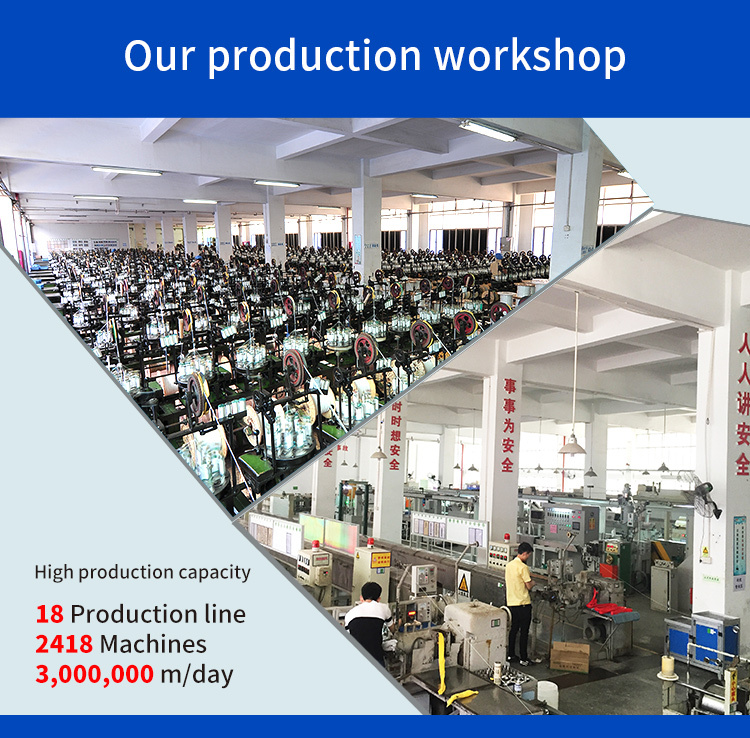

Shenzhen Mysun Insulation Materials Co., Ltd. is a company of producing, selling and trading all kinds have UL, cUL, CSA, VDE, CCC, SGS, Tü V certified high temperature wire and wire harness since 1999.

Products are widely used in home appliances, lighting, medical equipments, office facilities, thermal electronics and industrial machine. Products are with good appearance, high-quality, safety application and environmental- friendly.
