Electrochemical Ozone O3 Gas Detector Sensor Toxic Ambient Gas Monitoring

Name: Electrochemical Ozone O3 Gas Detector Sensor Toxic Ambient Gas Monitoring
Brand: all-electronics-online.com
SKU: 835493625
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	US $ 18-388/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Gas Module Introduction

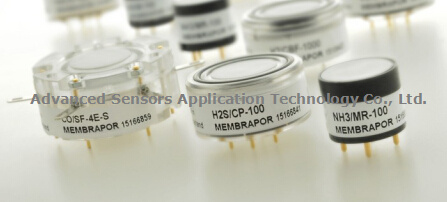

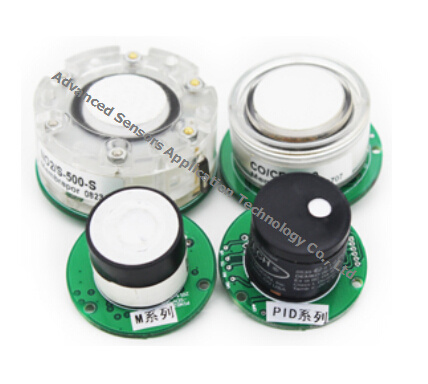

FAD gas module with two/three wire TTL/0-20mA/RS485 output, integrates toxic gas sensor + transmitter board. Adopting imported advanced electrochemical gas sensors, it has features of high accuracy, long lifetime, high stability and high anti-interference. The module is designed to prevent circuit reversed connection, high voltage, high current and lightning

Gas Module Feature

- Long lifetime imported advanced electrochemical sensors

- High accuracy op ams, power supply IC, stable and sensitive

- Detect low or high concentration toxic gases precisely

- High anti-interference ability

- Over range protection, reversed polarity protection and lightning protection

- Low power consumption with a standard 4-20mA two/three-wire signal output

- Interface: pump, diffusing, flange, flange thread types

- 12-36VDC operating voltage

Sensor Detecting Range Selection

Detecting range (ppm)/Size	Miniature	Compact	Slim	Standard
0-5	O3/M-5	O3/C-5	O3/S-5-S
0-100	O3/M-100	O3/C-100
0-200		O3/C-200
0-1000		O3/C-1000
0-5000		O3/C-5000
0-30000				O3/S-30000

Sensor Performance Characteristics(take O3/C-5 as an example)

Operation Principle	3-Electrode Electrochemical
Nominal Range	0-5 ppm
Maximum Overload	50 ppm
Inboard Filter	-
Output Signal	-1500 ± 500 nA/ppm
Resolution (Electronics dependent)	< 0.02 ppm
T90 Response Time	< 60 sec
Typical Baseline Range (pure air, 20°C)	< 0.1
Maximum Zero Shift (+20°C to +40°C)	0.1 ppm
Repeatability	< 5 % of signal
Output Linearity	Linear
Gain	-

Sensor Electrical

Rec. Load Resistor	10 Ohm
Bias (V_Sens-V_Ref)	not recommended
Conformity to RoHS directive	RoHS Compliance

Sensor Environmental

Relative Humidity Range	15 % to 90 % R.H. non-condensing
Temperature Range	-20 °C to 50 °C
Pressure Range	Atmospheric ± 10%
Pressure Coefficient	N.D.

Sensor Lifetime

Expected Operation Life	2 years in air
Expected Long Term Output Drift in air	N.D.
Filter Life	-
Storage Life	6 months in container
Rec. Storage Temperature	5 °C - 20 °C
Warranty Period	12 months from date of dispatch

Performance data conditions: 20 °C, 50% RH, 1013 mbar

Module Parameters

Module type	GM-I2(3)-M/C/S--**/G/P/F/FL
Detected gas	Toxic gas
Detecting principle	Electrochemistry
Sampling	Diffusing pump flange thread
Responding time	30s~40s(of the sensor)
Module accuracy	≤±3%FS(actual concentration, higher accuracy depends on specified sensors)
Module repeatability	≤±2% FS
Module linear error	≤±2% FS
Module zero temperature drift	≤±2% (FS/year)
Module operating temperature	-40~80°C
Module humidity	0-95%RH(non-condensation)
Sensor operating temperature	-20°C~50°C
Sensor humidity	0-90%RH(non-condensation)
Signal output	TTL/4-20mA /RS485 (two or three wire)
Transmitting distance	1000 meters(RS485)
Operating voltage	DC 12-36V
Maximum power	≤0.8W
Size	80*48mm
Explosion proof	Intrinsic safe
Connection cable	RVVP3 x 1.5mm²

Module applications
Petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking, leak detection, safety and environmental control

Prod Model:	O3/M(C)(S)-range-(S)
Output:	TTL/4-20mA/RS485
Transmitter Board:	Integrated/Seperated
Wire:	Two or Three Wire
Detecting Range:	Selectable
After Sale Service:	Yes
Material:	PC

Company introduction

Advanced Sensors Application Technology Co., Ltd. Was established on 2003. We are passionate about delivering high quality gas sensor products to our customers. Focus on customized manufacturing, we supply widely to many key industries through our diverse and state-of-art facilities. We have a technician team to support in material designs and testing to international standards meeting customers' requirements.

Products are widely used in petroleum, petrochemical, metallurgy, chemical, electricity, telecom, gas, mining, pharmacy, municipal wastewater treatment, indoor environment, atmospheric environmental protection, transit equipment, transportation facilities, tunnel safety and underground parking.
