Tosilon Electronic Piezo Ceramic Water Tank Level Sensor (CE, Ex Approved)
Design and Manufacturing according to CE Standard
Introduction

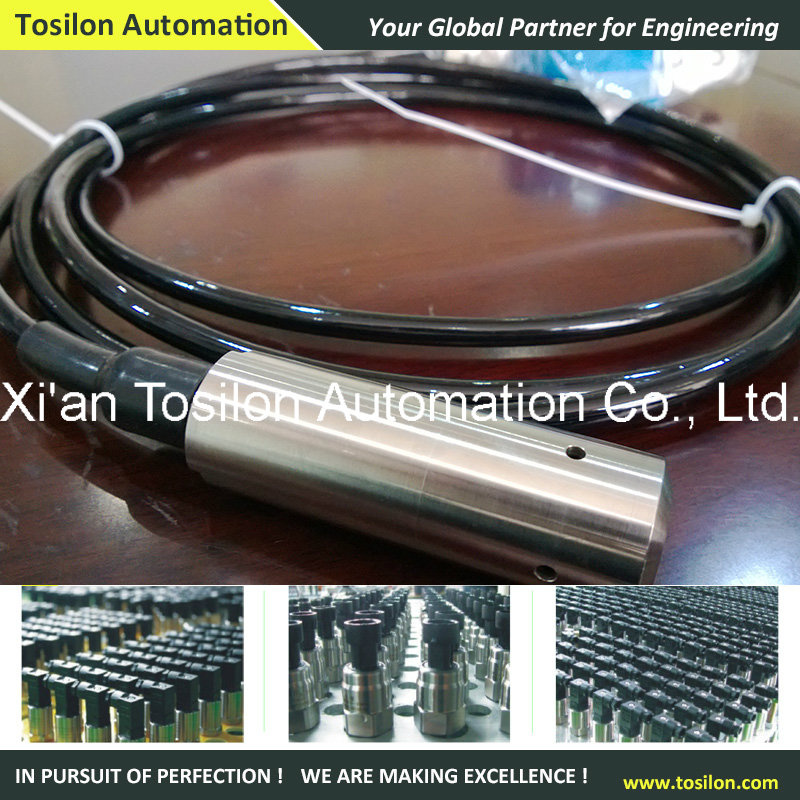

TLZ400M Submersible Level Meter use high performance piezoresistive pressure sensor as sensing elements. It measures liquid static pressure accurately which is positive proportional to liquid depth, transmitting pressure signal into standard current/voltage output signal by amplifier circuit board. The product has high accuracy, compact size and easy operation characteristics, for it can be submersible into the liquid to measure level from transmitter bottom to liquid surface. For the liquid measure and control of petroleum, chemi-industry, power station, city water supply and drainage and hydrology, it is widely used.
Features
- High Accuracy;
- Full stainless steel construction;
- Output Signal optional;
- Pressure Buffer Connector;
- Electric connection optional;
- Pressure connection optional;
- Ceramic core and cell imported from German;
- CE approved
- Conforms to ExiaIICT6
Performance Parameters (For Details, please contact Tosilon)
Pressure Range Overpressure
0~1...200mH2O 1.5 F. S
Accuracy
± 0.1%F. S, ± 0.25%F. S, ± 0.5%F. S As required
Stability Working Temp.
0.1%F. S Max. 0.2%F. S -400C~850C, -400C~1250C can be customized
Temp. Compensation Media
-100C~700C Compatible with 1Cr18Ni9Ti
Transmission Type Output
2-wire, 3-wire 4-20mA DC, 0-5V DC, 1~5V DC, 0~10V DC
Power Supply
10~30V DC, 6~24V DC/AC, 11~30V DC, DC & AC are possible, as required
Load Resistance Insulation
(U-10)/0.02(Ω ) >100kΩ >100M Ω @50V
Pressure Port
Submersible, Cable Joint M27× 1.5 As required
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Item | Description | Remark |
| Pressure Range | 0~1......200mH2O | 1mH2O≈9.81kPa |
| Overpressure | 1.5 F.S | |
| Accuracy | ±0.1%F.S, ±0.25%F.S, ±0.5%F.S | As required |
| Stability | 0.1%F.S Max. 0.2%F.S | |
| Working Temp. | -40~85 | -40~125 can be customized |
| Temp. Compensation | -10~70 | |
| Media | Compatible with 1Cr18Ni9Ti | |
| Transmission Type | 2-wire | 3-wire | |
| Output | 4-20mA DC | 0-5V DC
1~5V DC | 0~10V DC | |
| Power Supply | 10~30V DC | 6~24V DC/AC | 11~30V DC | DC & AC are possible, as required |
| Load Resistance | (U-10)/0.02(Ω) | >100kΩ | |
| Insulation | >100M Ω@50V | |
| Electrical Connection | Water-proof connection
IP68 | |
| Pressure Port | Submersible, Cable Joint M27×1.5 | As required |
| Pressure Type | Gauge | |
| Electromagnetic compatibility | electromagnetic emission | Electromagnetic Sensitivity | |
| EN50081-1/-2 | EN50082-2
|
