Electronic Temperature Controls (220V/50Hz, Red or Blue display)

Name: Electronic Temperature Controls (220V/50Hz, Red or Blue display)
Brand: all-electronics-online.com
SKU: 690513091
Availability: InStock
Rating: 4.9 (62 reviews)

Price:	US $ 4.6-6.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

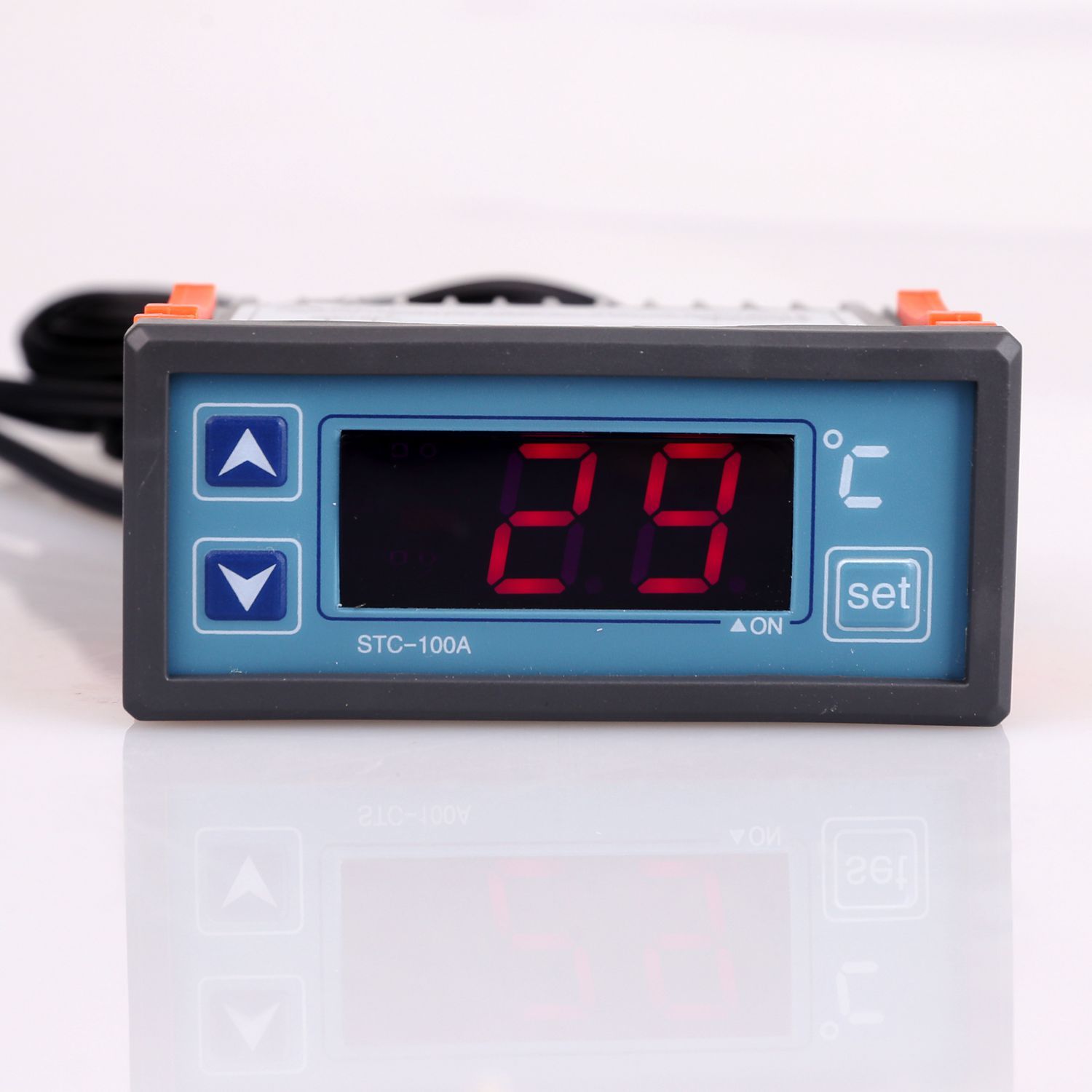

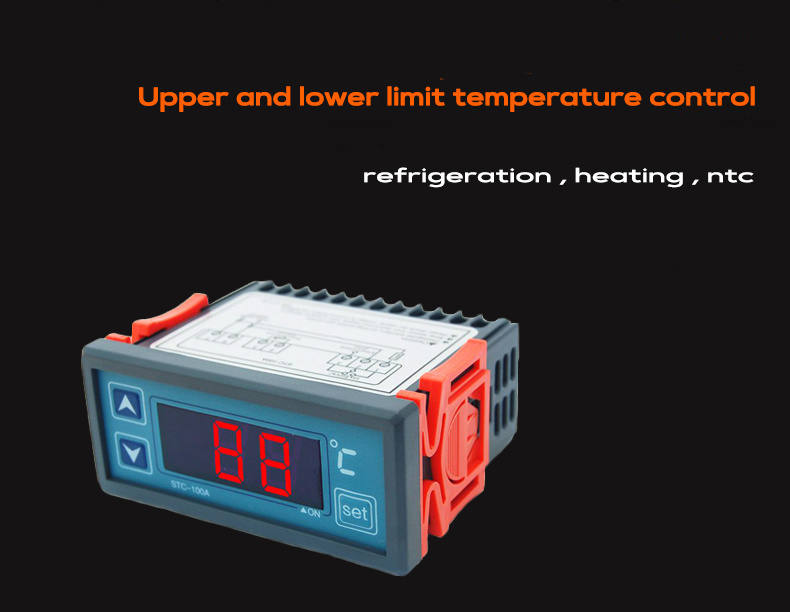

ElectronicTemperature Controls (220V/50Hz, Red or Blue display) STC-100A

Product features:

1.Switch the mode between heating and refrigerating.
2.Controlling the temperature by adjusting both the temperature setting value and difference value.
3.Delay protection when refrigerating and heating starts.
4.Limit the temperature setting range.
5.Calibrate the temperature.
6.Alarm when sensor error.

Specifications and Technical Parameters:

Model number	STC-100A
Power Supply	220VAC±10%;50/60HZ
Measure temperature range	-40ºC~99ºC
Resolution	1ºC
Accuracy	Suitable for refrigeration,seafood machine,water heaters and other equipment and venues simple and easy temperature cpmtrol alarm product;

Technical parameters:
1.Power supply:220VAC±10%/-15%,50/60Hz
2.Power consumption:≤3W
3.Temperature measuring range:- 40 ºC~+99 ºC
4.Temperature controlling range:- 40 ºC~+99 ºC
5.Resolution: 1 ºC
6.Accuracy:±1ºC,±0.5digit
7.Relay output capacity:10A(0.5HP)/220VAC
8.Delay time when sensor error:1 min

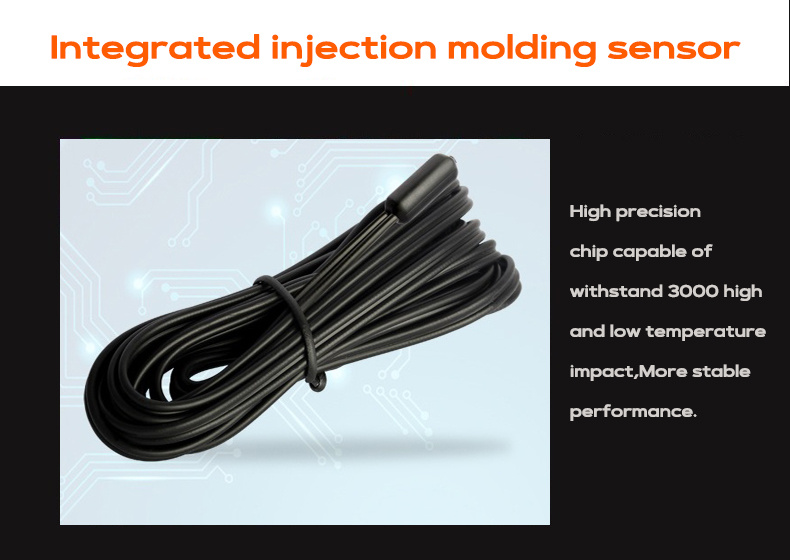

9.Sensor type:NTC sensor
10.Safety level of the front panel:IP54
11.Operating temperature:0ºC~+60ºC
12.Storage temperature:-30ºC~75ºC
13.Relative humidity:+20%~+85%(No condensate)

Installation Size:
1.Product size:77mm*34mm*62mm
2.Installation hole size:71mm*29mm

Product Display:

Company Information:

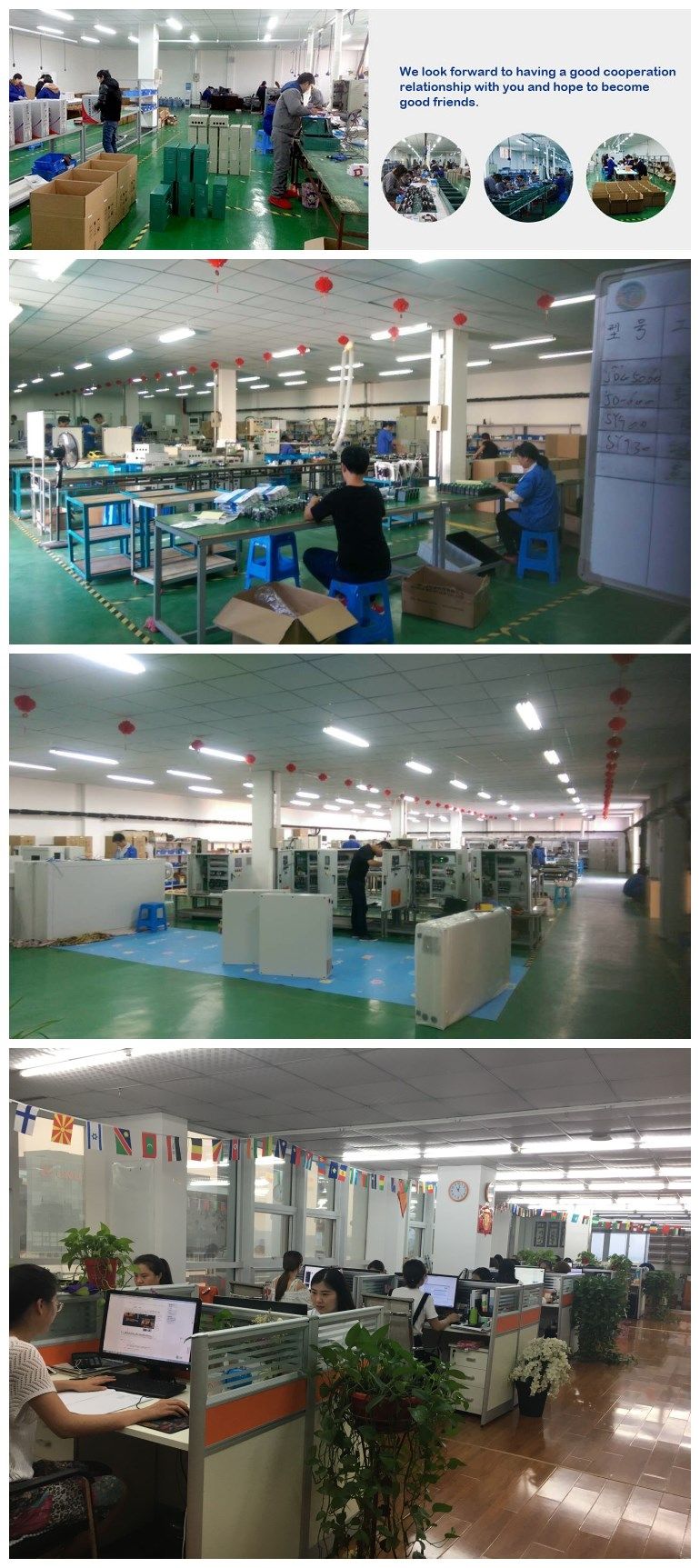

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO.,LTD
Founded in April 2005, is a professional manufacturer in the field of Micro-computer temperafure controller Micro-computer humidity controller, Micro-computer temperature and humidity controller, Micro-computer pressure controller, Digital thermometer and hygrometer, refrigeratory electric control box, the products adapt to many locations and areas that need the measuring and controlling of temperature, such as freezing and cold store, refrigeration display cabinet, seafood pond and so on..

QC:
All of products must have been inspected 5 times before delivery
1) Checking the raw material after they arrived our factory
2) Checking all the details while the production line operated
3) Checking the goods after they are finished
4) Checking all the goods after they are packed

FAQ:
1.MOQ is 100 pieces.
2.OEM/ODM is welcomed!
3.Shipping terms:1) Sample time:3-5days(without LOGO printing),5-7days(with LOGO printing)
2) Production time:7-25days(Depends on the Qty) after advanced payment received
4.Shipping way is depand on your choose.

Prod Model:	STC-100A
Customized Voltage:	Available
Silk Print:	Available
Usage:	Refrigeration&HVAC
Sensor:	Ntc
Color:	Grey and Orange
Function1:	Adjust
Function2:	Alarm
Function:	Delay
Product Size:	77mm34mm62mm
Hole Size:	71mm*29mm

XUZHOU SANHE AUTOMATIC CONTROL EQUIPMENT CO Ltd

Founded in April 2005 is a professional manufacturer in the field of Micro computer temperafure controller Micro computer humidity controller Micro computer temperature and humidity controller Micro computer pressure controller Digital thermometer and hygrometer refrigeratory electric contron display cabinet seafood pond and so on ol box the products adapt to many locations and areas that need the measuring and controlling of temperature such as freezing and cold store refrigeration

Through the research of above locations need the measuring and controlling temperature, we developed JD, JDC, JTC, JDJ, YK and electric control box etc several series.

Excellent pertinence advanced assembling, easy structure, strong anti-interference, reliable stability. We can make products according to your needs.

Usually, we will quote the FOB Shanghai price for you, if you need CIF price, please tell me your destination port, I will caculate the price for you. Our minimum order is 1000PCS, and the terms of payment is T/T or L/C. And the delivery time is 30 days after order placed.

We sincerely hope that we can have long-term cooperation with you, and to be our business partner. If you have some questions, please tell me, we will send the products quotation to you.
