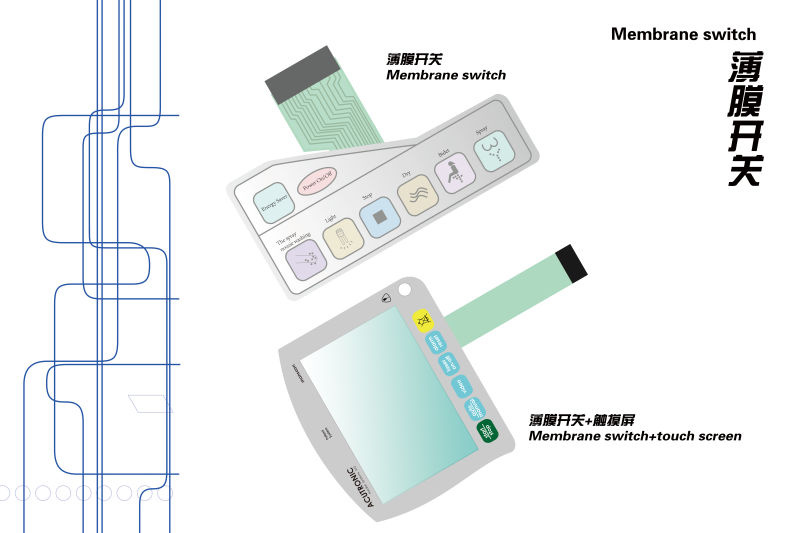

Emboss Type Button Membrane Switch with FPC Circuit
| Price: |
US $ 5-5.5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
XWM-016 |
| IP Grade: |
IP67 |
| Custom Service: |
Available |
| Overlay Material: |
F150 |
| Key Option: |
Flate or Tactile Key |
| Type: |
Flexible |
| Material: |
PET |
| Application: |
Camera |
| Structure: |
Overlay + Circuit +3m467 |
| Detection Method: |
Electrical Test |
| Brand: |
Singway |
Product Description
Our Product:
a) Tactile membrane switch
b) Non-tactile membrane switch
c) PCB/FPC
d) Shielding membrane switch
e) Embedded LED or resister membrane switch
f) Meatl keypad and keyboard
g) Sheet metal fabrication, cutting, bending, stamping and welding
h) Classic China custom new design waterproof push button switch membrane manufacturer
| Electrical Property |
| Working voltage | working current | contact resistance | Insulation resistance | Base material pressure | Recoil time | Loop resistance | Insulation ink pressure |
| ≤50VDC | ≤100mA | 0.5~10 Ω | ≥100m Ω | 20KDVC | ≤6ms | 50 Ω ,150 Ω ,350 Ω or based on customer's requirement | 100VDC |
| Mechanical Property |
| Working life | Closingdisplacement | Snapping back time | Power standard | The caudal may old |
| >1,000,000 | 0.1~0.4mm(not touch type);0.4~1.0mm | ≤6ms | 15~750g | ≤180° |
| Environmental Performance |
| Operating temperature | Storage temperature | Working humidty | Barometric pressure | Altitude |
| -20°~+70° | -40°~+85° | 95%±5% | 86~106kDa | 0~400m |
| Printing indicators |
| 1,The printing size deviation±0.1mm;Exterior line deviation ±0.1mm. |
| 2,No ink dispersed,no word disability. |
| 3,The color difference is not more than grades two. |
| 4,No crease or paint drop. |
5,Window transparent and clean,color uniformity,no scratch/pinhole/or impurity.
What are Membrane Switch?
A membrane switch is a momentary switching device that is manufactured by using a series of flexible layers of polymer films and adhensives. The upper-most layer, called a graphic overlay, is manufactured by printing on the second surface of clear polyester or polycarbonate film. Membrane switches can be constructed with multiple circuit layers, and more elaborate graphic design features, such as domed key embossing. Designs that are more complex require, more material layers for proper construction and reliable operation. Membrane switches, when combined with components such as a tactile dome, graphic overlay, or integrated LEDs or resistors can provide the designer with virtually limitless capablities to create the ideal custom user interface for their products. |
Dongguan Singway Electronic Technology Co., Ltd. Was established in September 2011, a set of research and development, manufacturing, sales and service as one of the high-tech enterprises, adjacent to the beautiful scenery of the Dongguan Songshan Lake Science and Technology Industrial Park, plant construction area of about 7000 square meters, the company has a high-quality professional management and R & D team, management and engineering and technical personnel account for 40%, with advanced and system, the value of the touch screen technology and solutions provider.
Dongguan Singway Electronic Technology Co., Ltd. is a professional R & D, manufacturing Touch Panel ITO (touch screen) manufacturers. Has the introduction of the United States, Japan, Taiwan and the domestic production, testing, laboratory equipment. Mainly to provide pre installed and post navigation, security, industrial control, smart home, medical equipment and other special touch screen. The monthly output is 400K/PCS, and has gradually become the outstanding supplier of many large enterprises. Dongguan Xing Electronic Technology Co., Ltd. Adhering to the "product quality first, market-oriented, customer value maximization" for the business philosophy; "thinking, conservation, implementation of the" management philosophy; "quality of service first, to maximize meet customers all reasonable demand" for the service concept. Relying on excellent technology and sophisticated equipment, and continued to establish a perfect quality, environment, safety and health management system, to promote the company's overall management of continuous improvement and continuous improvement. Has passed ISO9001/TS16949 quality management system, ISO14001 environmental management system, OHSAS18001 occupational health and safety management system, QC080000 hazardous substance process management system certification.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
