Embossed Electrical Battery Rubber Overlay Keypad Membrane Switch

Name: Embossed Electrical Battery Rubber Overlay Keypad Membrane Switch
Brand: all-electronics-online.com
SKU: 616555204
Availability: InStock
Rating: 4.4 (101 reviews)

Price:	US $ 0.5-10/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-MS-005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Embossing:	Rim Embossed
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Exterior:	Good Looking
Touch Feeling:	Excellent Touch Feeling
Material:	PET
Type:	Convex
Application:	Machines

Product Description

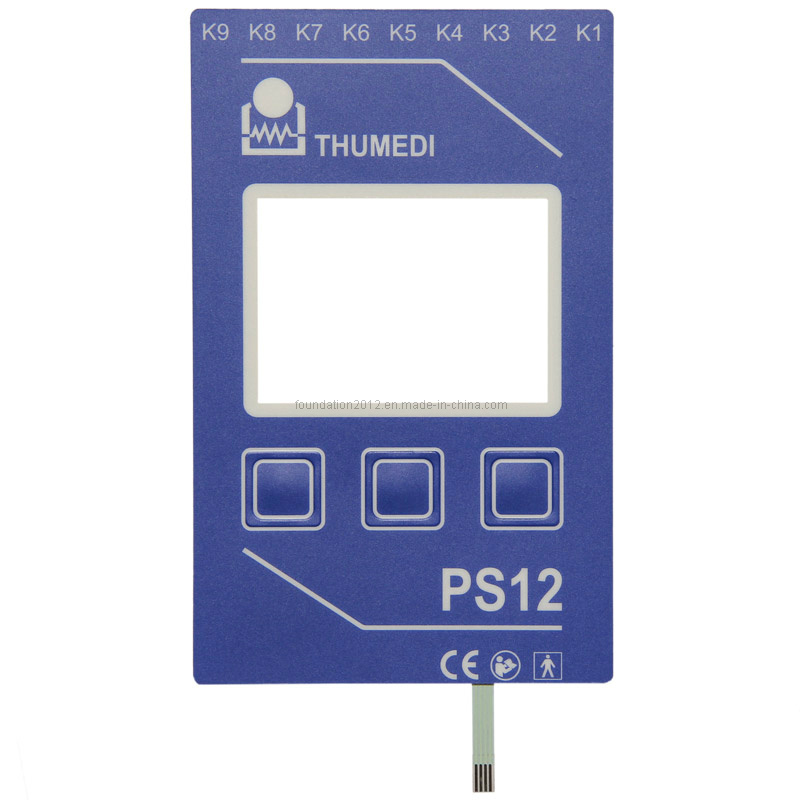

Embossed Electrical Battery Rubber Overlay Keypad Membrane Switch

Membrane Keyboard Switch: Small size, light weight, thin thickness, abrasion resis tant, installation and connection convenience

Keyboard Membrane Switch Key Specifications
Special Features: Custom tactile PET membrane switch
Specifications: Material: PET advised, matte PC (smooth), gloss PC + matte oil, gloss PC and PVC
Color: Pantone and RAL color matching system
Thickness: 0.4---1.4mm
LED windows: Transparent and translucent
Keys: Embossed keys, no embossed keys and domes, domes without embossed keys, embossed keys without domes, embossed keys and domes
Adhesive: 3M9448, 3M300LSE, 3M467, 3M468, Nitto etc.
Tail: Tail with clear mask or green mask

Production Capacity: 1000000times
Unit price: Negotiable/
Shipment terms: EXW
Payment terms: T/T
Origin: Dongguang
Packing: In carton

Notice: We have the capacity to provide you membrane switches with other special requirements, such as water proof, Shielding, Windows/Lens Coating, Embedded LEDs, UV glossy/ matte/ textured, etc.

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
