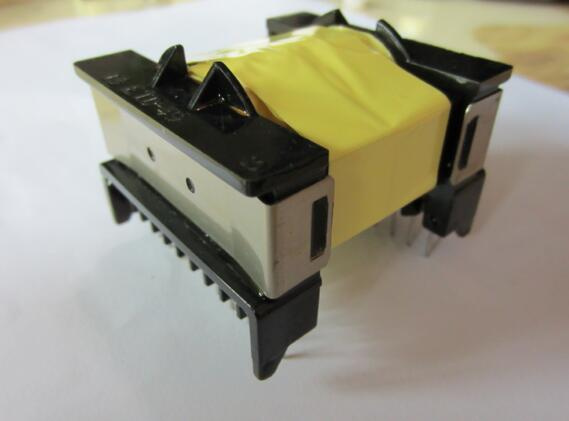

Etd29 Etd34 Power High Frequency Transformer for Audio Equipment



COILFORMER DIMENSIONS (mm)
TYPE	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O
PQ20/16	23.15	17.35	23.15	20.3	2.5	9	3.8	5.1	17.9	9.7	7.82	10.8	2.4	0.6	7.35
PQ20/20	23.15	17.35	23.15	20.3	2.5	9	3.8	5.1	22	13.85	12	10.8	2.4	0.6	7.35
PQ26/20	26.6	21.85	29.75	25.4	-	12.3	3.8	7.6	21.5	11.05	9	14.2	2.4	0.65	7.2
PQ26/25	26.6	21.85	29.75	25.4	-	12.3	3.8	7.6	26.05	15.65	13.55	14.2	2.4	0.65	7.2
PQ32/20	32.15	26.7	34.3	30.5	-	13.85	5.1	7.6	22.35	11.05	8.9	15.9	2.8	0.75	7.2
PQ32/30	32.15	26.7	34.3	30.5	-	13.85	5.1	7.6	32.15	20.85	18.7	15.9	2.8	0.75	7.2
PQ35/35	35.00	31.0	39.0	-	-	15	-	-	37.4	-	22.4	16.9	-	1	5


1).Features:
 Has a strong anti-interference, distributed capacitance, impedance, attenuation of low transmission, firm
structure,can fine-tune the inductance, etc., are widely used in fax
machines, PBX.
2). Applicable frequency range: 20 to 100kHz :
Operating frequency: higher than 200kHz
High magnetic flux and low loss magnetic materials
With low leakage inductance and high efficiency .


 3).Applications:


PCB circuits, computer, TV, monitor, scanner, duplicator, mobile adapters, printer and other equipments and
instruments.
UL insulation system for Class B (130), F (155), H (180)


4). Can make other customized Ferrite transformers:
Power range: core type using N67 grade material
<5: RM4, P11/7, EF12.6 and U10
5 to 10: E (F) 16, RM5 and P14/8
10 to 20: RM6, E (F) 20, P18, U15 and EFD15
20 to 50: RM8, P22, RM10 ETD29, E25 and EFD20
50 to 100: ETD29, ETD34, RM12, P30 and EFD25
100 to 200: ETD34, ETD39, ETD44, P36, E30, E42 and EFD30
200 to 500: ETD44, ETD49 and E55
>500: ETD54, ETD59 and E65
