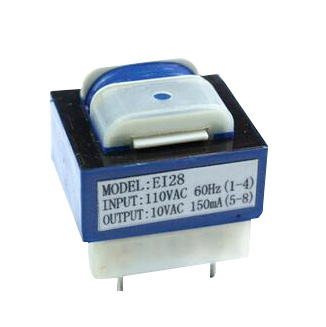

Transformer (EI28*17) Transformer, Low Frequency Isolation Transformer

Specifications
1. Low frequency transformer
2. Output power: 0.1W-400W
3. Rated current: 0.1A-20A
4. Rohs, CQC, CE

Power transformer Applications
1. VCRS, Copy machine, Audio equipment, Game machines;
2. TV sets, Microcomputer equitpmen
3. Communications control equipment
4. Printers, Terminals.
5. Wigh good magnetic shield form itself and slight interferece.

Power transformer Electrical Characteristics:
1. Operating Temperature range: -20 to +65
2. TV sets, Microcomputer equipment
3. Switching frequency: 50Hz to 60Hz
4. Withstanding voltage: 1500/3750VAC for 1 mins between primary&secondary
5. Insulation resistance: 500VDC 100M min. Between primar&secondary


Model	Power	Dimension(cm)					Weight (KG)	Voltage   regulation	Approval mark
		A(cm) ±1.5	B(cm) ±2	C(cm) ±2	D(cm) ±2	E(cm) ±2
TDW-EI28	1.5W	43		30	38	28	0.11	35	CE,
TDW-EI35	3.0W	47		37	38	33	0.15	22	CE,
TDW-EI41	11.0W	54		43	47	35	0.32	16.5	CE,;
TDW-EI48	25.0W	62		50	65	43	0.57	13.1	CE,
TDW-EI57	40.0W	73		59	65	51	0.84	11.8	CE,
TDW-EI66	80.0W	83		68	80	58	1.38	9.3	CE,
TDW-EI76	140W	64	70	76	85	68	2.25	7.6	CE,
TDW-EI86	180W	72	75	86	92	73	2.82	7.1	CE,
TDW-EI96	250W	80	81	96	90	82	3.36		CE,;
