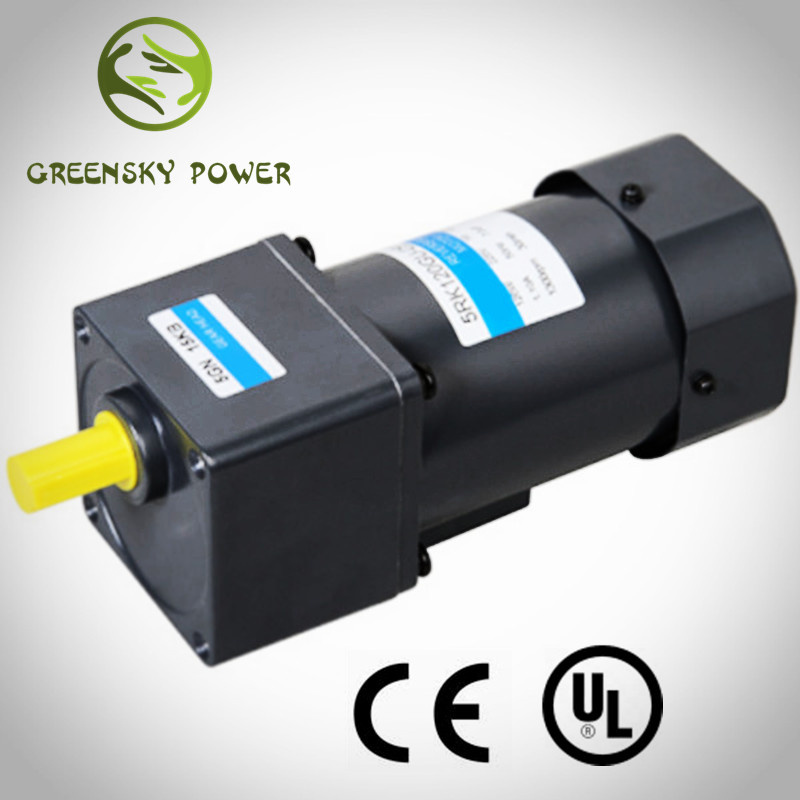

EVA AC 120W 90mm Reversible Gear Motor

Name: EVA AC 120W 90mm Reversible Gear Motor
Brand: all-electronics-online.com
SKU: 743164995
Availability: InStock
Rating: 4.7 (78 reviews)

Price:	US $ 24.3-25/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	5RK120GU-AF
Markets:	North America,South America,Africa,Eastern Asia,Western Europe
Rated Speed:	1250/1550rpm
Power:	120W
Voltage:	110V~220V/230V
Frequency:	50/60Hz
Rated Torque:	0.930n.M
Capacitor:	35UF
Function:	Driving
Number Of Stator:	Single-Phase
Brand:	GS
Certification:	CE UL

Product Description

Introduction
Reversible motor has a friction brake at the back of the motor body, which is designed for application where reversal of direction is frequently required.The reversible motor is like induction motor that started by the capacitor and has a same torque characteristic with the induction motor.But the reversible motor is designed with a higher starting torque to increase the instant reversal features.
View Of Item
COMPANY OVERVIEW

About Greensky Power
History:Greensky Power Co.,ltd was founded in Los Angeles in 2008 and has focused on manufacturing and supplying the renewable products and components for 8 years since 2008.
Market:Greensky Power has customers in 30 different countries.Germany, Austria, Japan, USA and Middle-East are our main market.
Honors:Greensky Power is member of a council in Zhejiang Solar Association which is the biggest renewable energy association in Southeast of China.

Model	Voltage V	Rated Power W	Rated Current A	Rated Speed RPM	Rated Torque N.m	Capacitor uF
5RK60GN-A	100	120	2.25	1250	0.930	35
			2.85	1550	0.750
5RK60GN-E	110	120	1.90	1550	0.750	30
	120		1.90
5RK60GN-C	220	120	1.15	1250	0.930	8.0
	230		1.15
5RK60GN-H	220	120	1.20	1550	0.750	8.0
	230		1.20
