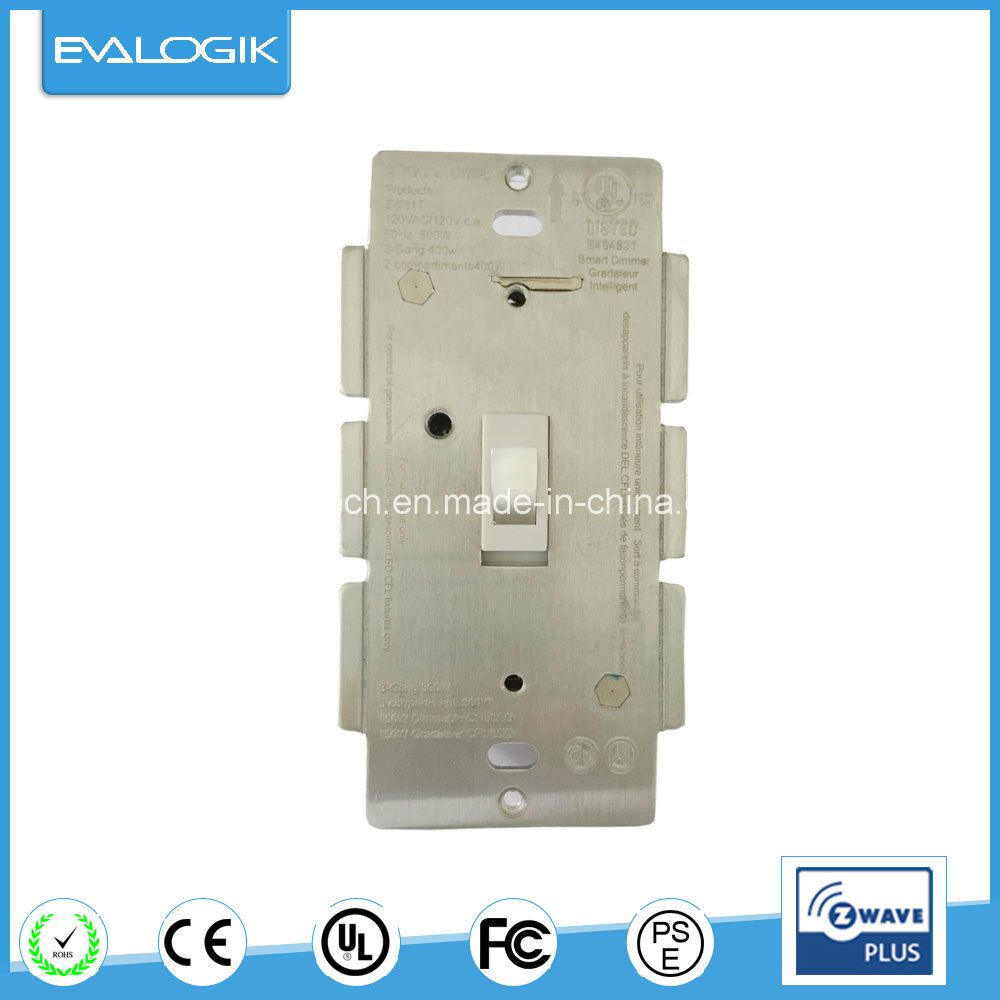

EVA Logik Toggle Dimmer Switch (ZW31T)

Prod Model:	ZW31T
Markets:	North America,South America
Power:	120 VAC, 60 Hz.
Size:	115(L)*70(W)*44(H)mm
Range:	Mini 30m Line of Sight
Approval:	UL,FCC,Z-Wave
Maximum Loads:	500W, 2-Gang 400W or 3-Gang 300W Incandescent /150
Operating Temperature Range:	32-104° F (0-40° C)
Use Environment:	for Indoor Use Only
Z-Wave Frequency:	908.42MHz
Type:	Composite
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	EVA Logik

Product Description

ZW31T   In-wall Wireless Smart Switch,Dimmer

Introduction

The Wall Mounted Switch is a component of the lighting control system.Wire the Wall Mounted Switch in place of a standard wall switch.Inclusion of this Switch allows remote ON/OFF control of loads connected.This Wall Mounted Switch is designed to work with other
Z-Wave enabled devices.Z-Wave nodes of other types can be added to the system and will also act as repeaters.

Technical data

Operating Voltage	120Vac/60Hz
Maximum Load	500W, 2-gang 400W or 3-gang 300W incandescent /150W CFL/LED
Powered by	Z-wave 500 seires chip
Range	Min 30m line of sight
Relay	15A (ON/OFF)
Operating Temperature Range	32-104°F (0-40°C)
Dimensions	115(L)*70(W)*44(H)mm
Net weight	130g

Approval	Rohs,FCC, UL
Z-wave frequency	908.42MHz

Installation

1.Before installation ensure that the voltage supply is disconnected.
IMPORTANT!Verify power is OFF to switch box before continuing.
2.Remove wall plate.
3.Remove the switch mounting screws.
4.Carefully remove the switch from the switch box.DO NOT disconnect the wires.
5.There are up to five screw terminals on the switch;These are marked
A.LINE (Hot) - Black (connected to power)
B.Neutral - White
C.LOAD - Black (connected to lighting)
D.GROUND - Green/Bare
E.TRAVELER - Red/Other (only used in 3-way installations)
Match these screw terminals to the wires connected to the existing switch.
6.Disconnect the wires from the existing switch.Be careful to label wires according to the
Previous terminal connection.
Observe Important Wiring Information
IMPORTANT!:This switch is rated for and intended to only be used with
Copper wire.
Wire Gauge Requirements
Use 14 AWG or larger wires suitable for at least 80° C for supplying Line (HOT), Load, Neutral,
Ground and Traveler connections.
Wire strip length:
For attachment to screw terminals:Strip insulation 1" (25mm)
For attachment using the enclosure's holes:Strip insulation 5/8" (16mm)
UL specifies that the tightening torque for the screws is 14 Kgf-cm (12 lbf-in).
7.Connect the green or bare copper ground wire to the GROUND terminal.
8.Connect the black wire that goes to the fixture to the terminal marked LOAD.
9.Connect the black wire that comes from the electrical service panel (Hot) to the terminal
Marked LINE.
10.Connect the white wire to the neutral terminal (use included jumper wire if needed).
Note:The Traveler terminal is only used for 3-way or 4-way wiring and should remain
Insulated if the switch is being installed in a 2-way system (one switch & one load).
11.Insert Switch into the switch box being careful not to pinch or crush wires.
12.Secure the switch to the box using the supplied screws.
13.Mount the wall plate.
14.Reapply power to the circuit at fuse box or circuit breaker and test the system.

Basic Operation
The connected light can be turned ON/OFF in two ways:
1.Manually from the front panel of the In-wall switch
2.Remotely with a Z-Wave Controller
Manual Control
The Front Panel Toggle Switch allows the user to:
Turn ON/OFF the connected fixture.
To turn the connected fixture ON:Press and release up on the toggle.
To turn the connected fixture OFF:Press and release down on the toggle.

Adding your device to a Z-wave network:
1.Follow the instructions for your Z-wave certified controller to include a device to
The Z-wave network.
2.ZW31T:Quickly press ON (Up) or OFF (Down)  button or  three (3) times
3.Once your controller has confirmed that the device has been included, refresh the Z-wave network to optimize performance.

Please reference the controller's manual for instructions.
Now you have complete control to turn your fixture ON/OFF or dim
According to groups, scenes, schedules and interactive automations
Programmed by your controller.

If your Z-wave certified controller features Remote Access, you can now control
Your fixture from your mobile devices.
To exclude and reset the device
1.Follow the instructions for your Z-wave certified controller to exclude a device from
The Z-wave network.
2.ZW31T:Quickly press ON (Up) or OFF (Down)  button or  three (3) times

To return your switch to factory defaults:
ZW31T:Remove device from Gateway will restore factory mode.
ZW31T:Support All On/All Off

Invert Switch
If the switch is accidentally installed upside down with "On" at the
bottom and "Off" at the top, the default On/Off rocker settings can
be reversed by changing parameter 1's value to "1".
? Parameter No: 1
? Length: 1 Byte
? Valid Values = 0 or 1 (default 0)


Safety and maintenance instruction
-       Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
-       Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
-       Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
-       Keep all parts away from young children's reach.
-       Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
-       Avoid dropping or shocks, this can damage the electronic boards.
-       Never replace damaged power cables yourself!In such case, remove them from the net and take the devices to a workshop.
-      Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.

Maintenance
The devices are maintenance-free, so never open them.The guarantee becomes void when you open the appliance.Only clean the outside of the devices with a soft, dry cloth or a brush.Prior to cleaning, remove the devices from all voltage sources.

NOTE
Do not use any carboxylic cleaning agents or petrol, alcohol or similar.These will attack the surface of devices.Besides, the vapors are hazardous to your health and explosive.Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.

Warranty 1 year
