Smart Home Wall Switch Socket & Outlet for Z-Wave Network
| Price: |
US $ 18-49/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

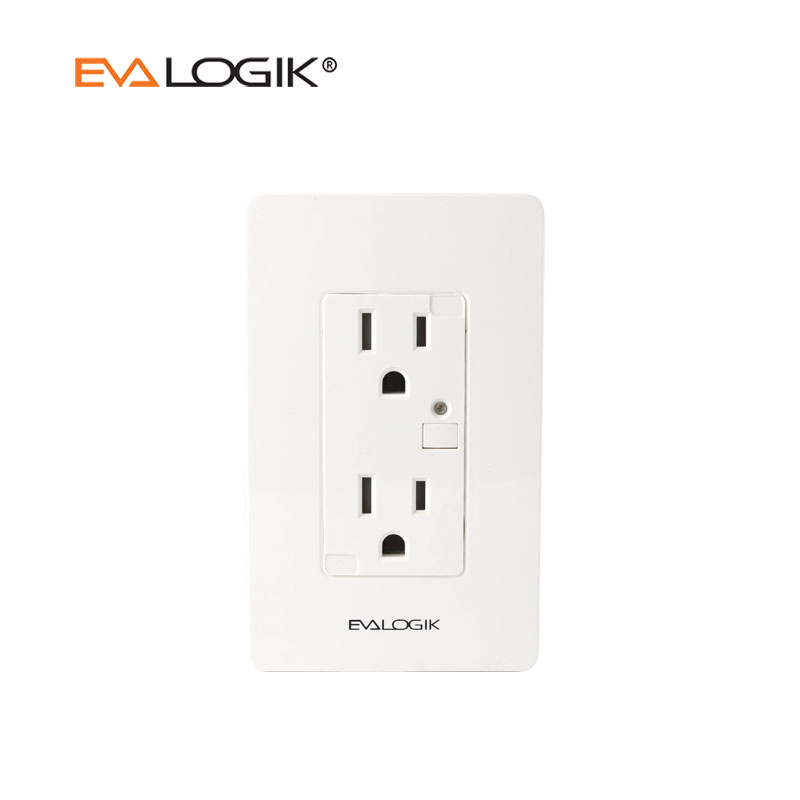

ZW32 Wall Mounted Outlet
This ZW32 Duplex Receptacle is designed to work with other Z-WAVE enabled devices.
Z-WAVE nodes of other types can be Included in the system and will also act as repeaters.
This is useful when the device would otherwise be out of the radio range of the wireless controller. The top outlet is active and the bottom is controlled through Z-wave or through the manual button on the outlet as is typical for a Z-wave outlet.
| Maxload | Incandescent: 600W maximum, 120 VAC |
| | Resistive 15 amps (1800W) maximum, 120 VAC |
| Motor | 1/2 H. P. maximum, 120 VAC |
| Range | Min 30m line of sight |
| Dimensions | 115(L)*70(W)*44(H)mm |
| Net weight | 130g |
| Frequency | - 908.42 MHz |
1. Before installation ensure that the voltage supply is disconnected.

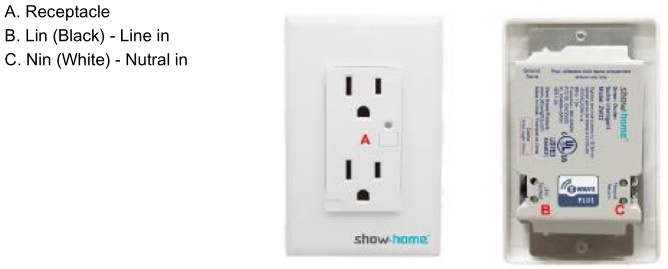

2. Connect ZW32 module as shown on above diagram.
3. Connect the device in accordance with the wiring diagram presented in Wiring diagram. Switch on 120V of the mains voltage.
4. For "Add" in a network: Put the Z-wave interface controller into "Add" mode, and following its instruction to add the ZW32 to your controller. To get in the "Add" mode, the distance between ZW32 module and controller is suggested to be in one meter. Quickly pressing the learn switch of ZW32 three times for 1 second at least & release to be included.
5. For "Remove" from a network: set up the Z-wave interface controller into "Remove" mode, and following its instruction to delete the ZW32 from your controller. Press the learn switch of ZW32 three times for 1 second at least & release to be excluded.
- Make sure that all electric connections and connection cables meet the pertaining regulations and are in conformity with the operating instruction.
- Do not overload electrical outlets or extension cords, fire or electric shocks can be the result.
- Please contact an expert in case you have any doubts about the mode of operation, the safety or connecting the appliances.
- Keep all parts away from young children's reach.
- Do not store this item on wet, very cold or warm places, this can damage the electronic circuit boards.
- Avoid dropping or shocks, this can damage the electronic boards.
- Never replace damaged power cables yourself! In such case, remove them from the net and take the devices to a workshop.
- Wireless system are subject to interference from cordless phones, microwaves, and other wireless devices during installation and operation.
The devices are maintenance-free, so never open them. The guarantee becomes void when you open the appliance. Only clean the outside of the devices with a soft, dry cloth or a brush. Prior to cleaning, remove the devices from all voltage sources.
Do not use any carboxylic cleaning agents or petrol, alcohol or similar. These will attack the surface of devices. Besides, the vapors are hazardous to your health and explosive. Do not use any sharp edged tools, screw drivers, metal brushes or similar for cleaning.
Warranty 1 year
| Prod Model: |
ZW32 |
| Maxload: |
600W (Incandescent), 1800W(Resistive) |
| Range: |
Min 30m Line of Sight |
| Net Weight: |
130g |
| Frequency: |
908.42MHz |
| Grounding: |
Self Grounding |
| Type: |
Without Switch |
| Application: |
Residential/General-Purpose |
| IP Rating: |
IP20 |
| Rated Current: |
15AMP |
| Certification: |
SGS, UL, FCC |

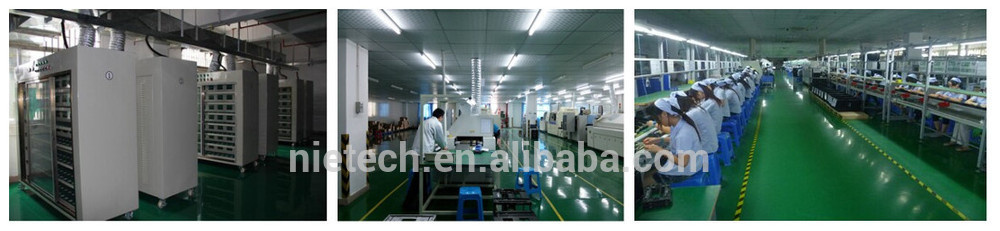

NIE-TECH Co., Ltd founded in 2009, is a Hi-tech manufacturer that specializes in smart-home products' design, development and manufacture.
We own the experienced and innovative R&D team, and has a full range of successful Z-Wave solution for both home and industrial applications. Our wide range of wireless technologies, which earned us great confidence from our customers for their reliability and range performance, help our customers turn their innovative ideas into successful products.
Our ZE300 Evalogik Gateway is the nerve centre of smart home. It allows you to gain access to and control different appliances and devices installed in your home by using your smartphone. ZE300 Evalogik gateway that can be remotely controlled range from lightings, sensors, curtain motors, security cameras and energy control units. All you need to do is configure the Gateway with your home's Wi-Fi network and install the EVALOGIK APP on your smartphone. You can then add and connect to all appliances compatible with the EVALOGIK gateway.
With the aim of "quality first, customer first", our QC team ensures the products are qualified before shipping. Low-cost, short leading time, high quality, and our rigorous working attitude, all of these are helping us to get more orders.
Anyhow, looking forward to cooperating with you as biz partner in any terms.
