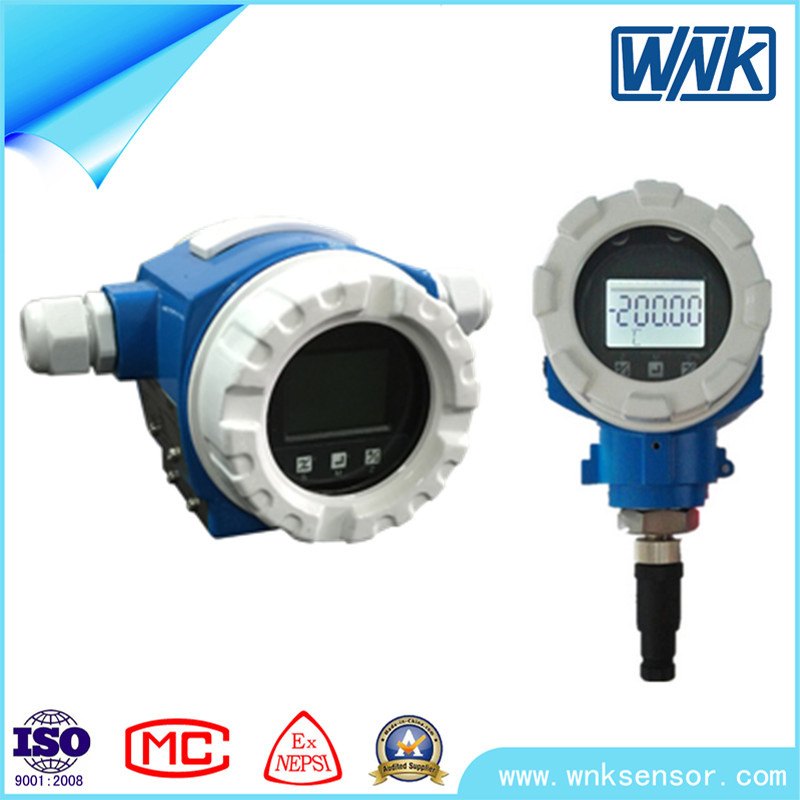

Wall/Pipe Mounted Smart Temperature Transmitter with LCD display WNK6T PROFIBUS-PA smart temperature transmitter is high performance product approved by PROFIBUS Nutzeroganisation e.V from WNK. It is universal input including thermail resister, thermocouple, resistive sensor and millivolt sensor. With double chamber Al 14 housing, it is suited for various harsh industrial application. OEM, ODM& customization services are welcome.
Features - Wall/Pipe Mounted Temperature Transmitter with LCD Display- High accuracy: ±0.1ºC for RTD; ±1ºC for TC, code end accuracy ±2ºC;
- 4~20mA/Hart/Profibus PA output all available;
- Long-term drift<0.1/year;
- Install easily, more flexiable;
- To reduce the overall cost of installation,maintenance and running;
- Self-diagnostics function;
- LCD display, Menu-guided operation
Specification :
| Measuring media | liquid, gas |
| Measuring range | -270~800 ºC (PT100 thermal resistor) |
| 0~1300ºC, (Thermocouple K) |
| Power supply range | 9~45V (9~24V, Ex) |
| Output signal | 4~20mA/Hart/Profibus PA |
| Digital Accuracy | ±0.01ºC, PT100 input |
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC |
| Temperature drift | ±0.05%/10ºCfull scale range |
| 0.1% between-10°C to 60°C |
| Effect of power supply on range | <0.005%/V full-scale range |
| Long term drift | <0.1/year |
| Allowable temperature | Ambient temperature | Storage temperature |
| T4 | Safe operation(T6) |
| -40...85ºC | -40...60ºC | -40...95ºC |
| Protection Class | IP66/67 |
| Relative humidity | ≤98%, condensation allowed |
| Electromagnetic compatibility | Accordance with EN 61 326 |
Company Profile:

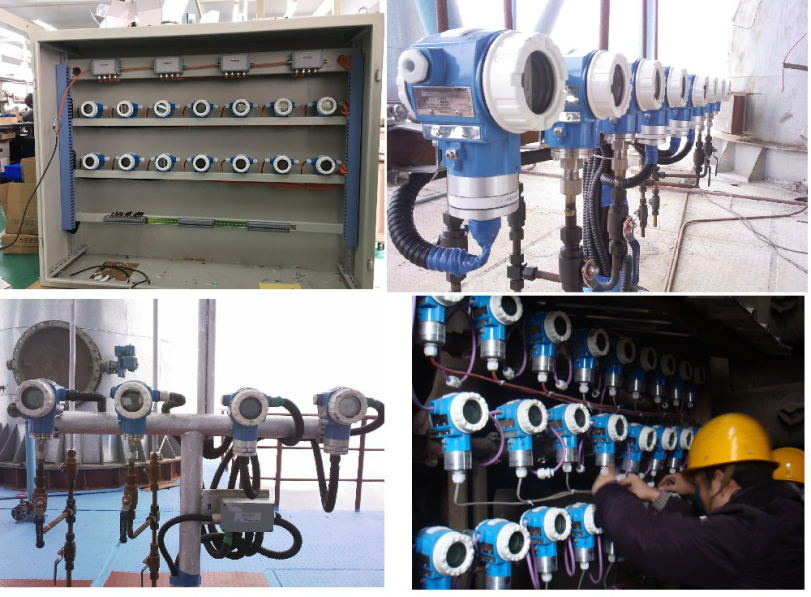

Project Photoes:
Exhibtion Pics of Hefei WNK:
Our Comprehensive Certifications:
FAQ:Q: Are you manufacturer or trading company?A: We are 13-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price. Q: What's your quality control system?A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed. Q: Is there MOQ with your product?A: We have no MOQ limits, 1pc for testing purpose is acceptable. Q: Can we print our logo on the products? Do you provide customized products?A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed. Q: What is the warranty of your products? And after-sales service?A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available. Q: What is lead time of your product?A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
