IP 66/67 Smart 4-20mA Temperature Sensor with Modbus Protocol, LCD Backlight
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |

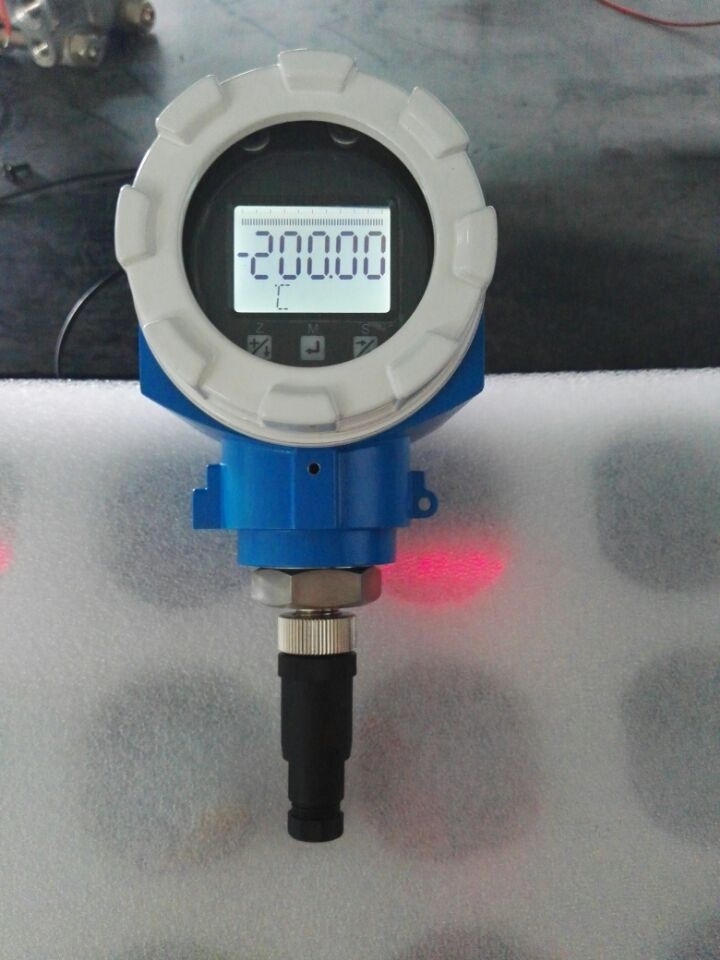

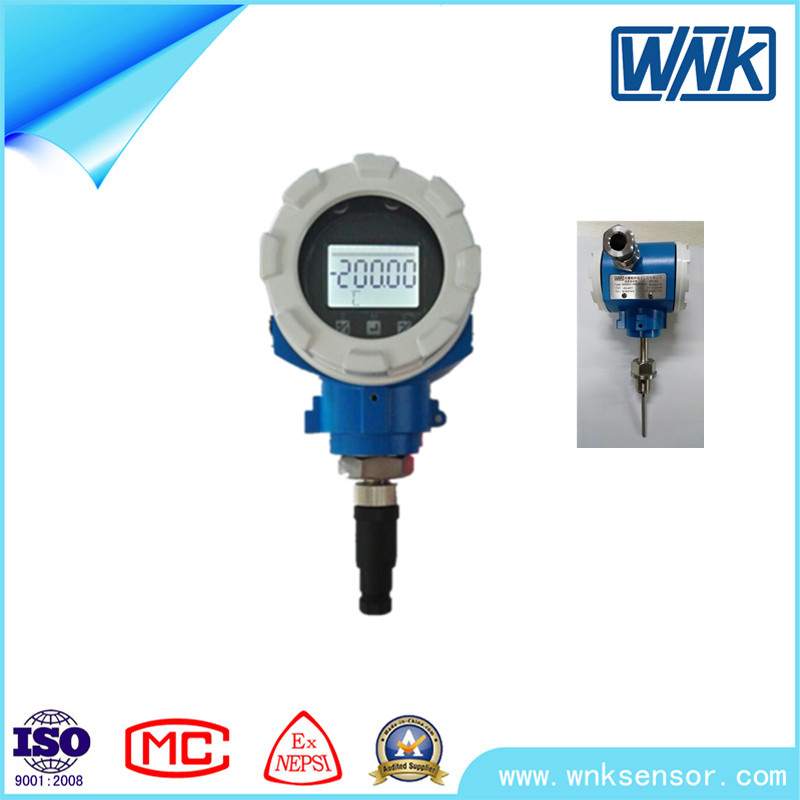

IP 66/67 Smart 4-20mA Temperature Sensor with Modbus Protocol, LCD Backlight
Features - Wall/Pipe Mounted Temperature Transmitter with LCD Display
1. High precision, digital precision up to :±0.01ºC
2. Long-term drift<0.1/year
3. Install easily, more flexiable
4. To reduce the overall cost of installation,maintenance and running.5 Self-diagnostics function
6. LCD display, Menu-guided operation.Specification :| Measuring media | liquid, gas and steam |
| Measuring range | -270~800 ºC (PT100 thermal resistor) |
| 0~1300ºC, (Thermocouple K) |
| Input | Thermocouple, RTD, MV, Resistive sensor |
| Power supply range | 9~45V (9~24V, Ex) |
| Output signal | 4~20mA, Modbus |
| Digital Accuracy | ±0.01ºC, PT100 input |
| Internal cold end compensation error | <0.25ºC±0.1%/10ºC |
| Temperature drift | ±0.05%/10ºCfull scale range |
| 0.1% between-10°C to 60°C |
| Effect of power supply on range | <0.005%/V full-scale range |
| Long term drift | <0.1/year |
| Ambient temperature | Ambient temperature | Storage temperature |
| T4 | Safe operation(T6) |
| -40...85ºC | -40...60ºC | -40...95ºC |
| Protection Class | IP66/67 |
| Relative humidity | ≤98%, condensation allowed |
| Electromagnetic compatibility | Accordance with EN 61 326 |
Why Choose us?
1. We are professional manufacturer with own R&D and sales team, with more than 13 years producing experience in transmitters & sensors.
2. We have strict quality control system, each set product we do temperature compensation and aging test before shipment, so the quality is guaranteed.

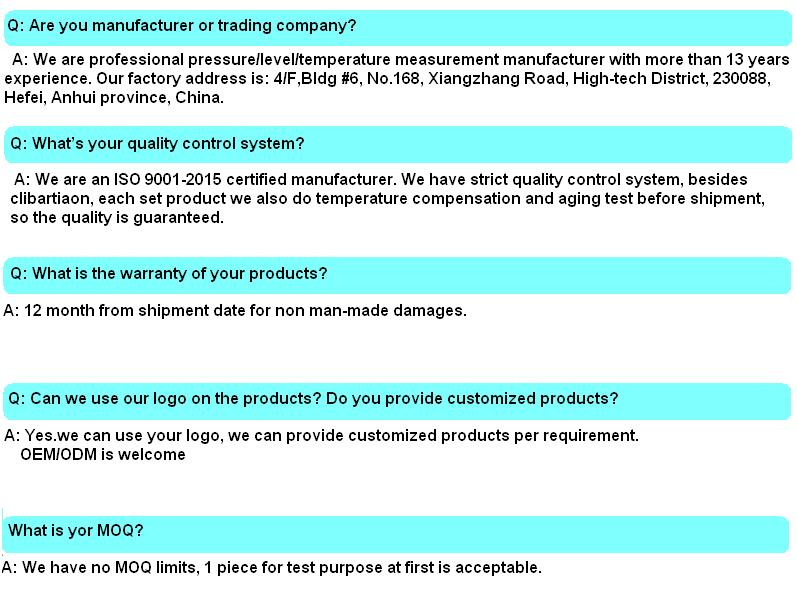

FAQ
Customer specific requirement /ODM/OEM is welcome.
| Prod Model: |
WNK-4S |
| Output Signal: |
4~20m, 4~20mA/Hart, Profibus-PA |
| Housing Material: |
Aluminum Alloy |
| Stability: |
<0.1/Year |
| Temperature Drift: |
0.05% |
| Measuring Medium: |
Gas, Steam, Liquid |
| Accuracy Grade: |
0.075 |
Founded in 2004, ANHUI WNK ELECTRONIC ENGINEERING Co., Ltd is a hi-tech company specializing in different kinds of technologically-advanced and good quality sensor, transmitter and automation instrument. We devote to developing, manufacturing and selling of automation control system, providing our customers comprehensive fieldbus technical solutions and factory informatization construction.
Our main products include iEOS industrial cloud data base developing plate form; Industrial Internet of Things; WNK-WMS industrial wireless measurement system; Onsite measurement instruments like temperature, pressure, flow, level sensor and transmitter etc, widely applied in Petrochemical, Chemical, Power, Steel and Cement.
WNK is the third company in China developed PROFIBUS transmitters. WNK series PROFIBUS transmitter is the fourth in China certificated by international PROFIBUS organization, and Chinese first that completely having proprietary intellectual property rights. WNK PROFIBUS-PA temperature transmitters filled Chinese blank technology in the field.
With strict, scientific management system, WNK has been certificated to conform to standard GB/T 19001-2008 / ISO 9001: 2008 by China CLASSIFICATION SOCIETY CERTIFICATION COMPANY. WNK commits to developing of new products and technical innovation. With continuously effort in advanced technology of automation control system, WNK has been undertaking some innovation projects of MST (Ministry of Science and Technology), and has been honored as promising enterprise of "Giant of Technology "in Hefei Hi-tech Industry Development Zone.
As Chinese first and unique qualified production enterprise of 0.075% measurement in Anhui, WNK brand was awarded Anhui Famous Brand.
