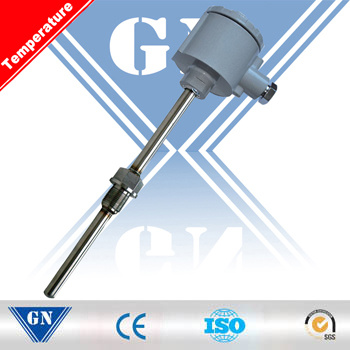

Explosion-Proof Thermal Resistance with Threaded Connector(Cx

Prod Model:	CX-WZ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Temperature Range:	-200-500c
Fixing:	Thread/Flange/None
Connection:	Terminal Box/Compensation Cable/Plug
Probe Length:	Custom
Thermocouple Wire Element:	Simplex/Duplex
Graduation:	PT100,Cu50,Cu100
Pakage:	Wooden Box
Thermalwell Material:	Ss304,316,Inconel601
Accuracy:	5%

Product Description

Explosion-proof Thermal Resistance with Threaded Connector
(CX-WZ)

Brief introduction:

It is usually connected with display meter, recording meter and computer ect.
To directly measure the temperature of liquid, vaper, gas and solid surface
ranging from -200 to 500°C during various production processes.

How to choose?
1.Diameter and length:Can be customized as customer's requirements
2.Junction box: water-proof type, splash-proof type, anti-explosion type, connector type,import type.
3.Fixed device: flange/none/screw.
4.Temperature Range: -200-500C centigrade .
5.Terminal blocks: terminals box


Selection table:

Type	Graduation	Measuring Range °C	Thermal Response Time	Explosion-proof Class	Specification
					d	L
WZP-240	Pt100	-200~500	<90S	dllBT4 dllCT5 dllCT6 iallCT6	Φ16	300×50  350×00   400×50   450×00   500×50   550×00   650×00   600×50 1150×000  1650×500 2150×000
WZP2-240
WZP-240G			<24S
WZP2-240G
WZP-241			<45S		Φ12
WZP2-241
WZP-241G			<24S
WZP2-241G
WZC-240	Cu50 Cu100	-50~100	<120S		Φ16
WZC-240G			<90S
WZC-241			<120S		Φ12
WZC-241G			<90S

Class-A thermal resistance should be ordered according to agreement
Protection tube material is 1Cr18Ni9Ti,and we also produce the resistance with protection tube of other material.
Nominal Pressure≤10MPa

Model Type	Thread Specification
	Code	M
WZP-240		M27×2
WZP-240A	A	G3/4
WZP-240C	C	NPT3/4
WZP-240G		M27×2
WZP-240GA	A	G3/4
WZP-240GC	C	NPT3/4
