F Crimp Connector for Rg174 / Rg316 Cable

Name: F Crimp Connector for Rg174 / Rg316 Cable
Brand: all-electronics-online.com
SKU: 815444795
Availability: InStock
Rating: 4.4 (50 reviews)

Price:	US $ 0.05-0.15/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

F Type RF Male Connector Twist on RG59/RG6 Connector

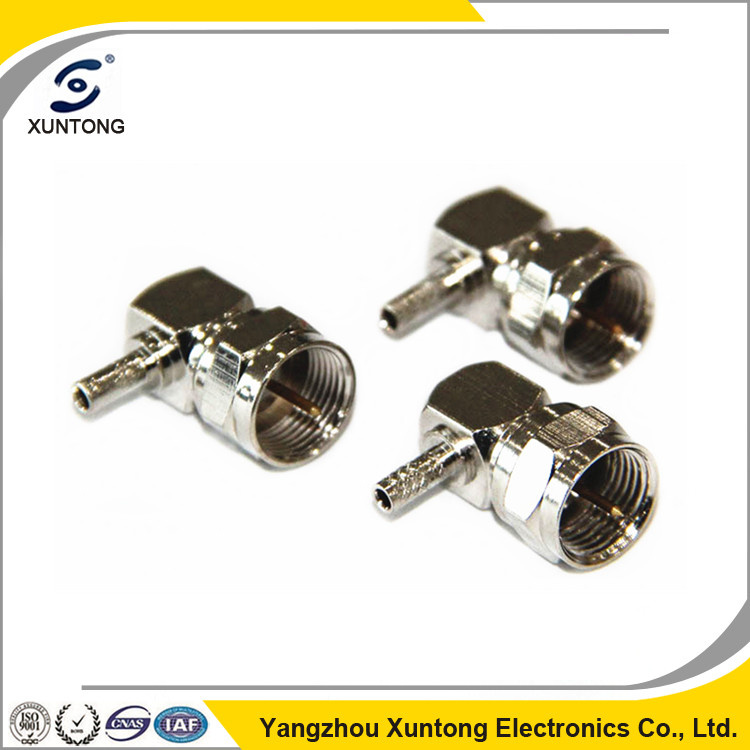

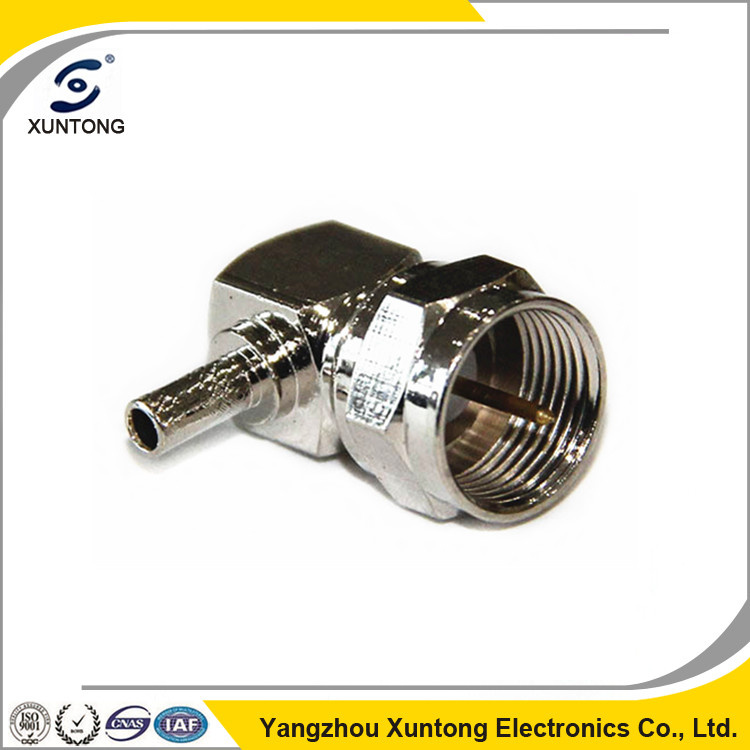

PRODUCT PICTURE

PRODUCT SPECIFICATION

F
Characteristic impedance	75Ω	Temperature range	-65~+165°C
Frequency range	DC~1GHz	Working Voltage	≤170V
Center conductor retention force	≥0.2 N	Vibration	100m/s2 (10~500Hz)
Conductor resistance	Inner ≤ 10 mΩ	Mating cycles	≥500
Conductor resistance	Outer ≤ 5 mΩ	Withstanding voltage	≤500V rms
Voltage Standing Wave Ratio	Straight	≤1.20
Voltage Standing Wave Ratio	Right angle	≤1.30
	Parts Name	Material	Plating
Material And Plating	Body	Brass	Nickel plated
	Pin contact	Brass	Gold or silver plated
	Resilient contact	Tin bronze	Gold or silver plated
	Insulators	PTFE	-
	Gaskets	Silicon rubber	-
	Crimp ferrules	Copper alloy	Nickel or gold plated
Applicable standard	IEC 60169-24

OUR SERVICE

1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.

FAQ

A : Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.

B : How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.

C : I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.

Prod Model:	XT-F 000
Item Name:	F Crimp Connector for Rg174 / Rg316 Cable
Impedence:	75 Ohm
Working Voltage:	Max. 170V
Frequency Range:	DC ~ 1GHz
Vibration:	100m/S2 (10~500Hz)
Mating Cycles:	Min. 500
Coaxial Cable:	Rg58, Rg59, RG6
Applicable Standard:	IEC 60169-24
